BL2 Horizontal Axel Windlass
$2,492.60 – $3,593.70
Description

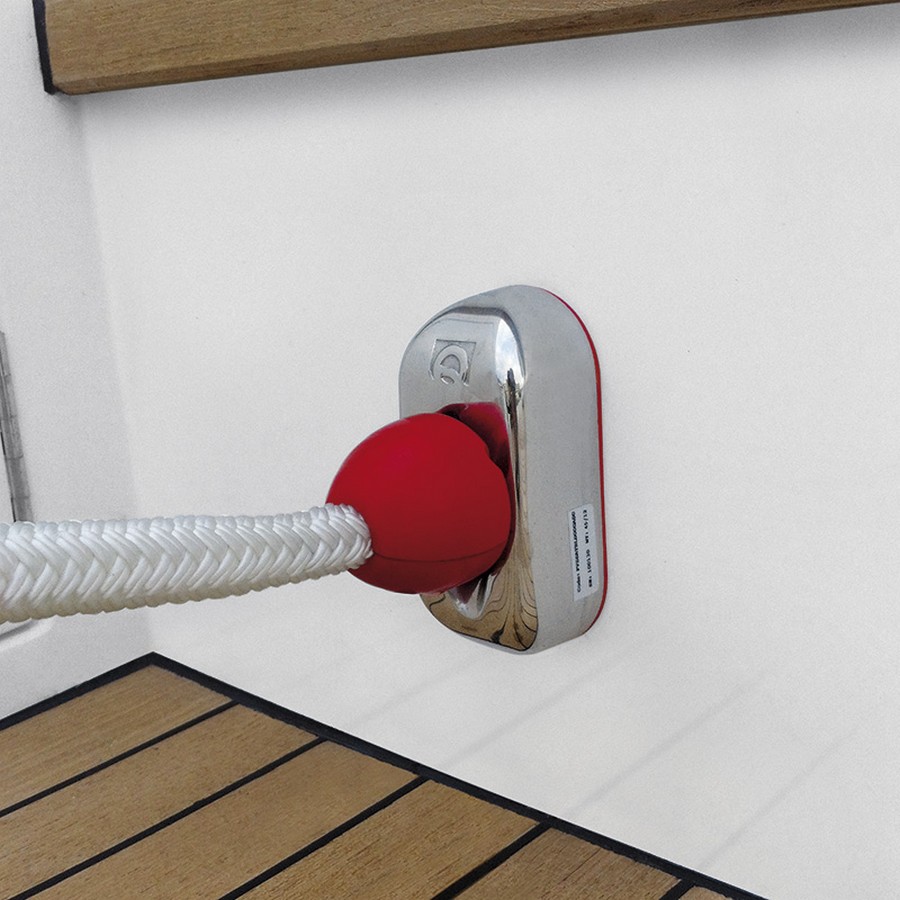

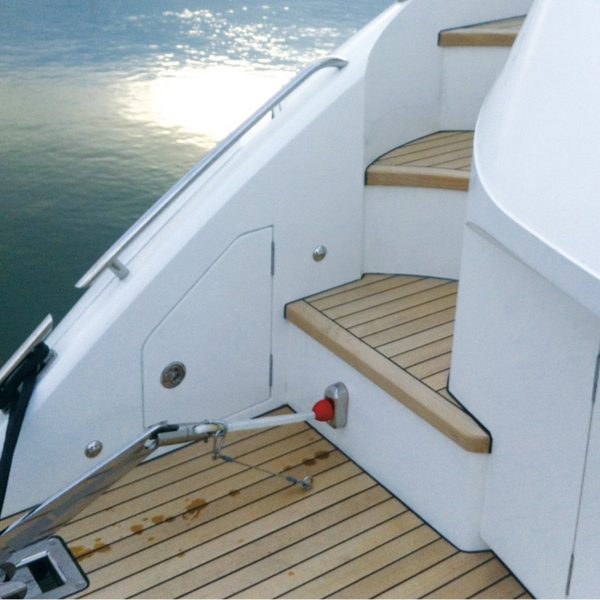

BL2 Horizontal Axel Windlass FF is the ideal rope only windlass to be installed at the stern thanks to the special mounting kit.
However, it also adapts perfectly to any requirement and allows several combinations.

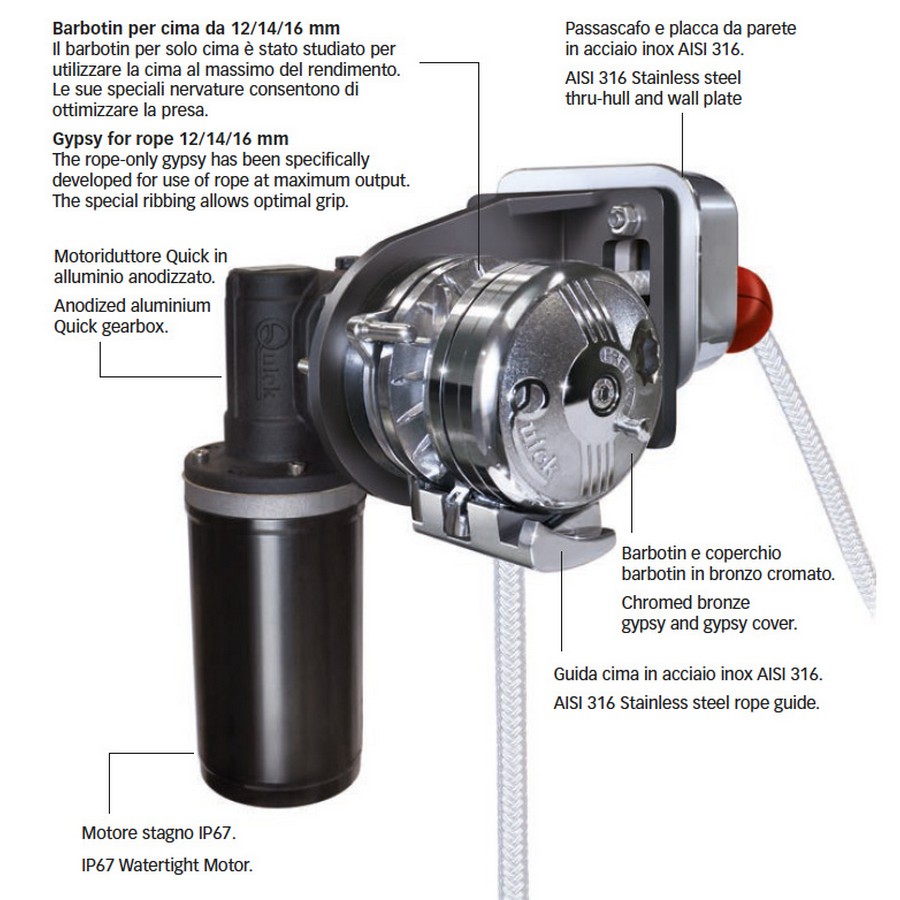

Features include Rope only windlass, Maximum flexibility of installation, AISI 316 Stainless steel and chromed bronze, Automatic system of anchor-rode free-fall, Supplied with rope guide device, Watertight motor (IP67), Anodized aluminum gearbox.
Additional information
| Weight | N/A |
|---|---|
| Dimensions | 17 × 17 × 11 in |
| Model | X Right Gypsy, Y Left Gypsy |
| Wattage | 600W, 900W, 1200W |
| Voltage | 12V |
Specifications
| Model | BALDER FF 600 X | BALDER FF 900 X | BALDER FF 1200 X/Y | |||
| Motor Output | 600 W | 900 W | 1200 W | |||
| Motor Supply voltage | 12 V | 24 V | 12 V | 24 V | 12 V | 24 V |
| Maximum working load | 200 Kg / 441 lb | 320 Kg / 705 lb | 420 Kg/ 926 lbs | |||
| Maximum speed | 25-28 m/min | 22-25 m/min | 28-30 m/min | |||
| 82-91 ft/min | 72-82 ft/min | 91-98 ft/min | ||||
| Weight | 9,0 Kg / 19.8 lb | 14,6 Kg / 32.2 lb | 19,2 Kg / 42.3 lb | |||
