SF Midi Windlass


SKU: STRESS FREE MIDI - Categories: , Tag:


The SF Midi windlass electric boat anchor winch is just like having an extra crew member tending the anchor for you raising and lowering your anchor quickly, safely and effortlessly. There is no need to tie off your anchor rope, no racing down to the bow to drop or raise the anchor. No tangled rope and chain in the anchor well. No strained back or frustrated amateur crew. No rushing around the boat to move your mooring. Simply drive the boat to where you want to fish, push a button and the anchor is lowered quickly without fuss or bother. It is even automatically secured. You can lower and retrieve your anchor rope using our Australian made electric anchor winches at a rate between 80 and 90 feet per minute! The revolutionary Stress Free Marine electric drum anchor winch is available in a range of capacities, and there’s one designed just to fit into your boat.

Additional information

Weight N/A
Dimensions 17 × 17 × 11 in

Midi, Midi Free Fall






Midi (light-medium) Stress Free
The Midi is manufactured to suit boats 6 – 7 meters plus where the design of the anchor well is too small for the Maxi.
1400W motor
All 316 marine grade stainless steel
Baseplate 6mm marine grade stainless steel and pressed
Drum capacity equal to the Maxi
The overall height the same as the Mini
The diameter of the drum 300mm
Maximum lifting capacity 250 kilos (when the drum diameter is small)
Holding capacity at anchor is 1800 kilos
Rated to 135 amps
Normal running the Stress-Free will use 25 – 30 amps and under load up to 55 amps

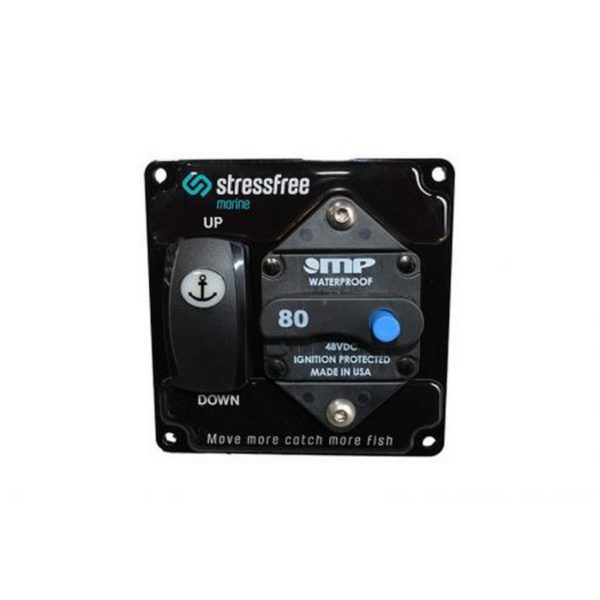

To protect the motor, the   circuit breaker will trip out if there is a power overload
Recommend dual batteries with   the battery switch on BOTH
Can be deck mounted
Drum Capacity:
85 meters of 10mm nylon plus 8   meters of 8mm short link chain OR
110 meters of 8mm nylon plus 8   meters of 8mm short link chain OR
200 meters of 6mm double braid   eye spliced to 5 meters of 8mm nylon plus 8 meters of 8mm short link chain
N.B.   Additional option to have a heavier base plate with 50 series gearbox
