AL3 Vertical Windlass
$2,728.55 – $4,446.75
| Aleph 700 W | 7 – 10 m | 23 – 33 ft |
| Aleph 1000 W | 10 – 14 m | 33 – 46 ft |
| Aleph 1500 W | 12 – 15 m | 39 – 49 ft |
The indication may vary according to the boat type and the anchor-rode type
Description

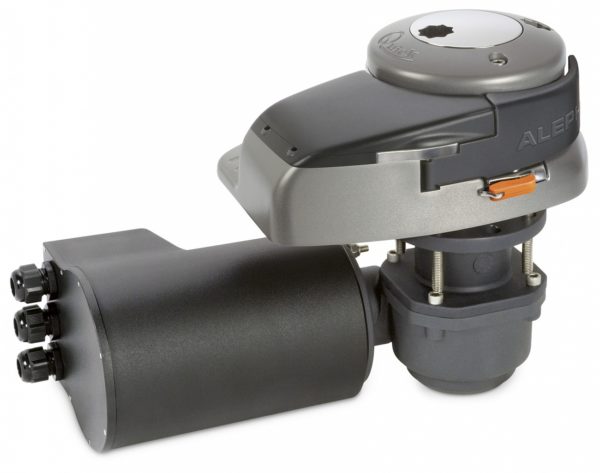

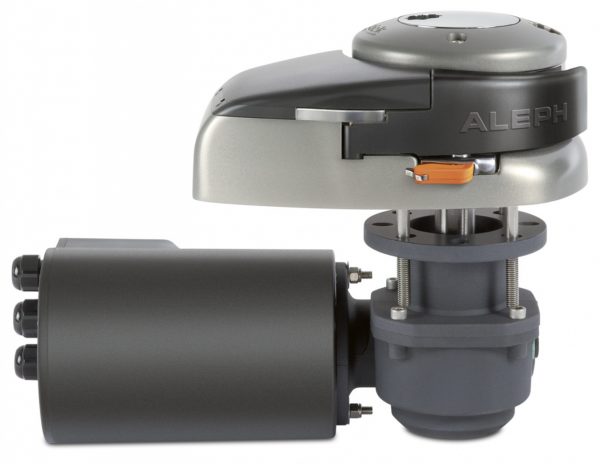

The AL3 is a vertical application windlass perfect for boats with limited deck space. This unit is composed of anodized aluminum in hard oxide which is a durable element when dealing with harsh marine environments. It comes in different variations such as with or without the drum capstan for rope retrieval as well as various gypsy sizes for rope and chain retrieval. Equipped with an emergency manual lift system you can easily retrieve your anchor during instances when you may lose battery power on your boat. Additional features include an IP67 watertight motor, anodized aluminum gearbox, and an easy to open inspection lid. The package is sold complete with the windlass, solenoid unit, clutch handle and mounting hardware.
| GYPSY | 8 mm – 5/16″ | 10 mm – 3/8″ | |||||
| CHAIN | 8 mm | 8 mm | 5/16″ | 5/16″ | 10 mm | 3/8″ | |
| DIN 766 | ISO | G4 | BBB | ISO | G4 | ||
| ROPE | 1/2″ (12,7 mm) – 9/16″ (14,2 mm) – 5/8″ (15,8 mm) | 5/8″ (15,8 mm) | |||||
Supplied accessories standard
| MODELS | T6315-12 | T6315-24 |
| 700 W | 12 V | 12 V |
| 1000 W | 12 V | 24 V |
| 1500 W | 12 V | 24 V |
Additional information
| Weight | N/A |
|---|---|
| Dimensions | 17 × 17 × 11 in |
| Drum | |
| Gypsy Size | |
| Series | |
| Wattage | 700W, 1000W, 1500W |
| Voltage | 12V, 24V |
Specifications
|
Standard version
|
Aleph 700 / 700 D | Aleph 1000 / 1000 D | Aleph 1500 / 1500 D | |||
| Motor power | 700 W | 1000 W | 1500 W | |||
| Motor supply voltage | 12 V | 24 V | 12 V | 24 V | 12 V | 24 V |
| Maximum pull | 1874 lb | 2204 lb | 2425 lb | |||
| Maximum working load | 551 lb | 661 lb | 816 lb | 992 lb | 1037 lb | 1191 lb |
| Working load | 176 lb | 220 lb | 264 lb | 331 lb | 353 lb | 397 lb |
| Current absorption @ working load (1) | 90 A | 55 A | 140 A | 80 A | 155 A | 85 A |
| Maximum chain speed (2) | 75 ft/min | 83 ft/min | 130 ft/min | 135 ft/min | 96 ft/min | 98 ft/min |
| Maximum chain speed @ working load (2) | 38 ft/min | 47 ft/min | 67 ft/min | 71 ft/min | 54 ft/min | 63 ft/min |
| Weight – Aleph – [without drum] | 37 lb | 39 lb | 46 lb | |||
| Weight – Aleph D – [with drum] | 40 lb | 42 lb | 50 lb | |||
