PTR Rope Only Windlass

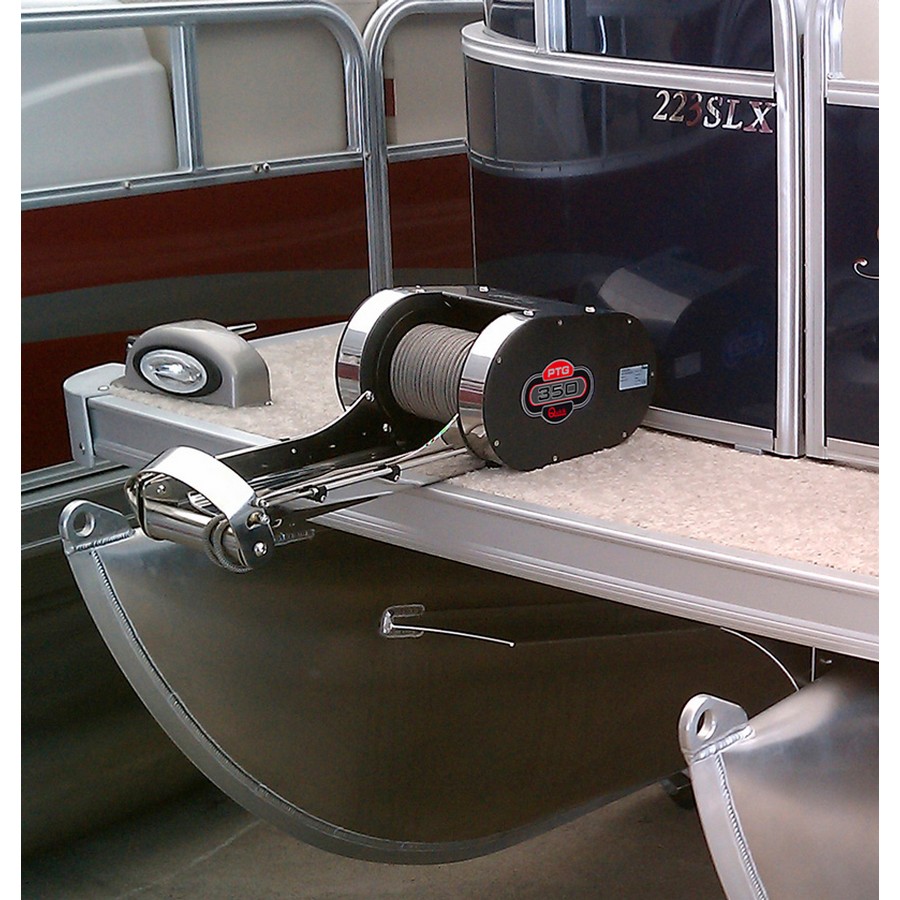

The models of the PT series are special electrical capstans designed to weigh anchor on board of pontoon or boats with little space available. It can be easily installed on the deck. PT models can also be used as fishing capstans or to lift the tender onboard yachts. The roller can retrieve 6 mm rope, up to 30 meters long. The PT model is available in the windlass version, complete with bow-roller on request, or in a tender-recovery version, complete with reel for flat straps with snap-hook. Features include the Windlasses with rope-roll, AISI 316 stainless steel, and anodized aluminum, and IP66 watertight motor.

For boat from 6 to 12 meters (20 – 39 ft)

Additional information

Weight N/A
Dimensions 2 × 2 × 2 in
Bow Roller

Anodized Aluminum, Stainless Steel


Standard version PTR 350
Motor power 150 W
Motor supply voltage 12 V
Maximum pull 260 Kg / 573 lb
Maximum working load 100 Kg / 220 lb
Working load 40 Kg / 88 lb
Current absorption @ working load (1) 13 A
Maximum chain speed (2) 20,8 m/min – 68.2 ft/min
       Maximum chain speed @ working load (2)                        19,3 m/min – 63.3 ft7min
Weight 10 Kg / 22 lb
