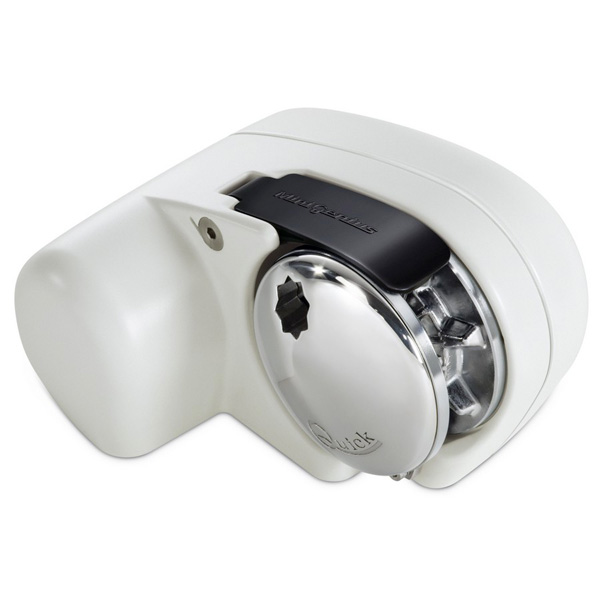

GP2 500 Horizontal Windlass

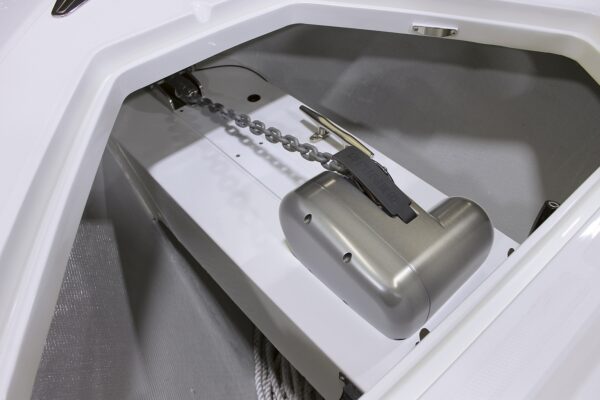

The GP2 500 is a Horizontal windlass application windlass perfect for boats for limited space in the anchor locker. This unit comes equipped with an enclosed motor and epicyclical gearbox. The casing is composed of plastic composite material for the 150W unit.. This unit also has a manual free fall capability for quick anchoring. The unit is sold complete with the windlass, solenoid unit, clutch handle, mounting hardware, and users manual.
|GP2 500||150 W||6 – 7 m||20 – 23 ft|
|GP2 1200||250 W||6 – 7 m||20 – 23 ft|
|GP2 1500||500 W||6 – 9 m||20 – 29 ft|
|GP2 2000||800 W||8 – 12 m||26 – 39 ft|
|GP2 500||GP2 1200FF||GP2 1500-2000||GP2 1500-2000D|
|Available only in
composite material and without drum.
|Available with (D) or without drum and in Free Fall (FF) version.
Windlasses are equipped with an epicyclical gearbox that provides much higher efficiency (+40% compared to equivalent traditional gearboxes).
|GYPSY||6 mm||7 mm – 1/4″||8 mm||5/16″|
|CHAIN||6 mm||6 mm||7 mm||7 mm||1/4″||1/4″||8 mm||8 mm||5/16″|
|DIN 766||ISO||DIN 766||ISO||G4||BBB||DIN 766||ISO||G4|
|ROPE||1/2″ (12,7 mm)|
The values in the table refer to a three-strand polyester rope with a rope/chain splice manufactured with the QuickÂ® system.
|Dimensions||17 × 17 × 11 in|
|Motor power||150 W|
|Motor supply voltage||12 V|
|Maximum pull||485 lb|
|Maximum working load||154 lb|
|Working load||77 lb|
|Current absorption @ working load (1)||29 A|
|Maximum chain speed (2)||127 ft/min|
|Maximum chain speed @ working load (2)||93 ft/min|
|Weight – Mini Genius||13 lb|
|Weight – Mini Genius with drum||n/a|
|Weight – Mini Genius free fall||n/a|
