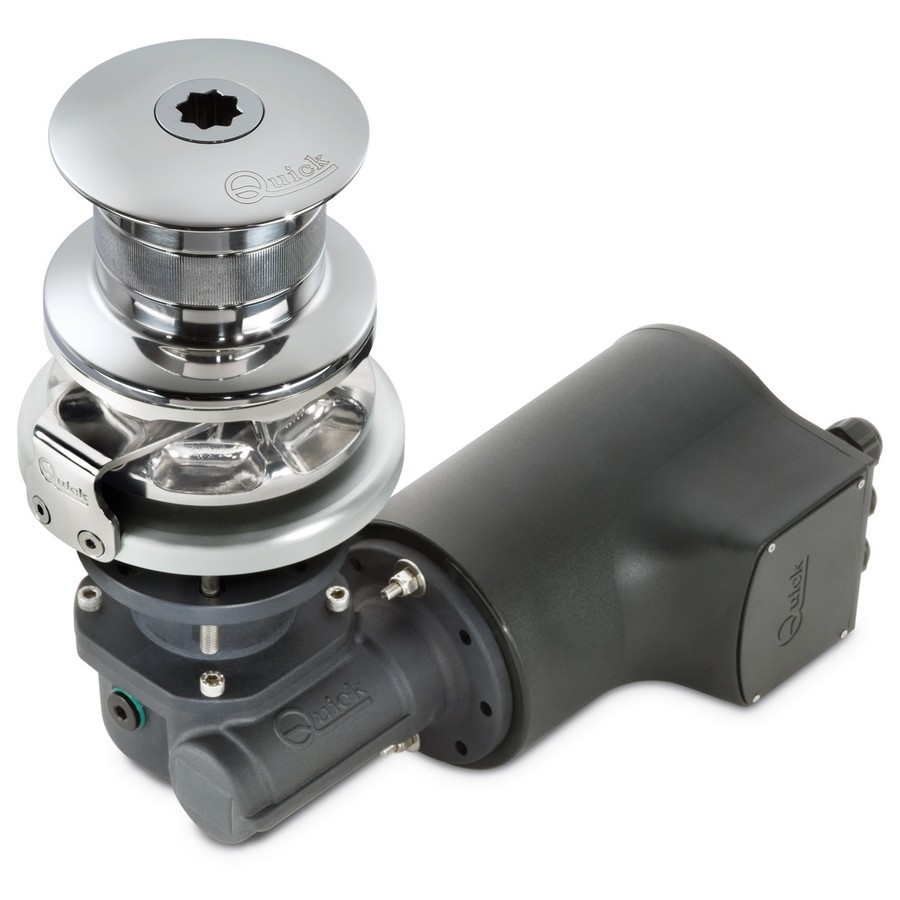

R3 Vertical Windlass with Drum
$2,390.00 – $3,450.00
Description
The Rider R3 is a vertical application windlass with drum perfect for boats with limited deck space. This unit is composed of anodized aluminum which is a durable element when dealing with harsh marine environments. This unit comes in different variations such as with or without the drum capstan for rope retrieval and various gypsy sizes for chain retrieval. Additional features include an IP67 watertight motor, anodized aluminum gearbox, and chain stopper. This unit is sold complete with the windlass, solenoid unit, clutch handle and mounting hardware.
| Rider | 700 W | 7 – 10 m | 23 – 33 ft |
| Rider | 1000 W | 10 – 13 m | 33 – 43 ft |
| Rider | 1400 W | 12 – 15 m | 39 – 49 ft |
| GYPSY | 8 mm – 5/16″” | 10 mm – 3/8″ | |||||
| CHAIN | 8 mm | 8 mm | 5/16″ | 5/16″ | 10 mm | 3/8″ | |
| DIN 766 | ISO | G4 | BBB | ISO (P.30) | G4 | ||
Additional information
| Weight | N/A |
|---|---|
| Dimensions | 17 × 17 × 11 in |
| Drum | |
| Gypsy Size | |
| Series | |
| Wattage | 700W, 1000W, 1400W |
| Voltage | 12V, 24V |
