DV5 X Vertical Windlass
$5,550.00 – $8,265.00
Description
The Dave DV5 X is a vertical application windlass perfect for boats with limited deck space. This unit is composed of AISI 316 stainless steel which is a durable element when dealing with harsh marine environments. This unit comes in different variations such as with or without the drum capstan for rope retrieval, left and right side chain entry as well as various gypsy sizes for rope and chain retrieval. Equipped with an emergency manual lift system you can easily retrieve your anchor during instances when you may lose battery power on your boat. Additional features include an IP67 watertight motor, anodized aluminum gearbox, and an easy to open inspection lid. DV5 X Vertical windlass is sold complete with the windlass, solenoid unit, clutch handle and mounting hardware.
| Dave | 1700 W | DC | 12 – 16 m | 39 – 52 ft |
| Dave | 2000 W | DC | 16 – 20 m | 52 – 66 ft |
| Dave | 2300 W | DC | 20 – 24 m | 66 – 79 ft |
| Dave | 3000 W | DC | 20 – 24 m | 66 – 79 ft |
| Dave | 3000 W | AC | 15 – 25 m | 49 – 82 ft |
| Dave | Hydro | 15 – 25 m | 49 – 82 ft |
The indication may vary according to the boat type and the anchor-rode type
| GYPSY | 10 mm – 3/8″ | 12/13 mm | 14 mm | |||||||
| CHAIN | 10 mm | 10 mm | 3/8″ | 3/8″ | 13 mm | 12 mm | 7/16″ | 14 mm | 14 mm | 1/2″ |
| DIN 766 | ISO | G4 | BBB | DIN 766 | ISO | G4 | DIN 766 | ISO | G4 | |
| ROPE | 3/4″ (19 mm) | 3/4″ (19 mm) | 3/4″ (19 mm) | |||||||
Additional information
| Weight | N/A |
|---|---|
| Dimensions | 17 × 17 × 11 in |
| Drum | |
| Gypsy Size | |
| Series | |
| Wattage | 1700W, 2000W, 2300W, 3000W |
| Voltage | 12V, 24V |
Specifications
|
Standard version
|

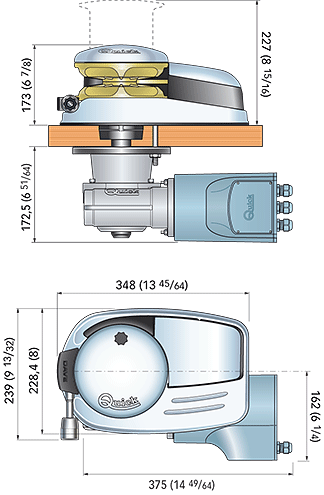

Dave 1700 / 1700 D |
Dave 2000 / 2000 D
|

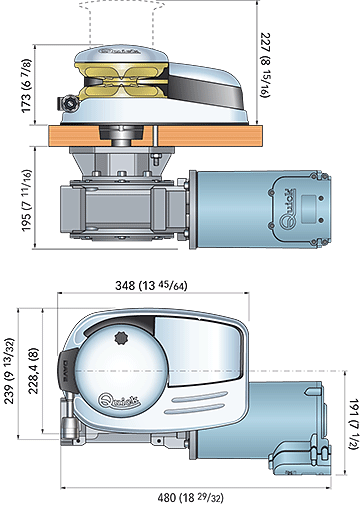

Dave 2300 / 2300 D | Dave 3000 / 3000 D | |
| Motor power | 1700 W | 2000 W | 2300 W | 3000 W | |
| Motor supply voltage | 12 V | 24 V | 24 V | 24 V | 24 V |
| Maximum pull | 2425 lb | 2646 lb | 2778 lb | 5291 lb | 6834 lb |
| Maximum working load | 1036 lb | 1257lb | 1563 lb | 1874 lb | 2646 lb |
| Working load | 342 lb | 419 lb | 551 lb | 628 lb | 82 lb |
| Current absorption @ working load (1) | 175 A | 100 A | 115 A | 120 A | 145 A |
| Maximum chain speed (2) | 119 ft/min | 126 ft/min | 135 ft/min | 98 ft/min | 128 ft/min |
| Maximum chain speed @ working load (2) | 38 ft/min | 69 ft/min | 73 ft/min | 76 ft/min | 63 ft/min |
| Weight – Dave – [without drum] | 74 lb | 74 lb | 86 lb | 103 lb | 135 lb |
| Weight – Dave D – [with drum] | 81 lb | 81 lb | 94 lb | 119 lb | 142 lb |
