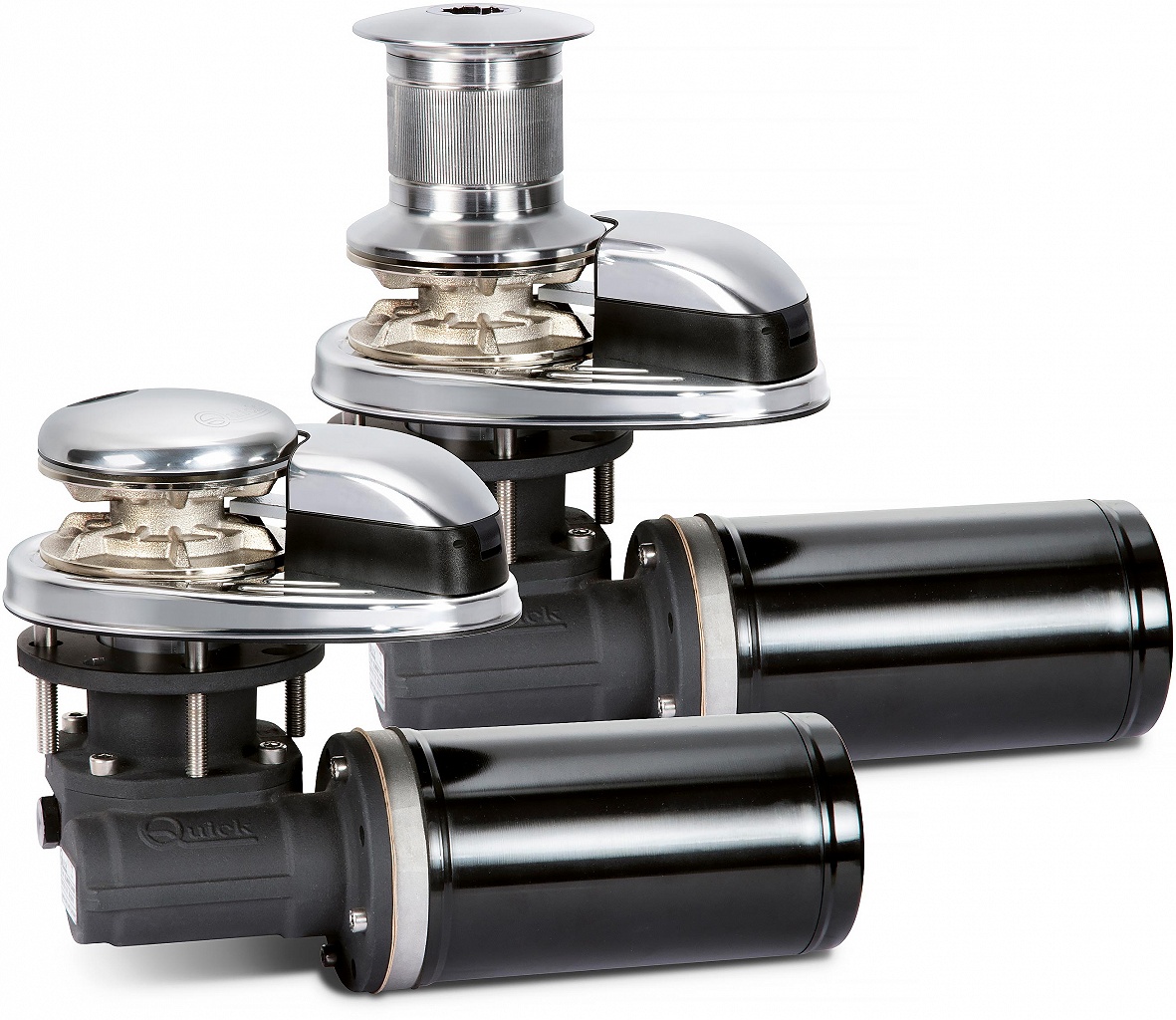

DP1 Vertical Windlass
DP1 Low Profile Vertical WIndlass
DP1 Low Profile Vertical Windlass
DP1 Vertical Windlass

DP1 Vertical Windlass

$1,729.06 – $1,833.15

FOR BOATS FROM 5 TO 9 METERS (16 – 29 FT)
DP1 300 W 12V 5 – 7,5 m 16 – 25 ft
DP1 500 W 12V 5 – 8,5 m 16 – 28 ft
DP1 500 W 24V 5 – 8,5 m 16 – 28 ft
DP1 500 W HS 12V 5 – 7,5 m 16 – 25 ft
DP1 500 W HS 24V 5 – 8,5 m 16 – 28 ft

The indication may vary according to the boat type and the anchor-rode type

SKU: DP1 - Categories: , Tags: ,

Description

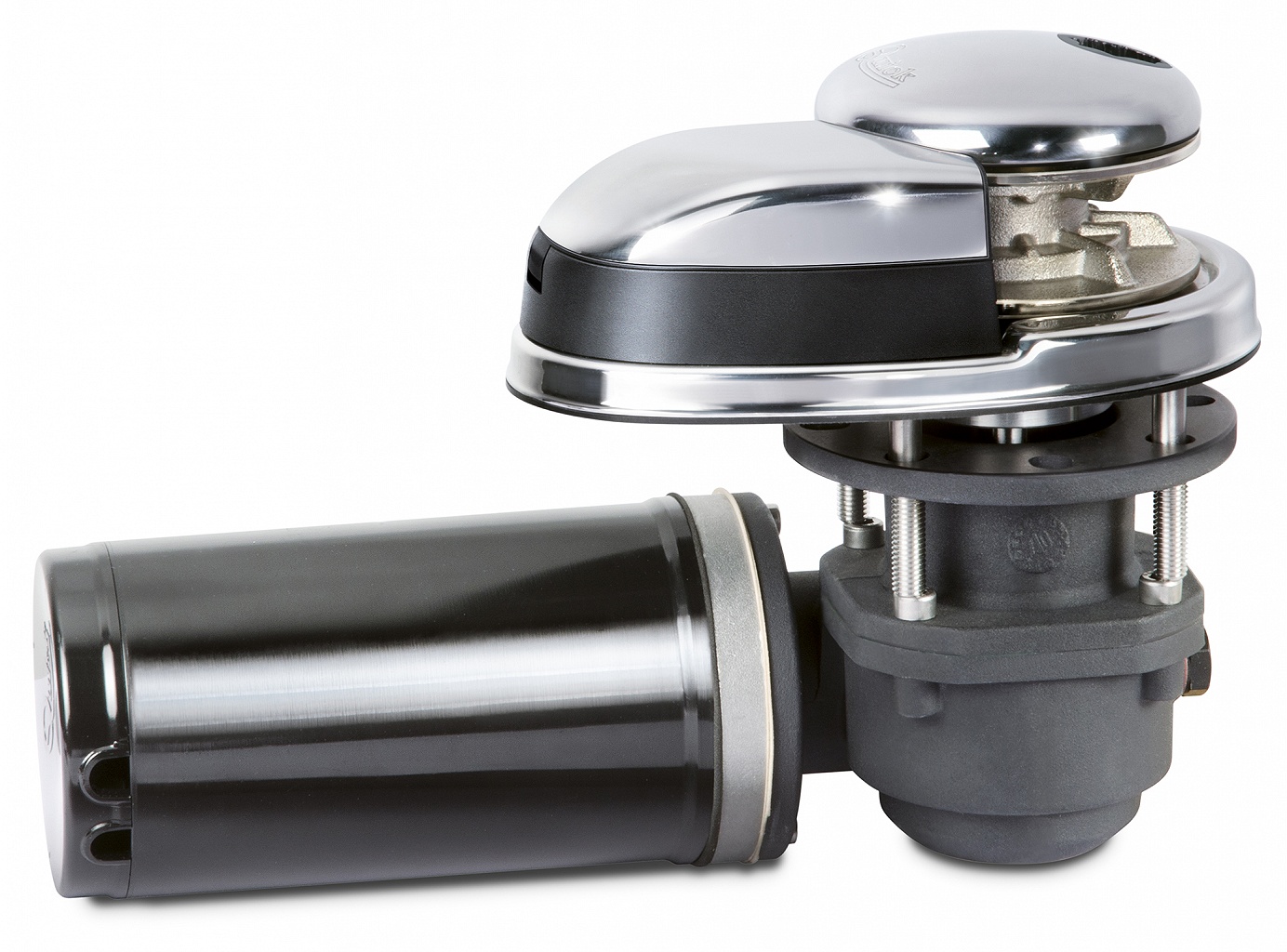

The DP1 is a vertical application windlass perfect for boats with limited deck space. This unit is composed of AISI 316 stainless steel which is a durable element when dealing with harsh marine environments. It is a chain only unit. Additional features include an IP67 watertight motor, anodized aluminum gearbox, and inspection lid. The package is sold complete with the windlass, solenoid unit, clutch handle and mounting hardware.

GYPSY 6 mm 1/4″
CHAIN 6 mm 6 mm 1/4″
DIN 766 ISO BBB

The values in the table refer to a three-strand polyester rope with a rope/chain splice manufactured with the Quick® system.

Supplied accessories standard

Solenoid Units
MODELS T6415-12 T6415-24
300 W 12 V
500 W 12 V 24 V
500 W HiSpeed 12 V 24 V

Additional information

Weight N/A
Dimensions 17 × 17 × 11 in
Drum

Gypsy Size

,

Series

Wattage

300W, 500W
Voltage

12V, 24V

Specifications



Standard version
 DP1 300 / 300 D DP1 500 / 500 D
Motor power 300 W 500 W
Motor supply voltage 12 V 12 V 24 V
Maximum pull 815.7 lb 1455 lb
Maximum working load 264.5 lb 440.9 lb 485 lb
Working load 88.2 Kg 143.3 lb 154.3 lb
Current absorption @ working load (1) 60 A 80 A 40 A
Maximum chain speed (2) 86.3 ft/min 82.5 ft/min 82.5 ft/min
Maximum chain speed @ working load (2) 73.8 ft/min 60 ft/min 63.5 ft/min
Weight – DP1 – [without drum] 16.7 lb 16.7 lb
Weight – DP1 – [with drum] 18.5 lb 18.5 lb
