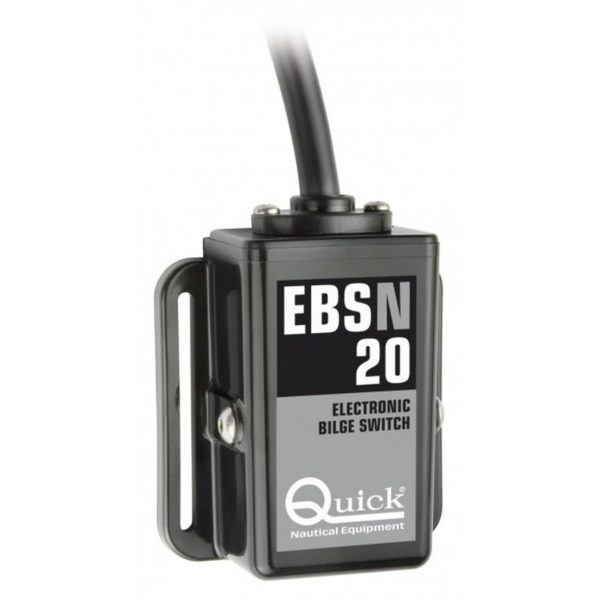

EBSN Bilge Switches
$138.60 – $172.20
Description
The Quick EBSN Bilge switch is an electronic switch that allows the bilge pump to be operated in the presence of water. This easy to install unit is composed of a resin-coated watertight casing with operation managed by a microcontroller. It has an advanced digital filter to distinguish the presence of water and an extended power supply range too. This unit has the option of being installed with a remote indication of operation status by led or remote control pane which will offer a signal if the bilge pump is on for a prolonged period of time, or a manual remote pump switch-on by button or remote control panel. There is a switch-on/switch-off delay to avoid false switch-on/switch-off cycling of the pump caused by the roll of the boat. The EBSN has the ability to function over a wide range of environmental temperatures and is protected against excessive battery rundown. This unit is sold complete with the bilge switch and user manual.
|
Models |
EBSN 10 | EBSN 15 | EBSN 20 |
| Current carrying capacity of the relay contacts (Max) | 10 A | 15 A | 20 A |
| Supply voltage (1) | 9 · 31 Vdc | ||
| Current absorbed when idling | 7.5 mA (Typical value) | ||
| Operating Temperature | from – 15 to + 71°C | ||
| Degree of protection | IP 68 | ||
| Switch-on delay | 5 sec | ||
| Switch-off delay | 20 sec | ||
| Casing Material | Nylon | ||
| Dimensions W x H x D – inch | 75 x 83 x 38 mm 231/32 x 3″ 1/4 x 11/2 |
||
| Weight – lb | 415 g 0,91 lb |
||
Additional information
| Weight | N/A |
|---|---|
| Dimensions | 1 × 1 × 1 in |
| AMPS | 10A, 15A, 20A |
Specifications
|
Models
|
EBSN 10 | EBSN 15 | EBSN 20 |
| Current carrying capacity of the relay contacts (Max) | 10 A | 15 A | 20 A |
| Supply voltage (1) | 9 ÷ 31 Vdc | ||
| Current absorbed when idling | 7,5 mA (Typical value) | ||
| Operating temperature | from – 15 to + 71°C | ||
| Degree of protection | IP 68 | ||
| Switch-on delay | 5 sec | ||
| Switch-off delay | 20 sec | ||
| Casing material | Nylon | ||
| Dimensions W x H x D – inch | 2”31/32 x 3″ 1/4 x 1”1/2 | ||
| Weight – lb | 0.91 lb | ||
