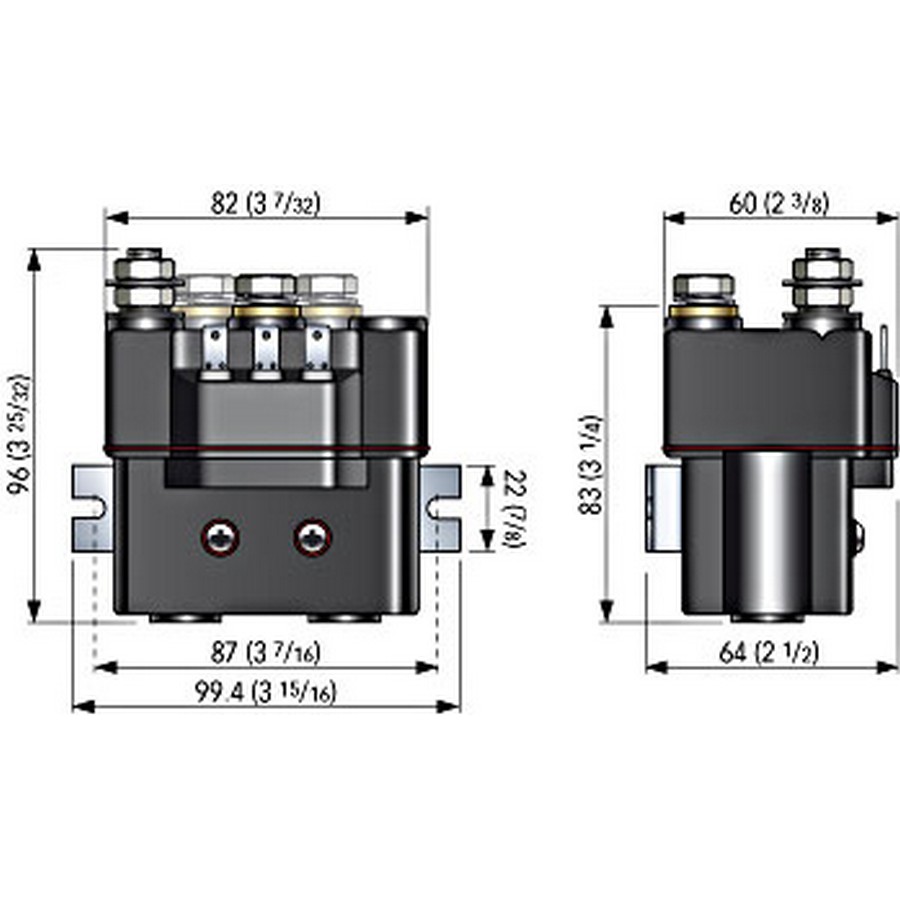

T6415 Reversing Solenoid Unit
Dear Customer,
To place an order or request information, please contact us.
We will put you in touch with the distributor nearest you.
Description
The Quick T6415 is a reversing contactor that is able to operate electric motors for windlasses and capstans. Due to the external connections, this unit is very easy to install. The casing of this unit is IP66 waterproof. This unit is sold complete with the solenoid unit and product sheet.
| Motor Wattage | 12V | 24V |
| 150 | T6411-12 | – |
| 250 | T6411-12 | – |
| 300 | T6415-12 | T6415-24 |
| 500 | T6415-12 | T6415-24 |
| 700 | T6315-12 | T6315-24 |
| 1000 | T6315-12 | T6315-24 |
| 1400 | T6315-12 | T6315-24 |
| 1500 | T6315-12 | T6315-24 |
| 1700 | T6315-12 | T6315-24 |
| 2000 | – | T6315-24 |
| 2300 | – | T6315-24 |
| 3000 | – | T6315-24 |
Additional information
| Weight | N/A |
|---|---|
| Dimensions | 1 × 1 × 1 in |
| Voltage | 12V, 24V |
Specifications
|
Models
|
Contactor units | Reversing contactor units | ||
| T 6315-12 | T 6315-24 | T 6415-12 | T 6415-24 | |
| Maximum power of the windlass/capstan motor | 2500 W | 3500 W | 2500 W | 3500 W |
| Max contact voltage | 48 Vdc | |||
| Interruption capacity (1) | 800 A @ 48 Vdc | |||
| Working intermittent current | 150 A | |||
| (50% of work cycle) (Ie) | ||||
| Coil rated voltage | 12 Vdc | 24 Vdc | 12 Vdc | 24 Vdc |
| Recommended fuse | 2,5 A Fast | 1,6 A Fast | 2,5 A Fast | 1,6 A Fast |
| Degree of protection | IP 66 | |||
| Weight | 1,87 g | 2,16 g | ||
