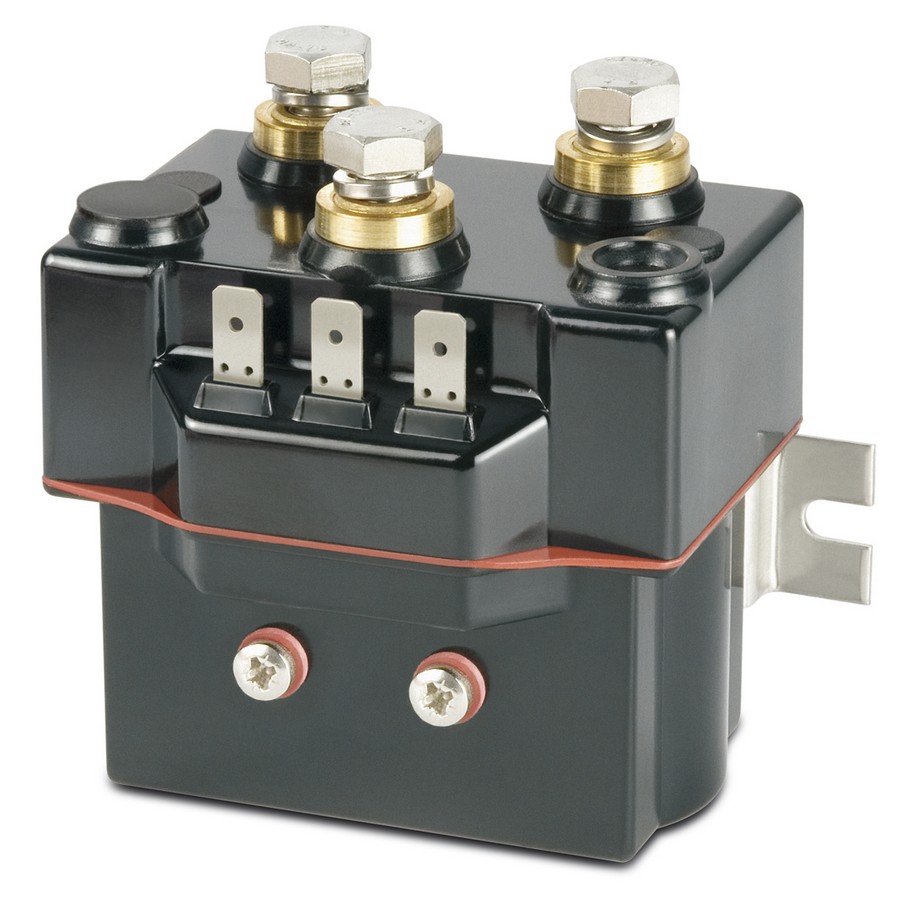

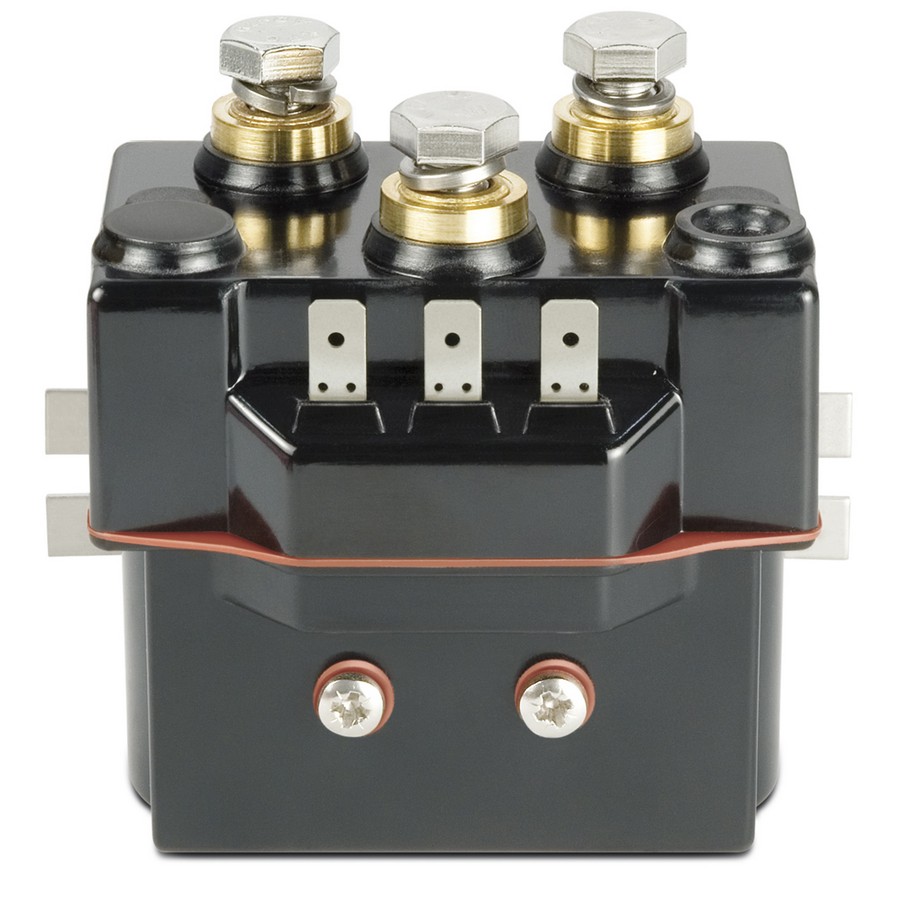

T6315 Solenoid Unit

$175.00

Clear
SKU: FTT6315 Categories: ,

Description

The Quick T6315 is a non-reversing contactor that is able to operate electric motors for windlasses and capstans. Due to the external connections, this unit is very easy to install. The casing of this unit is IP66 waterproof. This unit is sold complete with the solenoid unit and product sheet.



Motor Wattage 12V 24V
150 T6411-12  –
250 T6411-12
300 T6415-12 T6415-24
500 T6415-12 T6415-24
700 T6315-12 T6315-24
1000 T6315-12 T6315-24
1400 T6315-12 T6315-24
1500 T6315-12 T6315-24
1700 T6315-12 T6315-24
2000 T6315-24
2300 T6315-24
3000 T6315-24

Additional information

Weight N/A

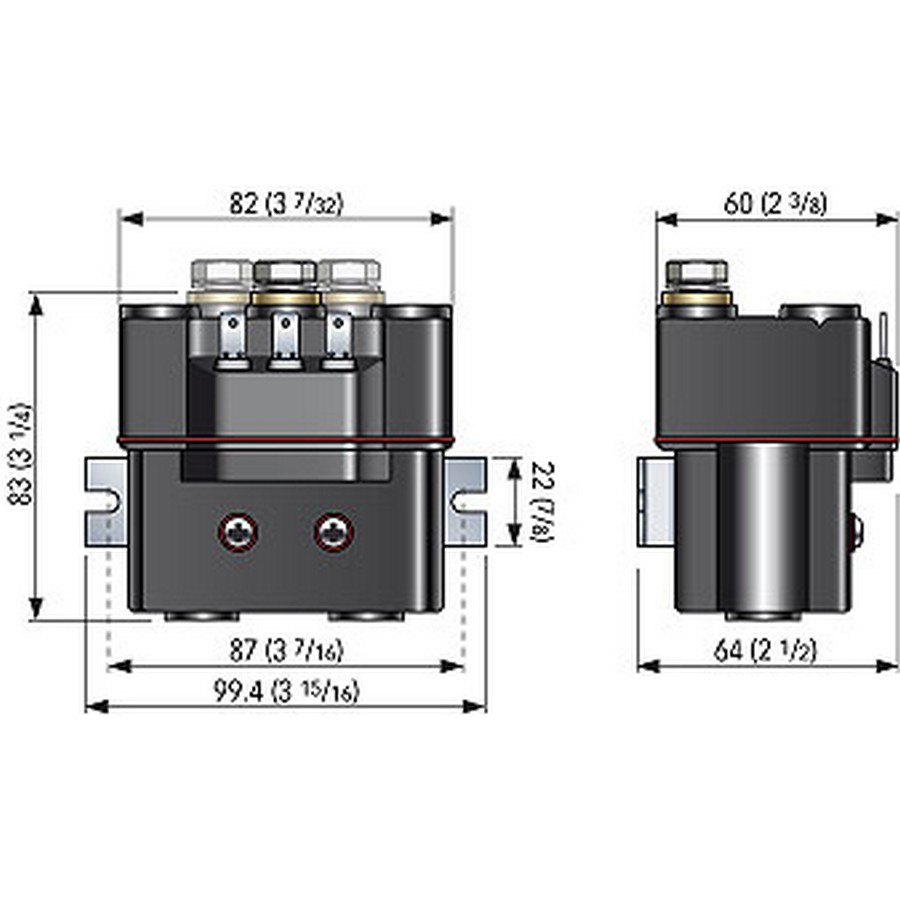

Dimensions 1 × 1 × 1 in
Voltage

12V, 24V

Specifications

Models
Contactor units Reversing contactor units
T 6315-12 T 6315-24 T 6415-12 T 6415-24
Maximum Power of the windlass/capstan motor 2500 W 3500 W 2500 W 3500 W
Max contact voltage 48 Vdc
Interruption capacity (1) 800 A @ 48 Vdc
Working intermittent current 150 A
(50% of work cycle) (Ie)
Coil rated voltage 12 Vdc 24 Vdc 12 Vdc 24 Vdc
Recommended fuse 2,5 A Fast 1,6 A Fast 2,5 A Fast 1,6 A Fast
Degree of protection IP 66
Weight 1,87 g 2,16 g
