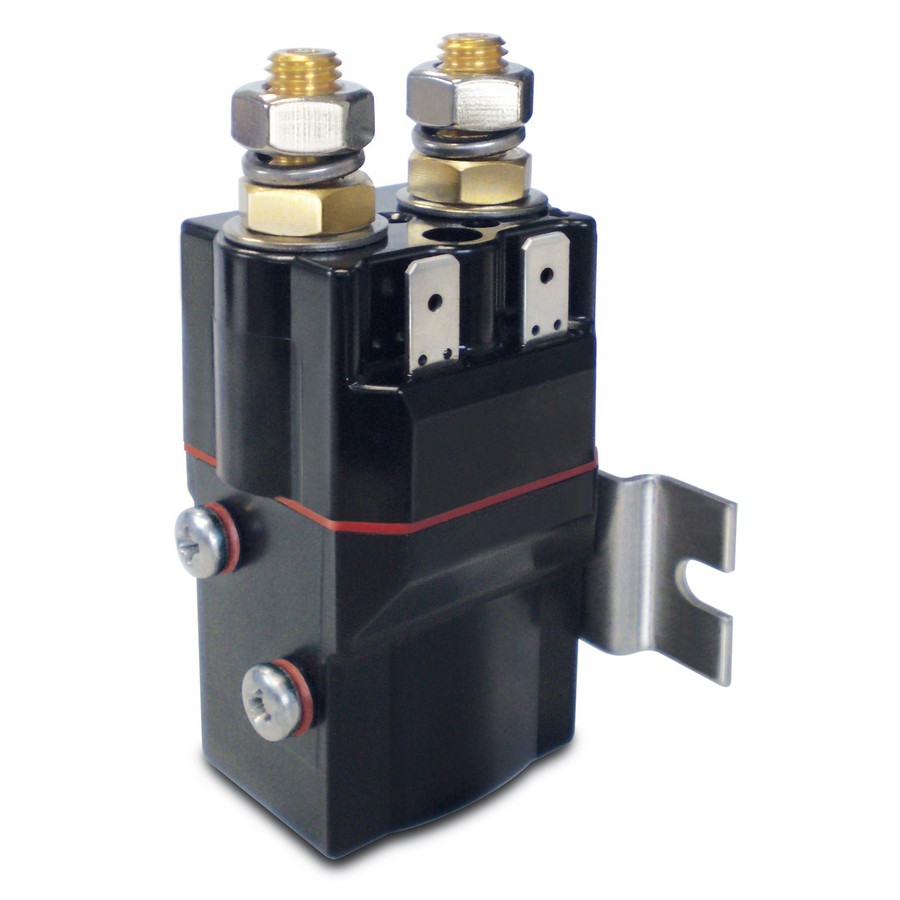

T6215 Solenoid Unit



The Quick T6215 is a contactor that is able to operate electric motors for windlasses and capstans. Due to the external connections, this unit is very easy to install. The casing of this unit is IP66 waterproof. This unit is sold complete with the solenoid unit and product sheet.

Additional information

Weight N/A

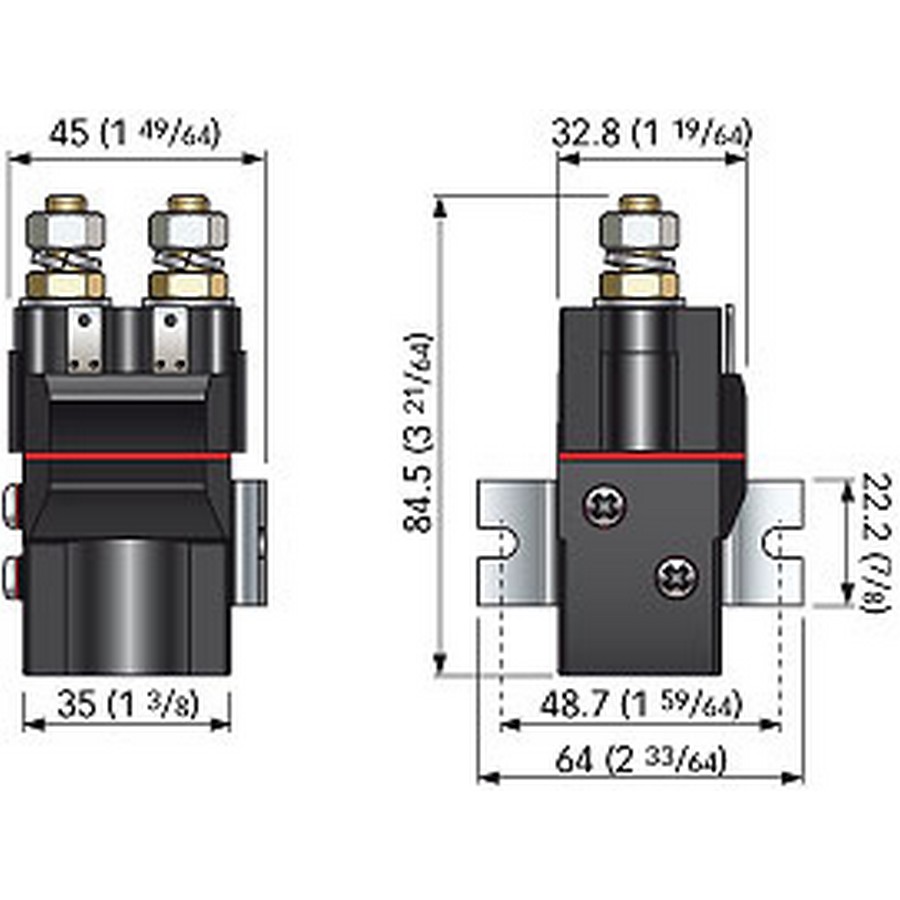

Dimensions 1 × 1 × 1 in

12V, 24V


Model Contactor
T 6215-12 T 6215-24
Max   contact voltage 48 Vdc
Interruption   capacity (1) 500 A @ 48 Vdc
Working   intermittent current 150 A
(50% of   work cycle) (Ie)
Coil   rated voltage 12 Vdc 24 Vdc
Degree   of protection IP 66
Weight 0,53 lb
