Wireless Receivers
$520.30 – $992.20
Description

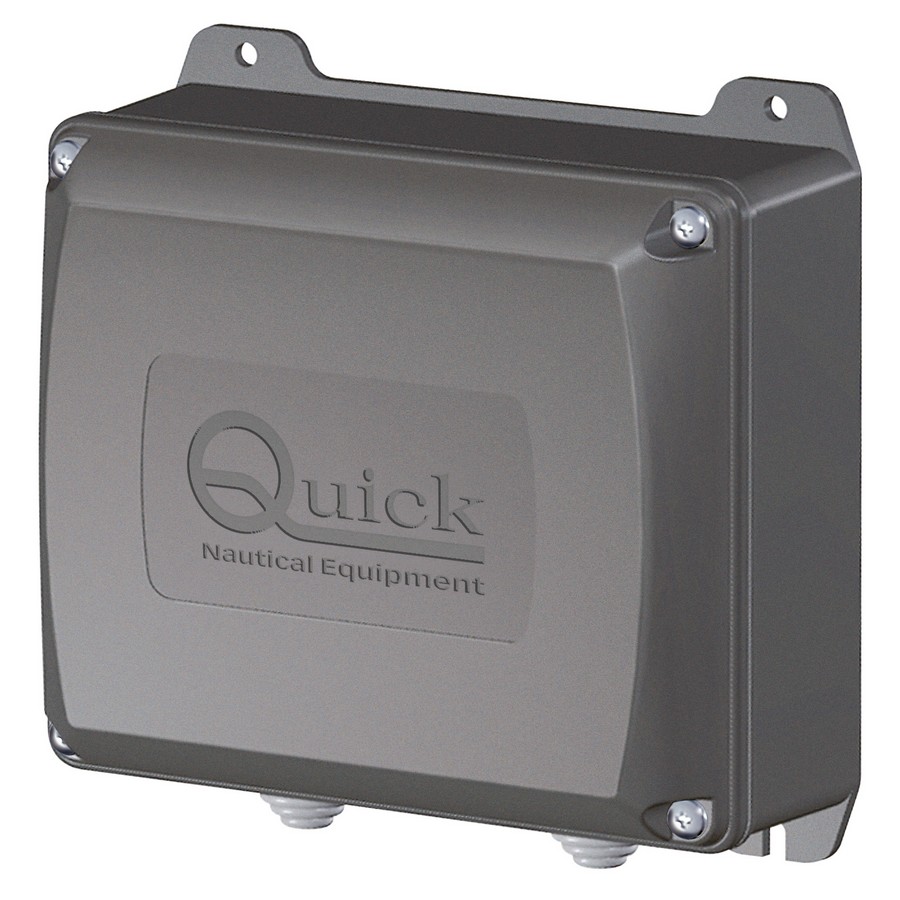

The Quick Wireless Receiver is designed specifically to work with our Quick handheld and pocket radio remote controls. Operating on a 913 MHz frequency this unit has a full power range from 10.5 to 31 Vdc. By communication with the transmitter, you will receive an indication of the system operating status, errors, and problems by means of LED and seven-segment display. An additional features of this unit are that it is protected against polarity inversion and low battery, up to 50 transmitters can be stored, it has a translation mode to activate more receivers installed in different spots by means of one transmitters, it has a programmable digital filter, and the possibility of being connected to an external antenna.
Additional information
Weight | N/A |
---|---|
Dimensions | 2 × 2 × 2 in |
Channels | 902, 904, 906, 908, 910, 912 |
Specifications
Models
|
R02 | R04 | R06 | R08 | R10 | R12 |
Carrier frequency | 913.7 Mhz | |||||
Modulation | FSK | |||||
Number of transmitters which can be stored | 50 | |||||
Number of relays | 2 | 4 | 6 | 8 | 10 | 12 |
Relay current carrying capacity | 15 A | |||||
Power supply voltage | 10,5 ÷ 31 Vdc | |||||
Power absorption in standby mode | 25 mA | |||||
Protection Rating | IP55 | |||||
Operating temperature | -15° C +70° C | |||||
Weight | 66lb / 81lb |
