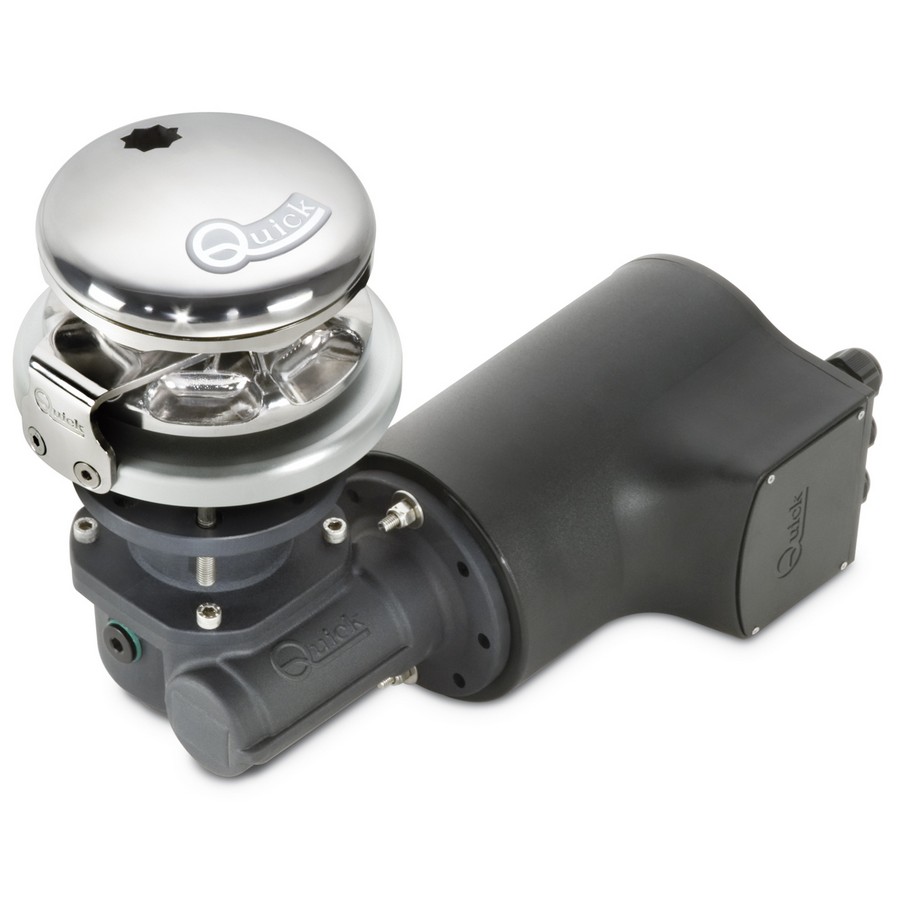

Rider R3 Vertical Windlass
R3 Vertical Windlass - Image 2
R3 Vertical Windlass - Image 3
R3 Vertical Windlass - Image 4
R3 Vertical Windlass - Image 5

R3 Vertical Windlass

$2,941.51 – $4,452.20

SKU: RIDER - R3 Categories: , Tag:

Description

The Rider R3 is a vertical application windlass perfect for boats with limited deck space. This unit is composed of anodized aluminum which is a durable element when dealing with harsh marine environments. This unit comes in different variations such as with or without the drum capstan for rope retrieval and various gypsy sizes for chain retrieval. Additional features include an IP67 watertight motor, anodized aluminum gearbox, and a chain stopper. This unit is sold complete with the windlass, solenoid unit, clutch handle and mounting hardware.

Rider 700 W 7 – 10 m 23 – 33 ft
Rider 1000 W 10 – 13 m 33 – 43 ft
Rider 1400 W 12 – 15 m 39 – 49 ft



GYPSY 8 mm – 5/16″” 10 mm – 3/8″
CHAIN 8 mm 8 mm 5/16″ 5/16″ 10 mm 3/8″
DIN 766 ISO G4 BBB ISO (P.30) G4



Additional information

Weight N/A
Dimensions 17 × 17 × 11 in
Drum

Gypsy Size

,

Series

Wattage

700W, 1000W, 1400W
Voltage

12V, 24V

Specifications



Standard Version
 Rider 500 / 500 D Rider 700 / 700 D Rider 1000 / 1000 D Rider 1400 / 1400 D
Motor power 500 W 700 W 1000 W 1400 W
Motor supply voltage 12 V 24 V 12 V 24 V 12 V 24 V 12 V 24 V
Maximum pull 1455 lb 1455 lb 1874 lb 1874 lb 2205 lb 2205 lb 2425 lb 2425 lb
Maximum working load 441 lb 485 lb 551 lb 661 lb 815 lb 992 lb 992 lb 1100 lb
Working load 143 lb 154 lb 176 lb 220 lb 264.5 lb 330.7 lb 330.7 lb 374.8 lb
Current  absorption @ working load (1) 80 A 40 A 90 A 55 A 140 A 80 A 155 A 85 A
Maximum chain speed (2) 83 ft/min 83 ft/min 90 ft/min 87 ft/min 130 ft/min 135 ft/min 108 ft/min 98 ft/min
Maximum chain speed @ working load (2) 60 ft/min 64 ft/min 48 ft/min 49 ft/min 67 ft/min 71 ft/min 58 ft/min 68 ft/min
Weight – Rider – [without drum] 16.5 lb 16.5 lb 35.3 lb 35.3 lb 37.7 lb 37.7 lb 42.8 lb 42.8 lb
Weight – Rider D – [with drum] 18.5 lb 18.5 lb 39.7 lb 39.7 lb 42.1 lb 42.1 lb 47.2 lb 47.2 lb



Standard version
 Rider 1700 / 1700 D Rider 2000 / 2000 D Rider 2300 / 2300 D Rider 3000 / 3000 D
Motor   power 1700 W 2000 W 2300 W 3000 W
Motor supply voltage 24 V 24 V 24 V 24 V
Maximum pull 2646 lb 2650 lb 5291 lb 6840 lb
Maximum working load 1257 lb 1653 lb 1880 lb 2646 lb
Working load 419 lb 551 lb 630 lb 883 lb
Current absorption @ working load (1) 100 A 115 A 120 A 145 A
Maximum chain speed (2) 126 ft/min 135 ft/min 135 ft/min 129 ft/min
Maximum chain speed @ working load (2) 68 ft/min 73 ft/min 76 ft/min 63.3 ft/min
Weight – Rider – [without drum] 61.5 lb 72 lb 103 lb 126 lb
Weight – Rider D – [with drum] 76.5 lb 84 lb 114 lb 138 lb
