Description

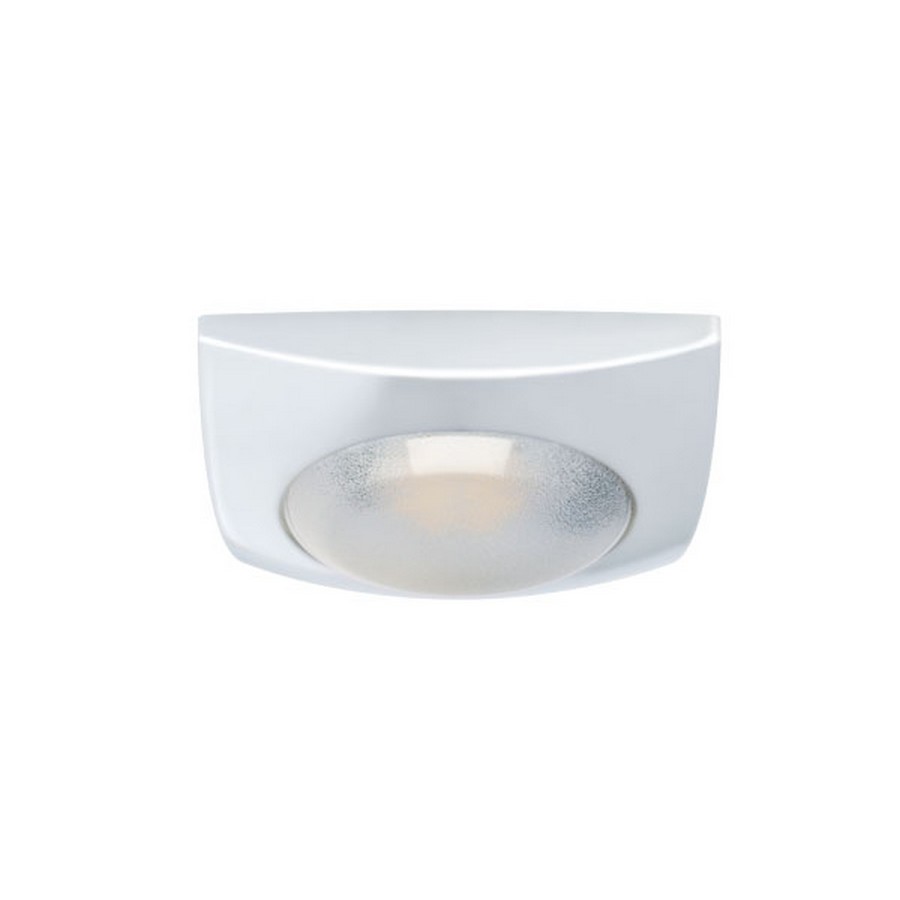

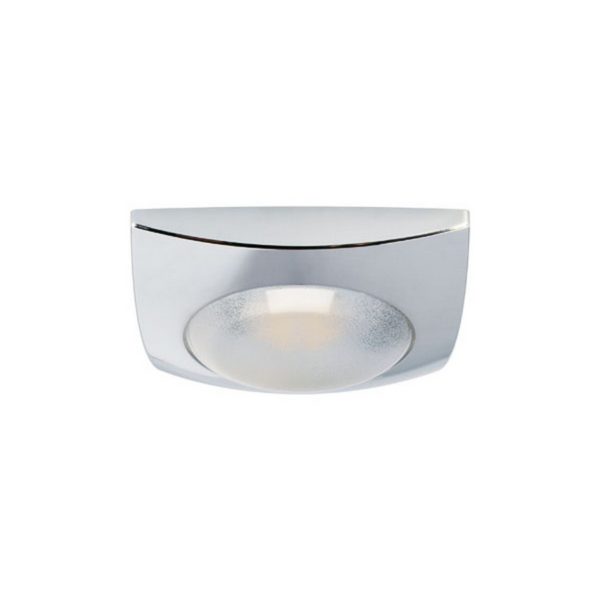

The Tati is an IP40 recessed LED surface mounted downlight. It has a 61mm square trim composed of plastic plated in chrome or white. It is available in a warm white led bulb color. It has a satin diffuser and can be installed on the wall or ceiling.
Specifications
Specifications
| Power type |
Constant Voltage |
| Light source |
6 x LED |
| Supply |
10 ÷ 15 V |
| Power consumption |
2 W |
| Current consumption |
0.13 A @ 12V |
| Average lifetime |
50,000 h |
| Dimmable |
Yes |
| IP security degree |
40 |
Dimensions
| Frame |
SQ. 2 13/32″ |
| Recess |
9/16″ (Thickness) |
Design
| Frame material |
PLASTIC |
| Finish |
WHITE 9010 / CHROMED |
| Light colors |
WARM WHITE |
| Mounting |
SCREWS |
Photometric data
| WARM WHITE |
2800-3100 °K |
| Angle |
110° |
| Light flow |
133 lm |
| Efficiency |
67 lm/W |
| Light Beam- distance 1 m |
Ø 3.01 m |
42.28 lux |
| Light Beam- distance 2 m |
Ø 6.02 m |
10.57 lux |
| Light Beam – distance 3 m |
Ø 9.03 m |
4.07 lux |
Certifications

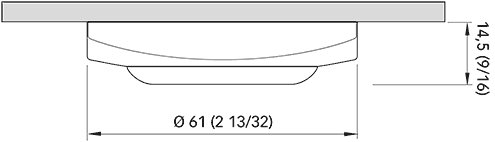

Dimensions in mm (inches)
DIMMERS
Basic item, for power and functionality alternatives, consult section ACCESSORIES
LED Protection: Spike protected ± 500V Polarity sensitive: YES
