Description

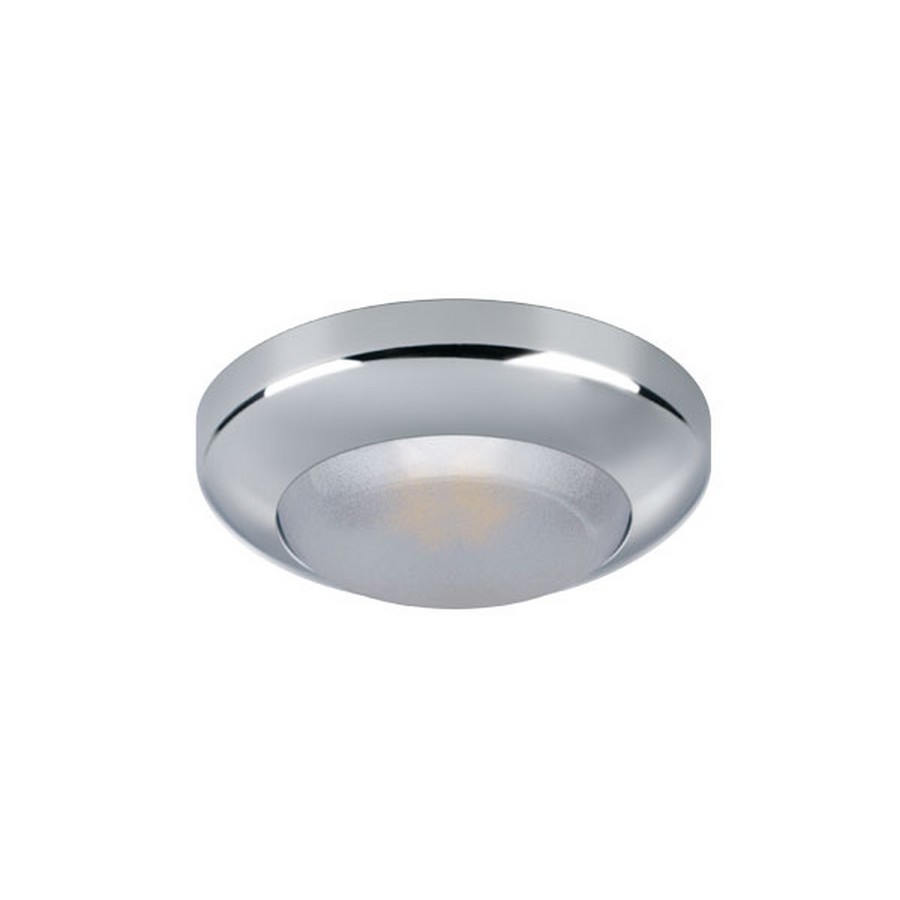

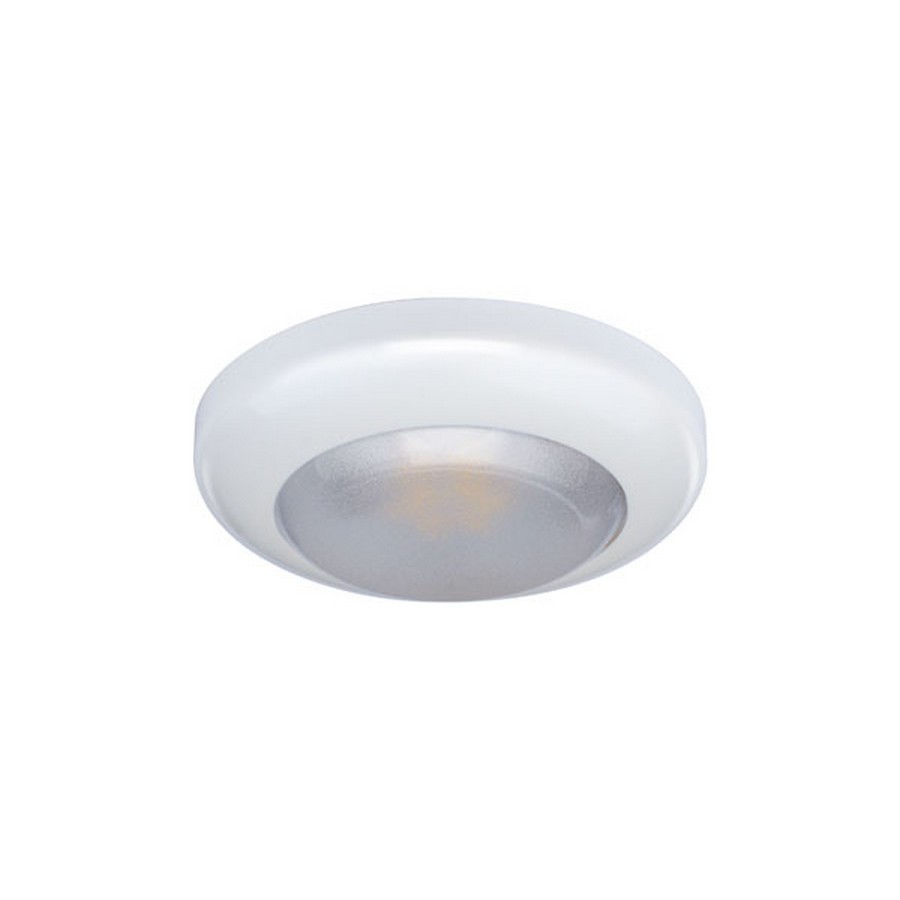

The Miro is an IP40 recessed LED surface mounted downlight. It has a 64mm round trim composed of plastic plated in chrome or white. It is available in a warm white led bulb color. It has a satin diffuser and can be installed on the wall or ceiling.
Specifications
Specifications
Power type |
Constant Voltage |
Light source |
0 x LED |
Supply |
10 ÷ 15 V |
Power consumption |
2 W |
Current consumption |
0.13 A @ 12V |
Average lifetime |
50,000 h |
Dimmable |
Yes |
IP security degree |
40 |
Dimensions
Frame |
Ø 2 33/64″ |
Recess |
9/16″ (Thickness) |
Design
Frame material |
PLASTIC |
Finish |
WHITE 9010 / CHROMED |
Light colors |
WARM WHITE |
Mounting |
SCREWS |
Photometric data
WARM WHITE |
2800-3100 °K |
Angle |
110° |
Light flow |
133 lm |
Light Beam – distance 1 m |
Ø 3.01 m |
42.28 lux |
Light Beam – distance 2 m |
Ø 6.02 m |
10.57 lux |
Light Beam- distance 3 m |
Ø 9.03 m |
4.07 lux |
Certifications

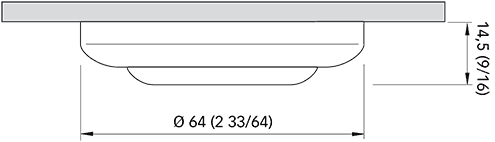

Dimensions in mm (inches)
DIMMERS
Basic item, for power and functionality alternatives, consult section ACCESSORIES
LED Protection: Spike protected ± 500V Polarity sensitive: YES
