Yoko

$108.00$171.82

Description

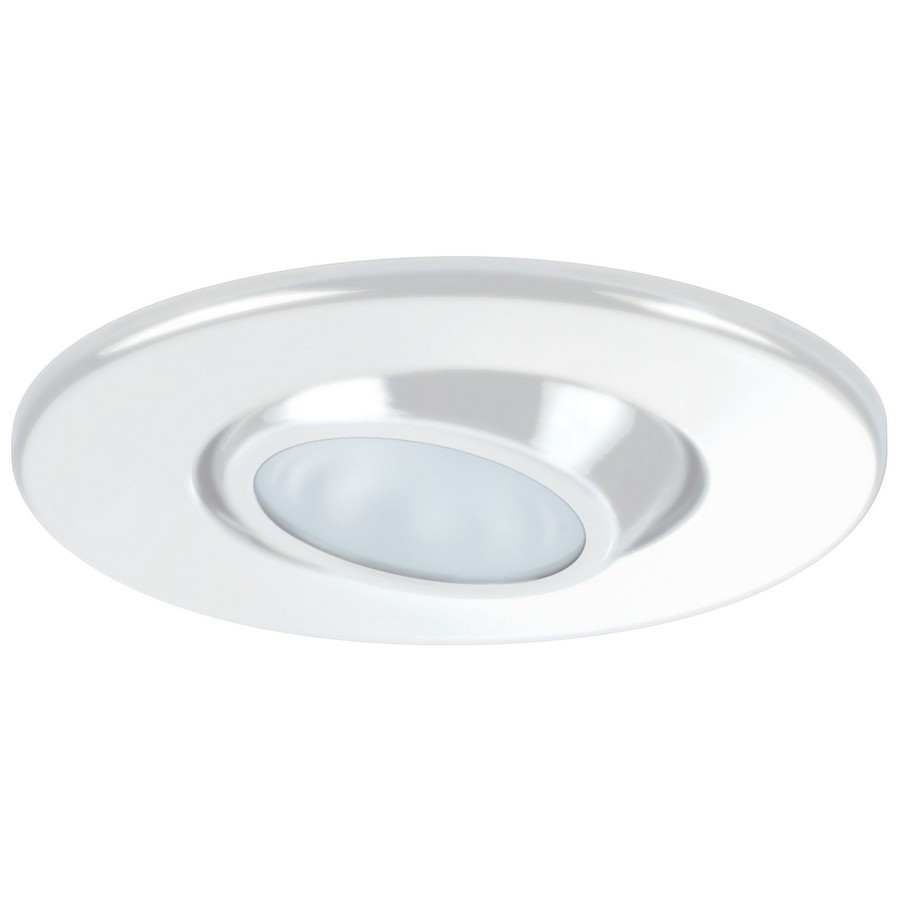

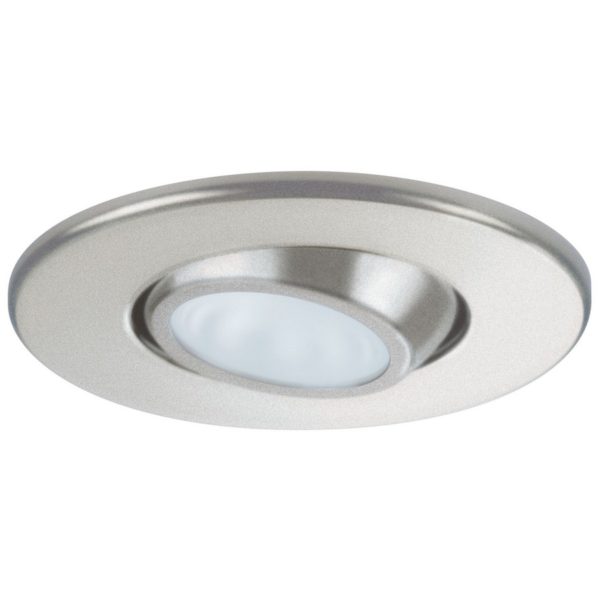

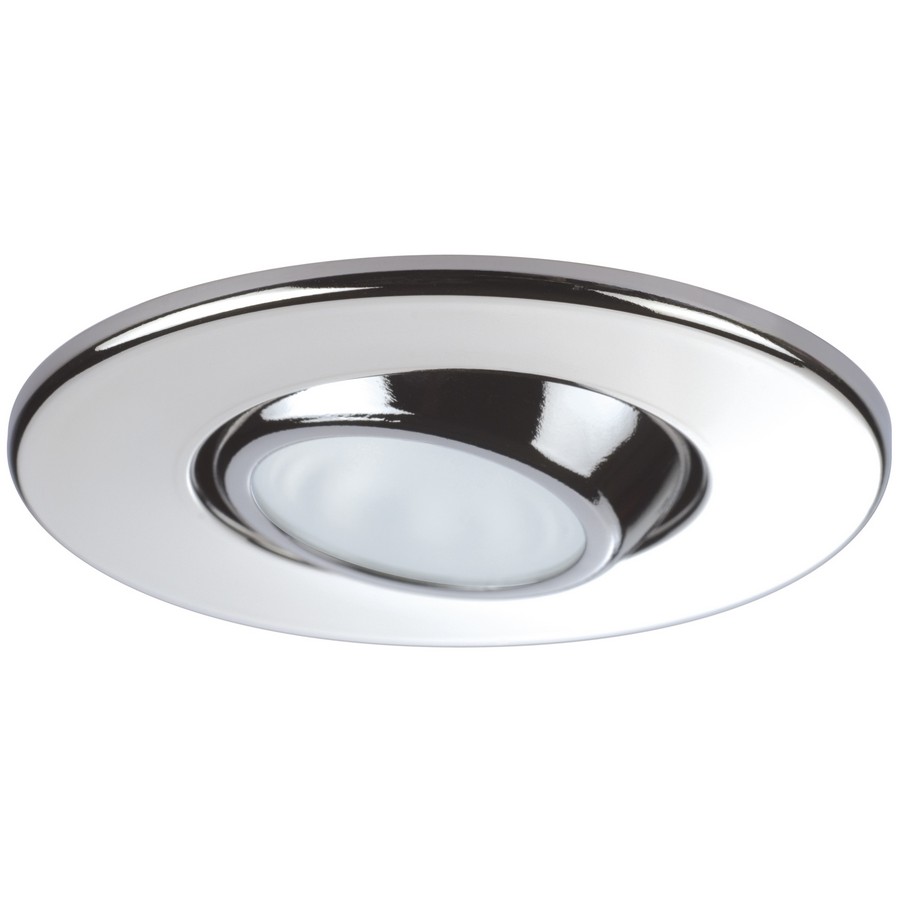

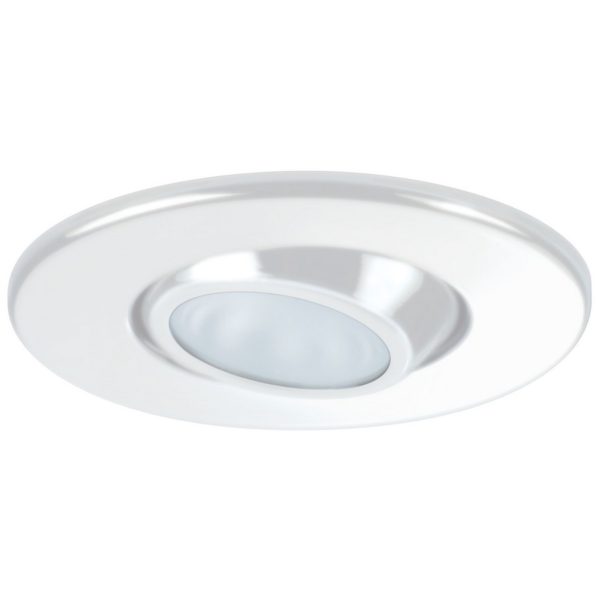

The Yoko is an IP40 Power LED adjustable downlight. It has a 65mm round trim composed of AISI 316 stainless steel and a frosted lens. It is available with either the daylight or warm LED bulb.

Additional information

Weight N/A
Dimensions 0.25 × 0.25 × 0.25 in
Light Color

Daylight, Warm

Trim

Stainless Steel, White, Satin

Specifications

Specifications


Power type Constant Voltage
Light source 1 x POWER LED
Supply 10 ÷ 30 V
Power consumption 1,5 W
Current consumption      0.06 A @ 24V
Average lifetime 50,000 h
Dimmable Yes
IP security degree 40


Dimensions


Frame Ø 2 9/16″
Recess      1 7/32″
Hole Ø 2 1/16″


Design


Frame material      AISI 316 S/STEEL
Finish MIRROR POLISHED / SATIN / WHITE 9010
Light colors DAYLIGHT / WARM WHITE
Mounting SPRINGS
Adjustable Yes


Photometric data


 DAYLIGHT 3800-4200 °K
Angle 30°
Light flow 42 lm
Efficiency 28 lm/W
Light Beam- distance 1 m      Ø 0.57 m 78.1 lux
Light Beam- distance 2 m Ø 1.15 m 19.5 lux
Light Beam- distance 3 m Ø 1.72 m 8.7 lux


 WARM WHITE 2800-3100 °K
Angle 30°
Light flow 40 lm
Efficiency 26.6 lm/W
Light Beam- distance 1 m Ø 0.57 m 73.7 lux
Light Beam- distance 2 m      Ø 1.15 m 18.4 lux
Light Beam- distance 3 m Ø 1.72 m 8.2 lux


Certifications

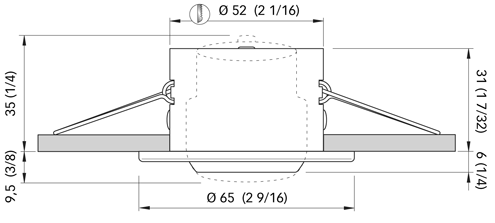

Dimensions in mm (inches)

DIMMERS

ZDIM100

ZDIM100

ZDIM100


Basic item, for power and functionality alternatives, consult section ACCESSORIES
LED Protection: Spike protected ± 500V Polarity sensitive: NO
