Description

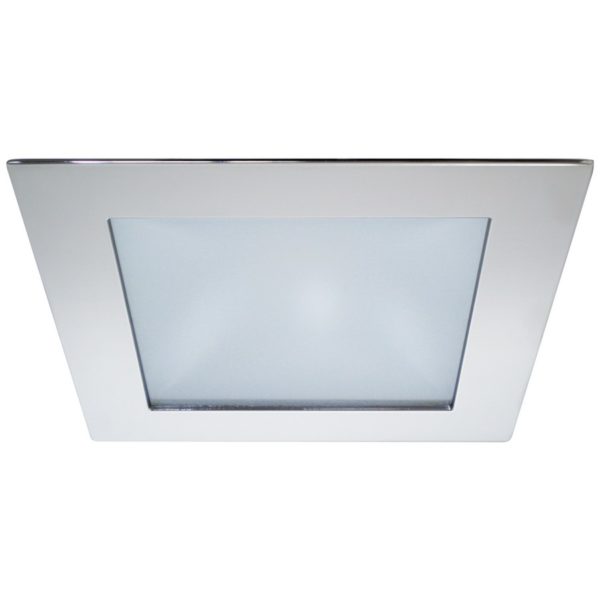

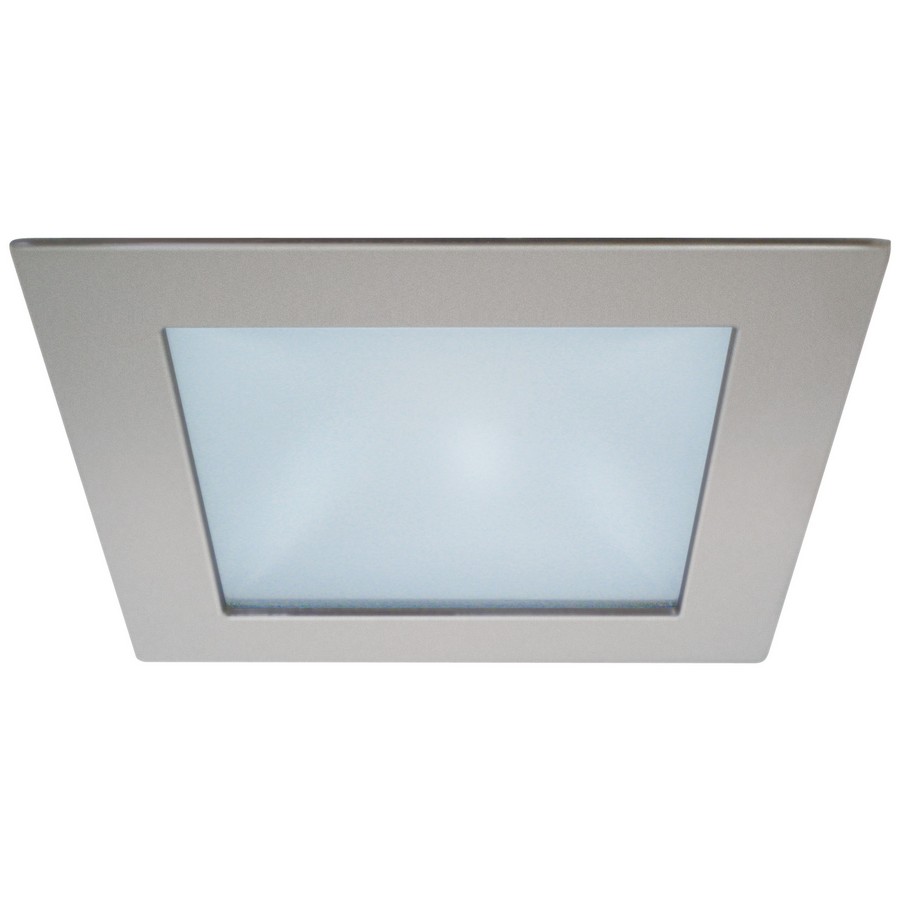

The Kristine is an IP40 recessed Power LED downlight. It has a 112mm square trim composed of AISI stainless steel and a frosted lens. It is available in warm and daylight LED bulb colors.
Specifications
Specifications
Power type |
Constant Voltage |
Light source |
1 x POWER LED |
Supply |
10 ÷ 30 V |
Power consumption |
7 W |
Current consumption |
0.29 A @ 24V |
Average lifetime |
50,000 h |
Dimmable |
Yes |
IP security degree |
40 |
Dimensions
Frame |
SQ. 4 13/32″ |
Recess |
2 1/4″ |
Hole |
SQ. 3 1/2″ x 3 1/2″ |
Design
Frame material |
AISI 316 S/STEEL |
Finish |
MIRROR POLISHED / SATIN / WHITE 9010 |
Light colors |
DAYLIGHT / WARM WHITE |
Mounting |
SPRINGS |
Photometric data
DAYLIGHT |
3800-4200 °K |
Angle |
85° |
Light flow |
324 lm |
Efficiency |
47 lm/W |
Light Beam – distance 1 m |
Ø 1.84 m |
154.8 lux |
Light Beam- distance 2 m |
Ø 3.68 m |
38.7 lux |
Light Beam- distance 3 m |
Ø 5.51 m |
17.2 lux |
WARM WHITE |
2800-3100 °K |
Angle |
85° |
Light flow |
311 lm |
Efficiency |
44 lm/W |
Light Beam- distance 1 m |
Ø 1.84 m |
148.8 lux |
Light Beam- distance 2 m |
Ø 3.68 m |
37.2 lux |
Light Beam – distance 3 m |
Ø 5.51 m |
16.5 lux |
Certifications

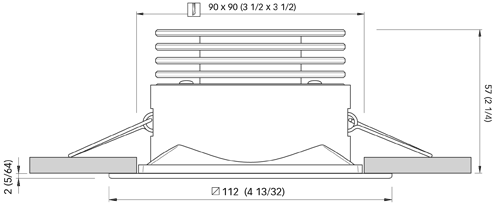

Dimensions in mm (inches)
LED Protection: Spike protected ± 500V Polarity sensitive: YES
