Ilenia

$83.00

Clear

Description

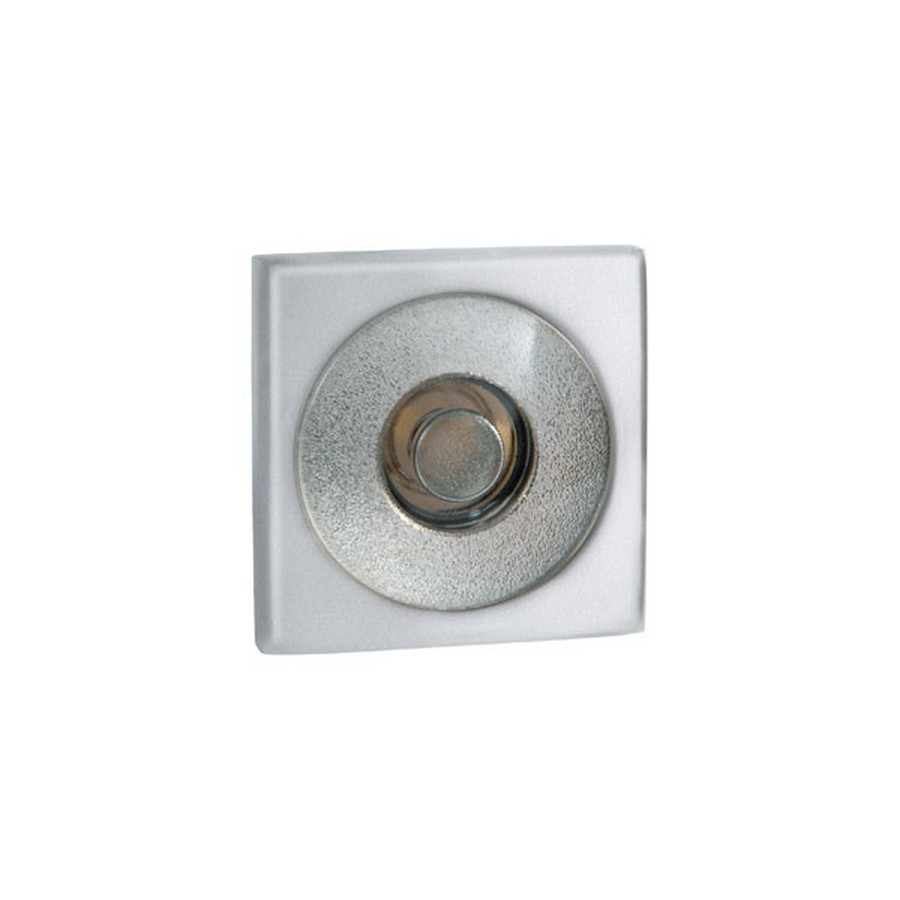

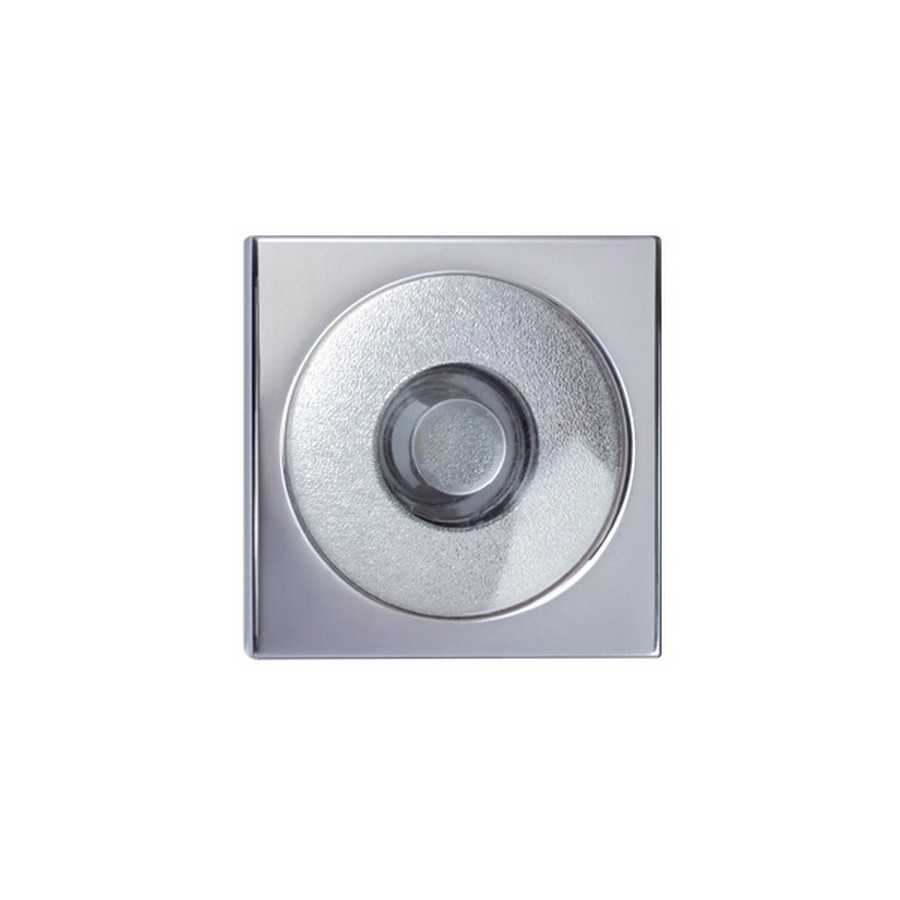

The Ilenia is an IP65 led courtesy light. It has a 37.5mm square trim composed of AISI 316 stainless steel and UV stabilized techno-polymer. This unit is available in warm, daylight, blue and red led bulb colors.

Additional information

Weight N/A
Dimensions 0.25 × 0.25 × 0.25 in
Options

Ilenia Red 1030V S.Steel, Ilenia Blue 1030V White, Ilenia Daylight 1030V Satin, Ilenia Daylight 1030V White, Ilenia Warm 1030V Satin, Ilenia Blue 1030V S.Steel, Ilenia Blue 1030V Satin, Ilenia Warm 1030V S.Steel, Ilenia Warm 1030V White, Ilenia Daylight 1030V S.Steel, Ilenia Red 1030V Satin, Ilenia Red 1030V White

Specifications

Specifications


Power type Constant Voltage
Light source 1 x LED
Supply 10 ÷ 30 V
Power consumption 0.48 W @ 24 V
Current consumption      0.02 A @ 12 V / 24 V
Average lifetime 50,000 h
IP security degree 65


Dimensions


Frame SQ. 1 15/32″
Recess       53/64″
Hole Ø 3/4″


Design


Frame material      AISI 316 S/STEEL
Finish MIRROR POLISHED / SATIN / WHITE 9010
Light colors DAYLIGHT / WARM WHITE / RED / BLU
Mounting SCREWS


Certifications



LED Protection: Spike protected ± 500V Polarity sensitive: NO
