Description
The Nikita is an IP40 recessed Power LED adjustable downlight. It has an 85mm round trim composed of AISI 316 stainless steel and a frosted lens. It is available with either the daylight or warm led bulb.
Specifications
Specifications
Power type |
Constant Voltage |
Light source |
1 x POWER LED |
Supply |
10 ÷ 30 V |
Power consumption |
4 W |
Current consumption |
0.16 A @ 24V |
IP security degree |
40 |
Dimensions
Frame |
Ø 3 11/32″ |
Recess |
1 21/32” |
Hole |
Ø 2 3/4″ |
Design
Frame material |
AISI 316 S/STEEL |
Finish |
MIRROR POLISHED / SATIN / WHITE 9010 |
Light colors |
DAYLIGHT / WARM WHITE |
Mounting |
SPRINGS |
Adjustable |
23° |
Photometric data
DAYLIGHT |
3800-4200 °K |
Angle |
45° |
Light flow |
260 lm |
Efficiency |
48 lm/W |
Light Beam- distance 1 m |
Ø 0.86 m |
183 lux |
Light Beam- distance 2 m |
Ø 1.72 m |
45.7 lux |
Light Beam – distance 3 m |
Ø 2.57 m |
20.3 lux |
WARM WHITE |
2800-3100 °K |
Angle |
45° |
Light flow |
235 lm |
Efficiency |
44 lm/W |
Light Beam – distance 1 m |
Ø 0.74 m |
252.8 lux |
Light Beam – distance 2 m |
Ø 1.49 m |
63.2 lux |
Light Beam – distance 3 m |
Ø 2.23 m |
28.1 lux |
Certifications

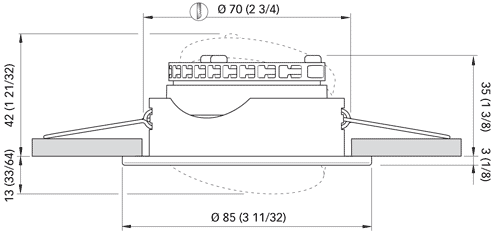

Dimensions in mm (inches)
DIMMERS
LDIM BUS 2CH
LDIM BUS 2CH
Basic item, for power and functionality alternatives, consult section ACCESSORIES
LED Protection: Spike protected ± 500V Polarity sensitive: YES
