Sonia 4W
Price range: $204.61 through $247.58
Description

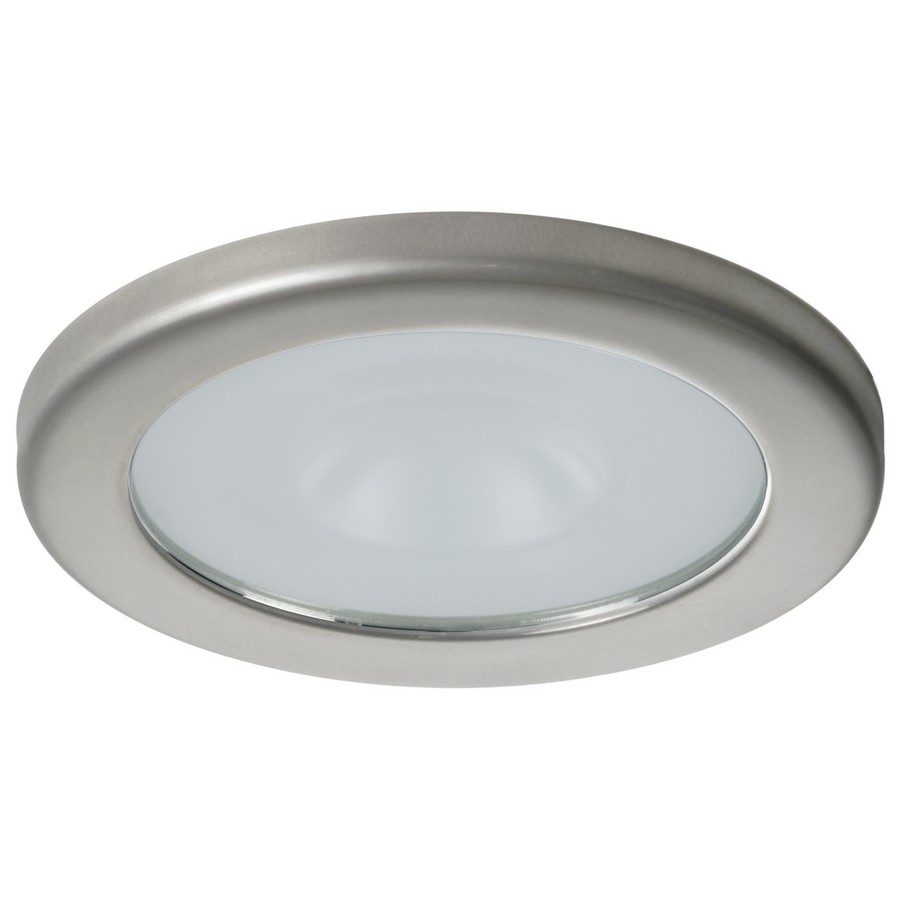

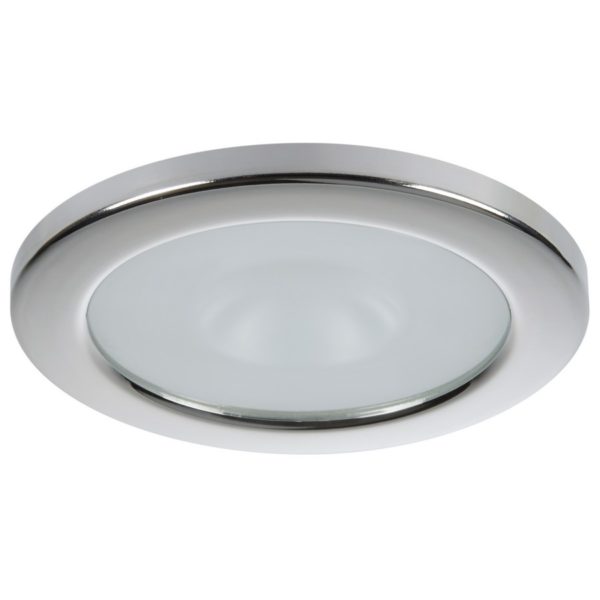

The Sonia is an IP40 recessed Power LED downlight. It has a 105mm round trim composed of AISI 316 stainless steel and a frosted lens. It is available with a daylight or warm LED bulb.
Additional information
| Weight | N/A |
|---|---|
| Dimensions | 2 × 2 × 2 in |
| Light Color | Warm, Daylight |
| Trim | White, Stainless Steel |
Specifications
Specifications
| Power type | Constant Voltage |
| Light source | 1 x POWER LED |
| Supply | 10 ÷ 30 V |
| Power consumption | 4 W |
| Current consumption | 0.16 A @ 24V |
| Average lifetime | 50,000 h |
| Dimmable | Yes |
| IP security degree | 66 |
Dimensions
| Frame | Ø 4 9/64″ |
| Recess | 34 mm |
| Hole | Ø 3 1/8″ |
Design
| Frame material | AISI 316 S/STEEL |
| Finish | MIRROR POLISHED / SATIN / WHITE 9010 |
| Light colors | DAYLIGHT / WARM WHITE |
| Mounting | SCREWS |
Photometric data
| DAYLIGHT | 3800-4200 °K | |
| Angle | 40° | |
| Light flow | 266 lm | |
| Efficiency | 50 lm/W | |
| Light Beam – distance 1 m | Ø 0.73 m | 266.2 lux |
| Light Beam – distance 2 m | Ø 1.45 m | 66.5 lux |
| Light Beam – distance 3 m | Ø 2.18 m | 29.6 lux |
| WARM WHITE | 2800-3100 °K | |
| Angle | 40° | |
| Light flow | 252 lm | |
| Efficiency | 46 lm/W | |
| Light Beam – distance 1 m | Ø 0.73 m | 241.8 lux |
| Light Beam – distance 2 m | Ø 1.45 m | 60.5 lux |
| Light Beam – distance 3 m | Ø 2.18 m | 26.9 lux |
Certifications
   |
Dimensions in mm (inches)
DIMMERS
LDIM BUS 2CH
LDIM BUS 2CH
Basic item, for power and functionality alternatives, consult section ACCESSORIES
LED Protection: Spike protected ± 500V Polarity sensitive: YES
