Eyelid
Dear Customer,
To place an order or request information, please contact us.
We will put you in touch with the distributor nearest you.
Description

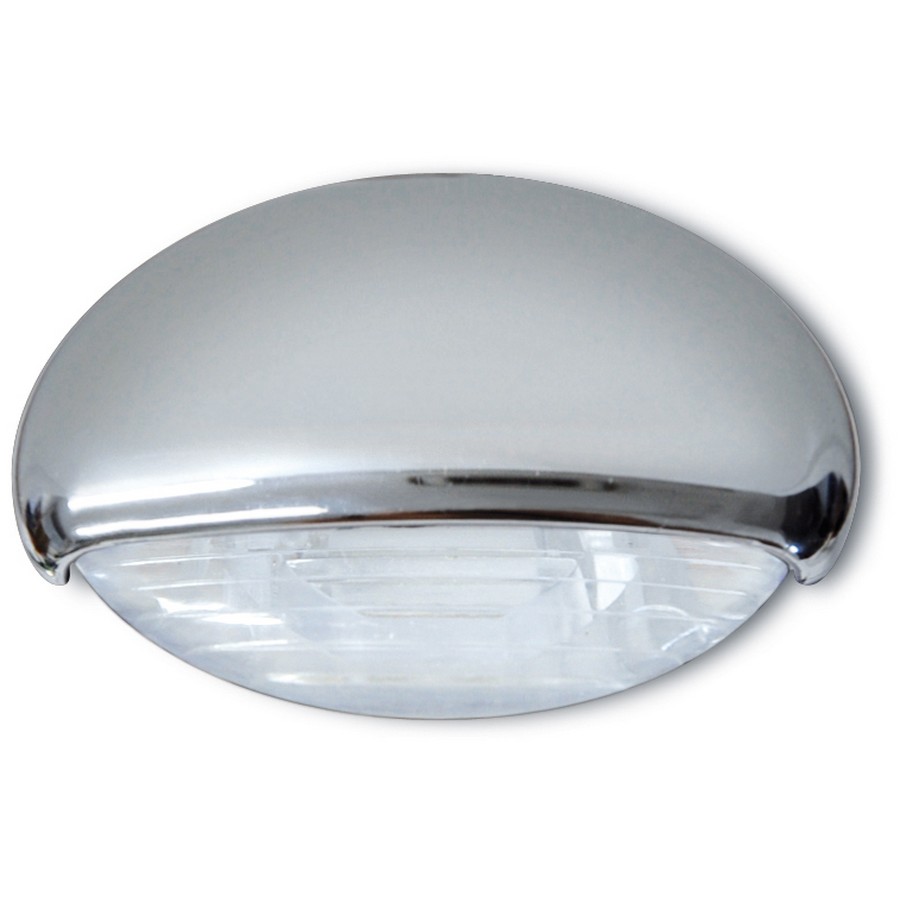

The Eyelid is an IP65 led courtesy light. It has a 46mm x 33mm eye shaped trim composed of chromed plastic and UV stabilized techno-polymer. This unit is available in daylight, blue and red led bulb colors.
Additional information
| Weight | N/A |
|---|---|
| Dimensions | 0.25 × 0.25 × 0.25 in |
| Light Color | Daylight, Blue |
| Trim | White, Chrome |
Specifications
Specifications
| Power type | Constant Voltage |
| Light source | 2 x LED |
| Supply | 10 ÷ 30 V |
| Power consumption | 0.50 W @ 24 V |
| Current consumption | 0.02 A |
| Average lifetime | 50 h |
| IP security degree | 65 |
Dimensions
| Frame | Ø 1 13/16″ x 1 19/64″ |
Design
| Frame material | PLASTIC |
| Finish | MIRROR POLISHED / WHITE 9010 |
| Light colors | DAYLIGHT / RED / BLU |
| Mounting | SCREWS |
Certifications
![]() |
LED Protection: Spike protected ± 500V Polarity sensitive: YES
