Kai XP LP 6W

Price range: $163.23 through $229.50

Bulb Color

Trim Finish

Clear

SKU: Kai XP LP 6W Categories: LED Lighting, Lighting, Recessed Downlights

Description

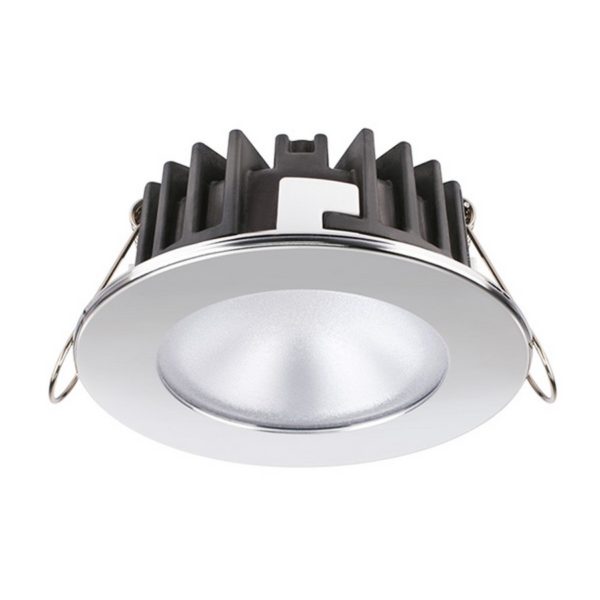

The Kai XP LP 6W is an IP66 recessed Power LED downlight. It has an 82mm round trim composed of AISI 316 stainless steel and a frosted lens.

Additional information

Weight	N/A
Dimensions	0.25 × 0.25 × 0.25 in
Bulb Color	Daylight, Warm, Warm/Red, Warm/Blue, QCC, Red, Blue, Daylight/Red, Daylight/Blue, Daylight/Red
Trim Finish	White, Satin, Stainless Steel

Specifications

Specifications

Power type	Constant Voltage
Light source	2 X POWER LED
Supply	10 ÷ 30 V
Power consumption	6 W
Current consumption	0.25 A @ 24V
Average lifetime	50,000 h
Dimmable	Yes
IP security degree	66

Dimensions

Frame	SQ; 3 7/32″
Recess	1 3/16″
Hole	Ø 2 9/16″

Design

Frame material	AISI 316 S/STEEL
Finish	MIRROR POLISHED / WHITE 9010
Light colors	DAYLIGHT / WARM WHITE
Mounting	SPRINGS

DAYLIGHT	3800-4200 °K
Angle	70°
Light flow	410 lm
Efficiency	49 lm/W
Light Beam – distance 1 m	Ø 1.48 m	263.4 lux
Light Beam- distance 2 m	Ø 2.97 m	65.9 lux
Light Beam- distance 3 m	Ø 4.45 m	29.3 lux

WARM WHITE	2800-3100 °K
Angle	70°
Light flow	315 lm
Efficiency	46 lm/W
Light Beam – distance 1 m	Ø1.48 m	193.8 lux
Light Beam- distance 2 m	Ø 2.97 m	48.4 lux
Light Beam- distance 3 m	Ø 4.45 m	21.5 lux

Certifications

Dimensions in mm (inches)

DIMMERS

LDIM BUS 2CH

LDIM BUS 2CH

Basic item, for power and functionality alternatives, consult section ACCESSORIES

LED Protection: Spike protected ± 500V Polarity sensitive: YES
