Description

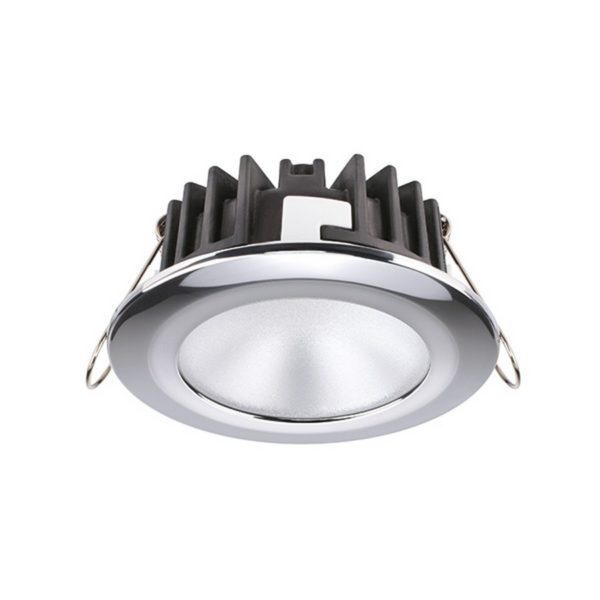

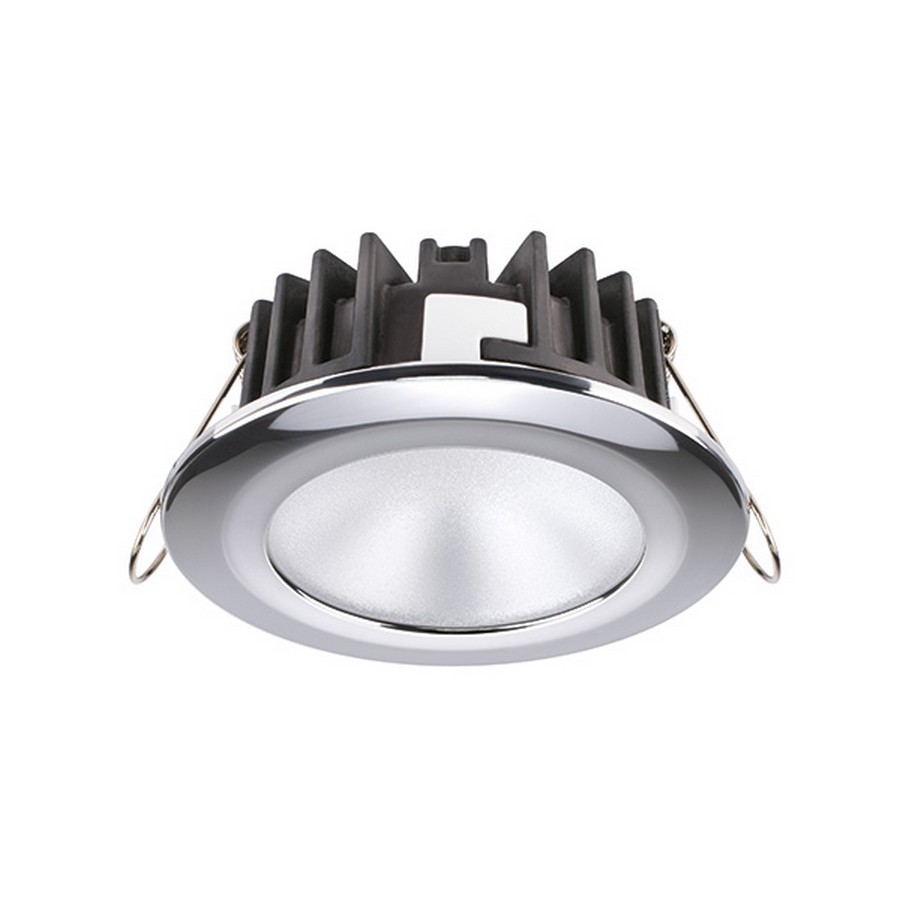

The Kor XP LP 4W is an IP66 recessed Power LED downlight. It has an 82mm round trim composed of AISI 316 stainless steel and a frosted lens.
Specifications
Specifications
| Power type |
Constant Voltage |
| Light source |
2 X POWER LED |
| Supply |
10 ÷ 30 V |
| Power consumption |
4 W |
| Current consumption |
0.17 A @ 24V |
| Average lifetime |
50,000 h |
| IP security degree |
66 |
Dimensions
| Frame |
SQ; 3 7/32″ |
| Recess |
1 3/16″ |
| Hole |
Ø 2 9/16″ |
Design
| Frame material |
AISI 316 S/STEEL |
| Finish |
MIRROR POLISHED / WHITE 9010 |
| Light colors |
DAYLIGHT / WARM WHITE |
| Mounting |
SPRINGS |
Photometric data
| DAYLIGHT |
3800-4200 °K |
| Angle |
60° |
| Light flow |
220 lm |
| Efficiency |
55 lm/W |
| Light Beam – distance 1 m |
Ø 1.21 m |
162.3 lux |
| Light Beam- distance 2 m |
Ø 2.41 m |
40.6 lux |
| Light Beam- distance 3 m |
Ø 3.62 m |
18 lux |
| WARM WHITE |
2800-3100 °K |
| Angle |
60° |
| Light flow |
205 lm |
| Efficiency |
51 lm/W |
| Light Beam – distance 1 m |
Ø1 m |
149.8 lux |
| Light Beam- distance 2 m |
Ø 2.41 m |
37.5 lux |
| Light Beam- distance 3 m |
Ø 3.62 m |
16.6 lux |
Certifications
Dimensions in mm (inches)
DIMMERS
LDIM BUS 2CH
LDIM BUS 2CH
Basic item, for power and functionality alternatives, consult section ACCESSORIES
LED Protection: Spike protected ± 500V Polarity sensitive: YES
