Erica 2

$275.00

Clear

Description

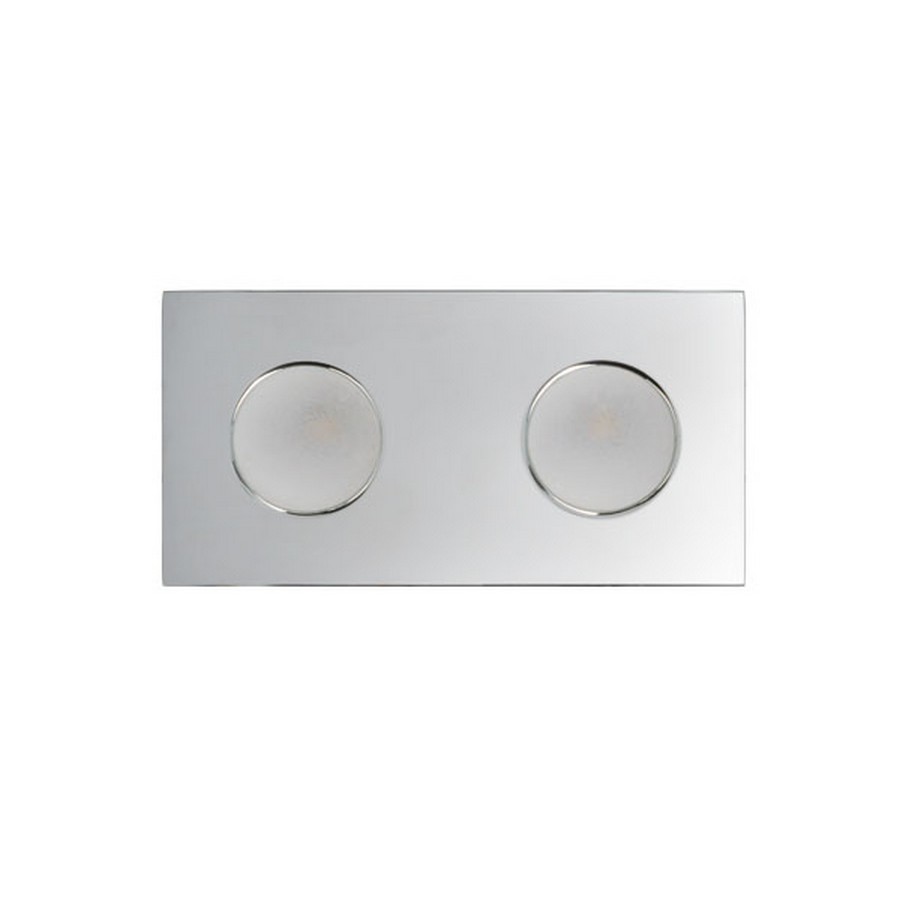

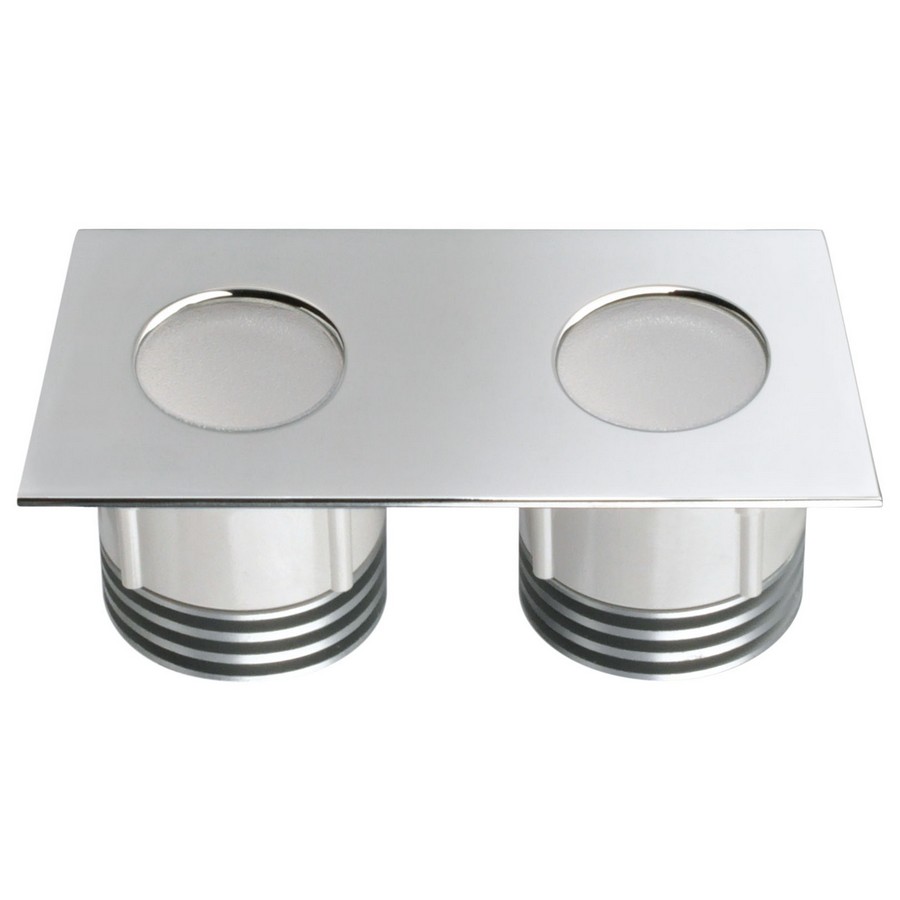

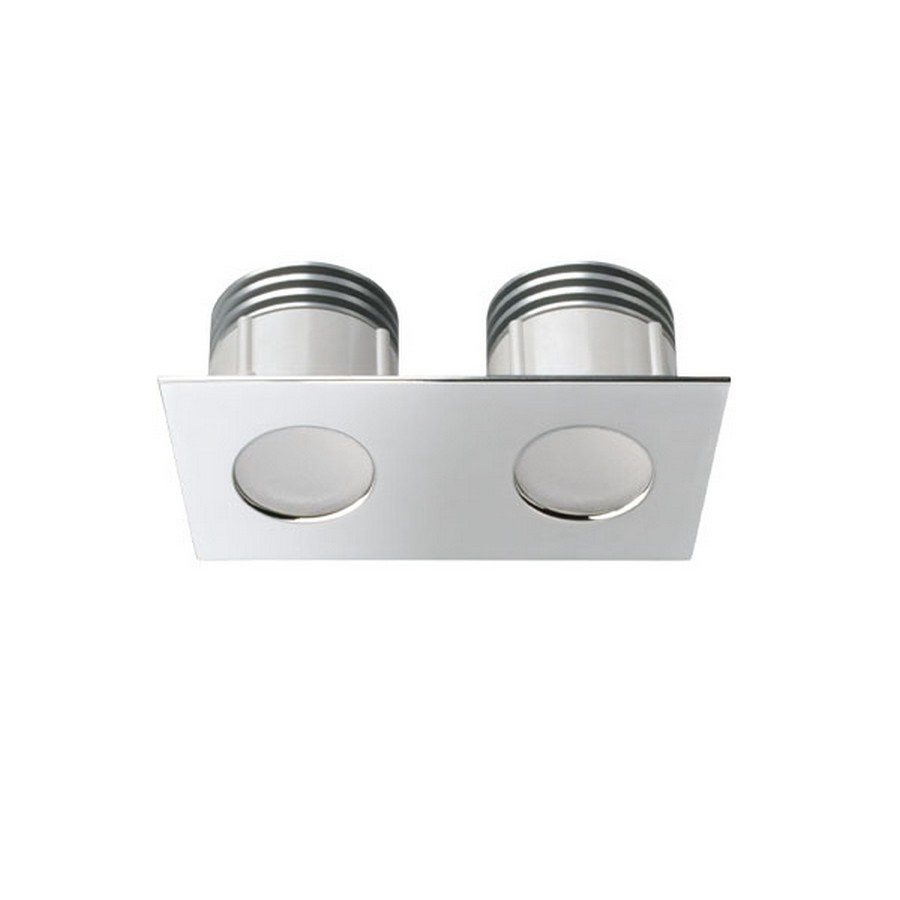

The Erica is an IP65 Power LED downlight. It has a 100mm x 50mm rectangular trim composed of AISI 316 stainless steel and frosted lens. It is available in daylight and warm led bulb colors. It has a 1, 2 and 3 light option.

Additional information

Weight N/A
Dimensions 0.25 × 0.25 × 0.25 in
Bulb Color

Day, Warm

Trim Finish

Satin, Stainless Steel

Specifications

Specifications

Power type Constant Voltage
Light source 2 x POWER LED
Supply 10 ÷ 30 V
Power consumption 4 W
Current consumption 0.17 A @ 24V
Average lifetime 50,000 h
Dimmable Yes
IP security degree 65

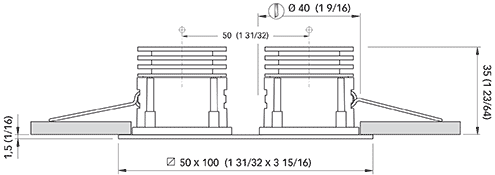

Dimensions

Frame RECT.  1 31/32″ X 3 15/16″
Recess 1 3/8″
Hole Ø 1 9/16″

Design

Frame material AISI 316 S/STEEL
Finish CHROMED / SATIN
Light colors DAYLIGHT / WARM WHITE
Mounting SPRINGS

Photometric data


 DAYLIGHT 3800-4200 °K
Angle 40°
Light flow 161 lm
Light Beam- distance 1 m Ø 0.7 m 236.4 lux
Light Beam- distance 2 m Ø 1.4 m 59.1 lux
Light Beam- distance 3 m Ø 2.1 m 26.3 lux

WARM WHITE 2800-3100 °K
Angle 40°
Light flow 141 lm
Light Beam – distance 1 m Ø 0.7 m 207.4 lux
Light Beam- distance 2 m Ø 1.4 m 51.8 lux
Light Beam- distance 3 m Ø 2.1 m 23 lux

Certifications

LED Protection: Spike protected ± 500V Polarity sensitive: YES
