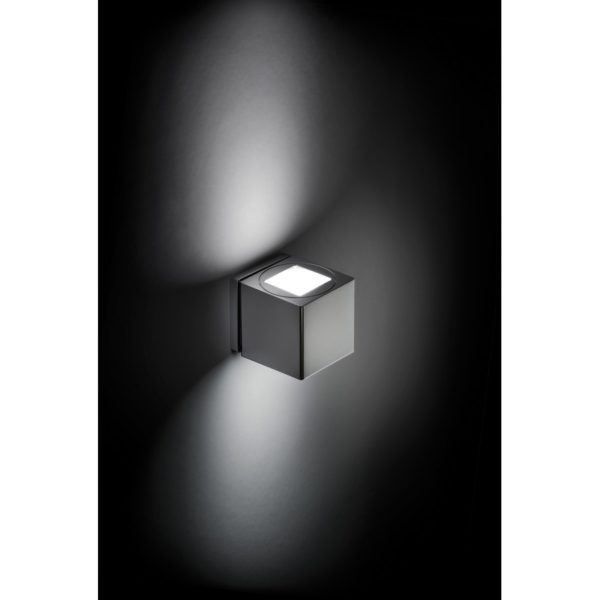

QB-Compass 2L

$520.00

Clear
SKU: QB COMPASS 2L Categories: , ,

Description

The QB-Compass is an IP40 adjustable wall light. It is available with 1 or 2 lights in warm or daylight bulbs colors. It is composed of chromed aluminum for a nice polished finish.

Additional information

Weight N/A
Dimensions 2 × 2 × 2 in
Light Color

2+2W Warm, 2+2W Daylight

Trim

Chrome

Specifications

Specifications


Power type Constant Voltage
Light source 44 x LED
Supply 10 ÷ 30 V
Power consumption 2+2 W
Current consumption      0.15 A @ 24 V
Average lifetime 50,000 h
Dimmable Yes
IP security degree 40


Design


Frame material      ALUMINUM
Finish CHROMED
Light colors DAYLIGHT / WARM WHITE
Mounting SCREWS
Adjustable 350°


Photometric data


 DAYLIGHT 3800-4200 °K
Angle 40°
Light flow 190 lm
Efficiency 48 lm/W
Light Beam – distance 1 m      Ø 0.73 m 134.7 lux
Light Beam- distance 2 m Ø 1.45 m 33.7 lux
Light Beam- distance 3 m Ø 2.18 m 15 lux


 WARM WHITE 2800-3100 °K
Angle 40°
Light flow 170 lm
Efficiency 43 lm/W
Light Beam- distance 1 m Ø 0.73 m 122.5 lux
Light Beam- distance 2 m Ø 1.45 m 30.6 lux
Light Beam – distance 3 m      Ø 2.18 m 13.6 lux


Certifications



LED Protection: Spike protected ± 500V Polarity sensitive: YES
