T6411 Reversing Solenoid Unit
T6411-12 Reversing Solenoid 115A 12V IP66
Dear Customer,
To place an order or request information, please contact us.
We will put you in touch with the distributor nearest you.
Description

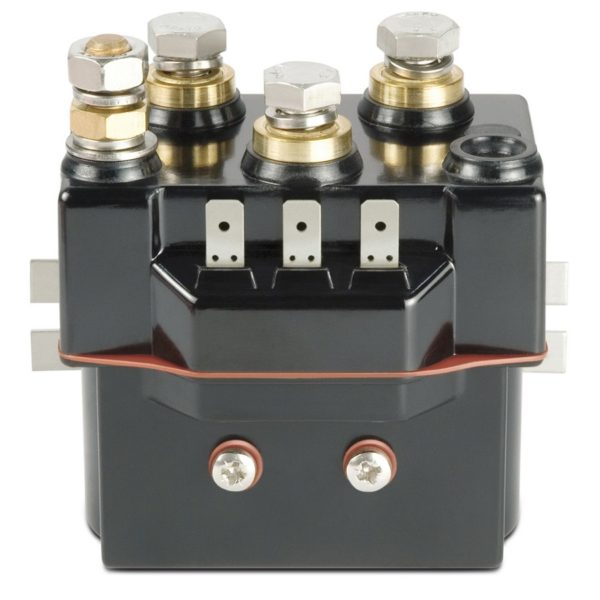

The Quick T6411-12 is a 12V reversing contactor that is lower wattage and able to operate electric motors for windlasses and capstans. Due to the external connections, this unit is very easy to install. The casing of this unit is IP66 waterproof. This unit is sold complete with the solenoid unit and product sheet.
| Motor Wattage | 12V | 24V |
| 150 | T6411-12 | – |
| 250 | T6411-12 | – |
| 300 | T6415-12 | T6415-24 |
| 500 | T6415-12 | T6415-24 |
| 700 | T6315-12 | T6315-24 |
| 1000 | T6315-12 | T6315-24 |
| 1400 | T6315-12 | T6315-24 |
| 1500 | T6315-12 | T6315-24 |
| 1700 | T6315-12 | T6315-24 |
| 2000 | – | T6315-24 |
| 2300 | – | T6315-24 |
| 3000 | – | T6315-24 |
Additional information
| Weight | .5 lbs |
|---|---|
| Dimensions | 1 × 1 × 1 in |
