DP2E Vertical Windlass with drum
DP2E Vertical Windlass with Drum - Image 2

DP2E Vertical Windlass with Drum

$2,795.10 – $3,134.51

SKU: DP2E D - Categories: , Tag:

Description

The Prince DP2E is a vertical application windlass perfect for boats with limited deck space. This unit is composed of AISI 316 stainless steel which is a durable element when dealing with harsh marine environments. Dp2E comes in different variations such as with or without the drum capstan for rope retrieval and various gypsy sizes for rope and chain retrieval. Additional features include an IP67 watertight motor, epicyclical gearbox, inspection lid, and easy drop-in installation. The unit is sold complete with the windlass, solenoid unit, clutch handle and mounting hardware.

For boats from 6 to 12 meters (20 – 33 ft)
DP2E 500W 6-9 m 18-29 ft
DP2E 800W 8-12 m 26-38 ft



Gypsy
 6 mm 7 mm – 1/4″ 8 mm 5/16″
Chain 6 mm 6 mm 7 mm 7 mm 1/4″ 1/4″ 8 mm 8 mm 5/16″
DIN 766 ISO DIN 766 ISO G4 BBB DIN 766 ISO G4
Rope 1/2″ 1/2″ 1/2″ 1/2″

Additional information

Weight N/A

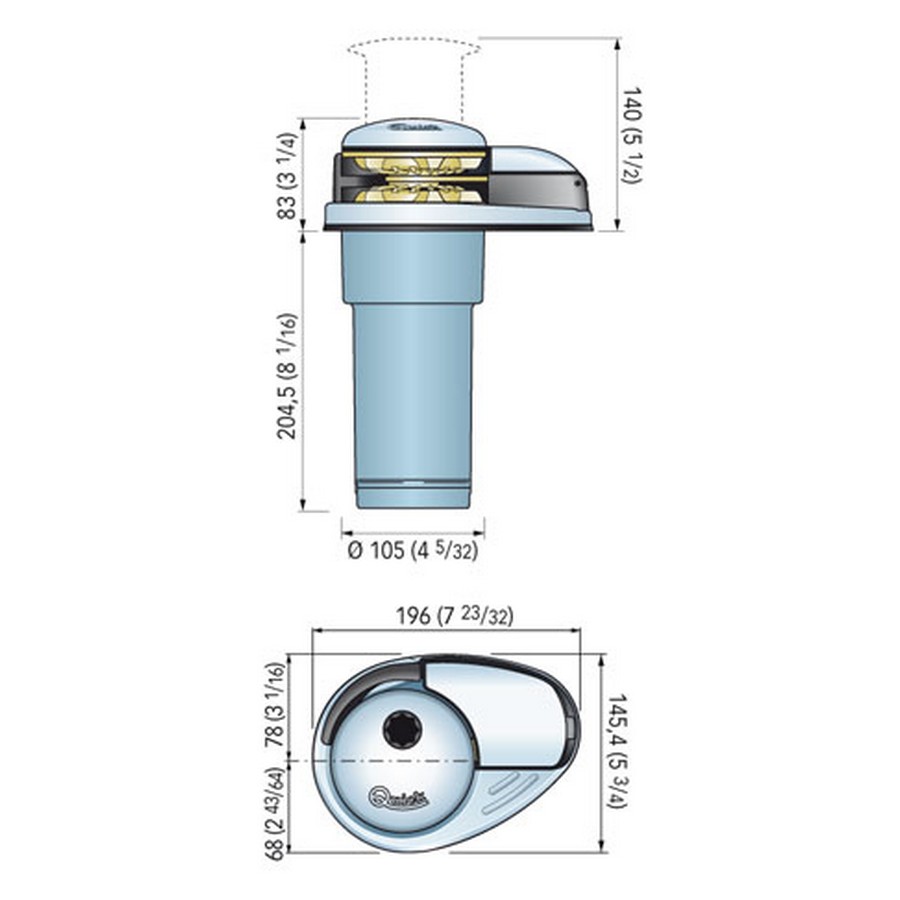

Dimensions 17 × 17 × 11 in
Drum

Gypsy Size

, ,

Series

Wattage

500W, 800W
Voltage

12V, 24V

Specifications

Standard Version DP2E 600/600D DP2E 1000/1000D DP2E 1100/1100D
Motor Power 500W 800W 800W
Motor Supply Voltage 12V 12V 24V
Maximum Pull 1366.9 lb 1807.8 lb 1060 lb
Maximum Working Load 440.9 lb 639.3 lb 209.4 lb
Working Load 143.3 lb 209.4 lb 209.4 lb
Current Absorption @ working load 60A 84 A 53 A
Maximum Chain Speed 75.1 ft/min 73.8 ft/min 74.1 ft/min
Maximum chain speed @ working load 61.0 ft/min 49.9 ft/min 55.1 ft/min
Weight DP- without drum 18.3 lbs 18.3 lb 18.3 lb
Weight DP – with drum 20.1 lbs 20.1 lb 20.1 lb
