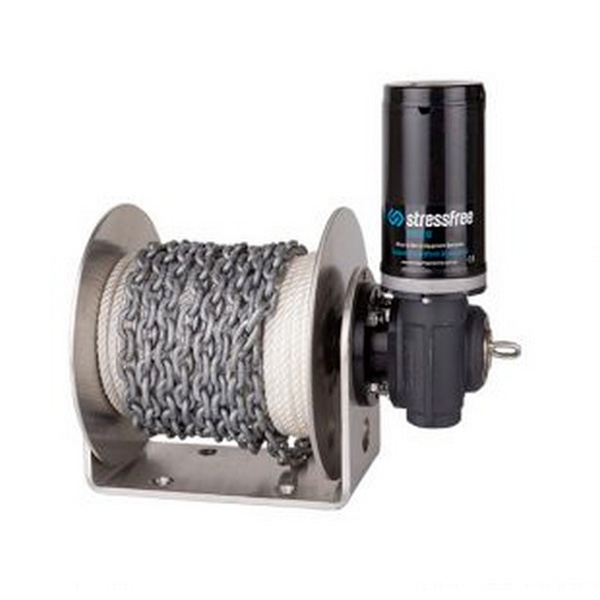

SF Mini Extra Wide Windlass


SKU: STRESS FREE MINI EW - Categories: , Tag:


  • The SF Mini Extra Wide Windlass is just like having an extra crew member tending the anchor for you raising and lowering your anchor quickly, safely and effortlessly.
  • There is no need to tie off your anchor rope, no racing down to the bow to drop or raise the anchor.
  • No tangled rope and chain in the anchor well, no strained back or frustrated amateur crew, no rushing around the boat to move your mooring.
  • Simply drive the boat to where you want to fish, push a button and the anchor is lowered quickly without fuss or bother, and it is even automatically secured.
  • You can lower and retrieve your anchor rope using our Australian made electric anchor winches at a rate between 70 and 90 feet per minute!
  • The revolutionary Stress-Free Marine electric drum anchor winch is available in a range of capacities, and there’s one designed just to fit into your boat.

Additional information

Weight N/A
Dimensions 17 × 17 × 11 in

Mini Extra Wide, Mini Extra Wide Free Fall






NG Series Mini 500 – Free Fall
Suitable for boats from 4 – 6   meters
Fits neatly into the anchor   well
500-watt motor
The motor can be mounted at 30, 45 and 90 degrees to suit the configuration of the anchor well
Constructed from 316 marine grade stainless steel
Maximum lifting capacity 195 kilos (when the drum diameter is small)
Holding capacity at anchor is 1800 kilos
Rated to 80 amps
Normal running the Stress-Free will use 25 – 30 amps and under load up to 55 amps
To protect the motor, the   circuit breaker will trip out if there is a power overload (for example the   anchor is stuck on the bottom)
Recommend dual batteries with the battery switch on BOTH
Can be deck mounted
The gearbox mounting holes in the mounting bracket allow the motor and drive to be installed at 4 angles to suit different anchor well configurations.
 Another 8 adjustment angles are available at 30º and 45º from each of the basic 4 mounting holes.
NB: (the motor cannot be mounted in the horizontal position to face the baseplate).
NB: The amount of chain can be lengthened or shortened to meet individual needs.
 In these situations, the amount of rope must be tailored to ensure there is a maintained clearance between the chain and the baseplate.
