Ted C IP

Ted C IP Dimensions

Ted C IP

Price range: $80.95 through $107.10

Bulb Color

Trim Finishes

Clear

SKU: TED-C-IP Categories: LED Lighting, Lighting, Recessed Downlights

Description

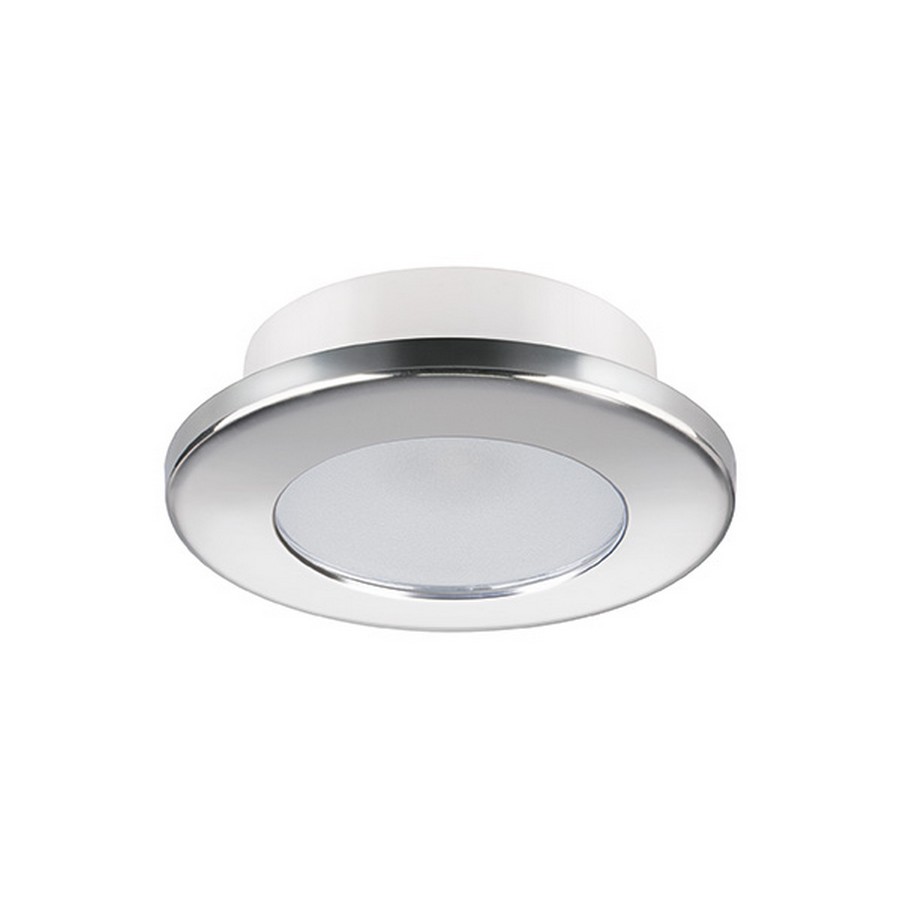

The Ted Club IP is an IP66 recessed Power LED downlight. It has an 72mm round trim composed of AISI 316 stainless steel and a frosted lens.

Additional information

Weight	N/A
Dimensions	0.25 × 0.25 × 0.25 in
Bulb Color	Day, Warm, Red, Blue, Day/Red, Day/Blue, Warm/Red, Warm/Blue
Trim Finishes	White, Satin, Stainless Steel

Specifications

Specifications

Power type	Constant Voltage
Light source	HIGH LUMINOSITY
Supply	10 ÷ 30 V
Power consumption	2 W
Current consumption	0.09 A @ 24V
Average lifetime	50,000 h
IP security degree	66

Dimensions

Frame	Ø 2 53/74″
Recess	35/64″
Hole	Ø 2 1/8″

Design

Frame material	AISI 316 S/STEEL
Finish	MIRROR POLISHED / SATIN / WHITE 9010
Light colors	DAYLIGHT / WARM WHITE
Mounting	SCREWS

Photometric data

DAYLIGHT	3800-4200 °K
Angle	100°
Light flow	115 lm
Efficiency	58 lm/W
Light Beam – distance 1 m	Ø 2.43 m	44.4 lux
Light Beam- distance 2 m	Ø 4.85 m	11.1 lux
Light Beam- distance 3 m	Ø7.28 m	4.9 lux

WARM WHITE	2800-3100 °K
Angle	100°
Light flow	105 lm
Efficiency	58 lm/W
Light Beam – distance 1 m	Ø 2.43 m	40.8 lux
Light Beam- distance 2 m	Ø 4.85 m	10.2 lux
Light Beam- distance 3 m	Ø 7.28 m	4.5 lux

Certifications

Dimensions in mm (inches)

DIMMERS

LDIM BUS 2CH

LDIM BUS 2CH

Basic item, for power and functionality alternatives, consult section ACCESSORIES

LED Protection: Spike protected ± 500V Polarity sensitive: YES
