Danae LP 4W
$470.12
Danae Warm 4W 1030V White
Description

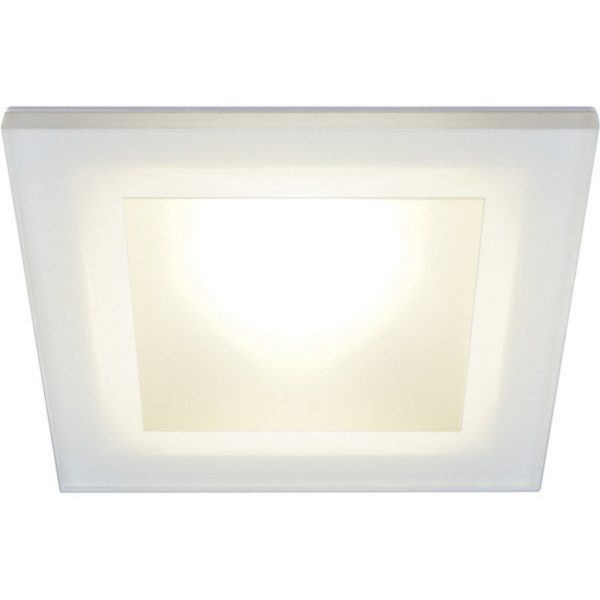

The Danae is an IP65 recessed Power LED downlight. It has an 111mm square trim composed of tempered glass, which gives it a refined look. It is available in warm and daylight led bulb colors.
Additional information
| Weight | N/A |
|---|---|
| Dimensions | 0.25 × 0.25 × 0.25 in |
| Options | Danea LP LED Warm 7W 1030 White |
Specifications
Specifications
| Power type | Constant Current |
| Light source | 0 x POWER LED |
| Supply | 10 ÷ 30 V |
| Power consumption | 7 W |
| Current consumption | 0.29 A @ 24V |
| Average lifetime | 50,000 h |
| Dimmable | Yes |
| IP security degree | 40 |
Dimensions
| Frame | SQUARE 4 3/8″ |
| Recess | 2 17/64″ |
| Hole | SQ. 3 1/2″ x 3 1/2″ |
Design
| Frame material | GLASS |
| Finish | – |
| Light colors | DAYLIGHT / WARM WHITE |
| Mounting | SPRINGS |
Photometric data
DAYLIGHT
| 3800-4200 °K | ||
| Angle | 85° | |
| Light flow | 274 lm | |
| Light Beam- distance 1 m | Ø 1.81 m | 130.7 lux |
| Light Beam- distance 2 m | Ø 3.63 m | 32.7 lux |
| Light Beam- distance 3 m | Ø 5.44 m | 14.5 lux |
WARM WHITE
| 2800-3100 °K | ||
| Angle | 85° | |
| Light flow | 264 lm | |
| Light Beam- distance 1 m | Ø 1.81 m | 125.7 lux |
| Light Beam- distance 2 m | Ø 3.63 m | 31.4 lux |
| Light Beam – distance 3 m | Ø 5.44 m | 14 lux |
Certifications
   |
Dimensions in mm (inches)
DIMMERS
LDIM BUS 2CH
LDIM BUS 2CH
Basic item, for power and functionality alternatives, consult section ACCESSORIES
LED Protection: Spike protected ± 500V Polarity sensitive: YES
