Sonia 9W

$237.00

SKU: FASP2882B12CE00 Categories: , ,

Description

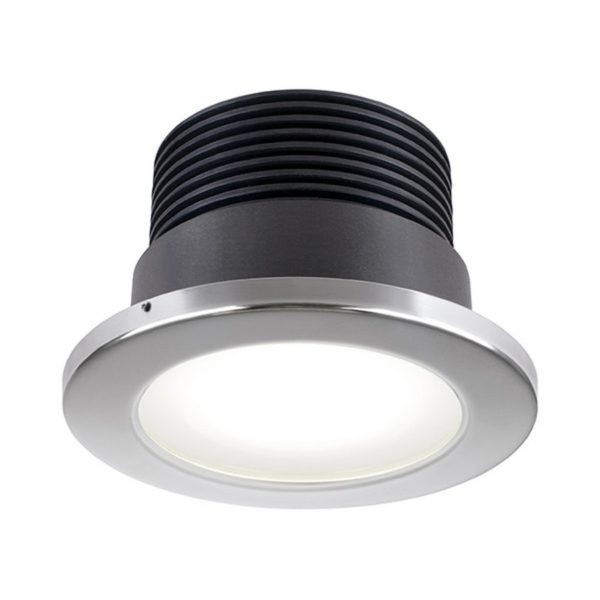

The Sonia is an IP66 recessed Power LED downlight. It has a 105mm round trim composed of AISI 316 stainless steel and a frosted lens. It is available with a daylight or warm LED bulb.

Additional information

Dimensions 0.25 × 0.25 × 0.25 in
Light Color

Warm

Trim

White

Specifications

Specifications

Power type Constant Voltage
Light source 2 x POWER LED
Supply 10 ÷ 30 V
Power consumption 9 W
Current consumption 0.38 A @ 24V
Average lifetime 50,000 h
Dimmable Yes
IP security degree 66

Dimensions

Frame Ø 4 9/64″
Recess 2 17/64
Hole Ø 3 1/8″

Design

Frame material AISI 316 S/STEEL
Finish MIRROR POLISHED / SATIN / WHITE 9010
Light colors DAYLIGHT / WARM WHITE
Mounting SCREWS

Photometric data


DAYLIGHT 3800-4200 °K
Angle 50°
Light flow 395 lm
Efficiency 39 lm/W
Light Beam – distance 1 m Ø 0.85 m 357.4 lux
Light Beam – distance 2 m Ø 1.71 m 93.9 lux
Light Beam – distance 3 m Ø 2.56 m 41.1 lux

 WARM WHITE 2900-3100 °K
Angle 50°
Light flow 365 lm
Efficiency 36 lm/W
Light Beam – distance 1 m Ø 0.85 m 347.6 lux
Light Beam – distance 2 m Ø 1.71 m 86.9 lux
Light Beam – distance 3 m Ø 2.56 m 38.6 lux

Certifications

Dimensions in mm (inches)

DIMMERS

LDIM BUS 2CH

LDIM BUS 2CH

LDIM BUS 2CH

Basic item, for power and functionality alternatives, consult section ACCESSORIES
LED Protection: Spike protected ± 500V Polarity sensitive: YES
