Description

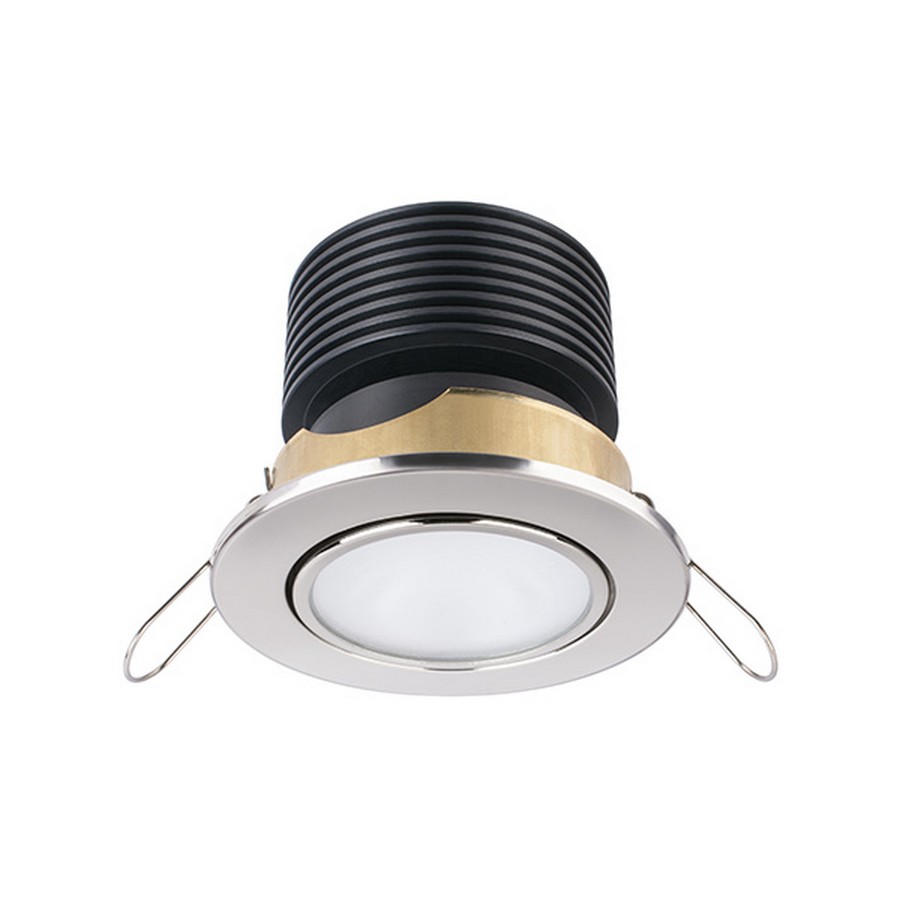

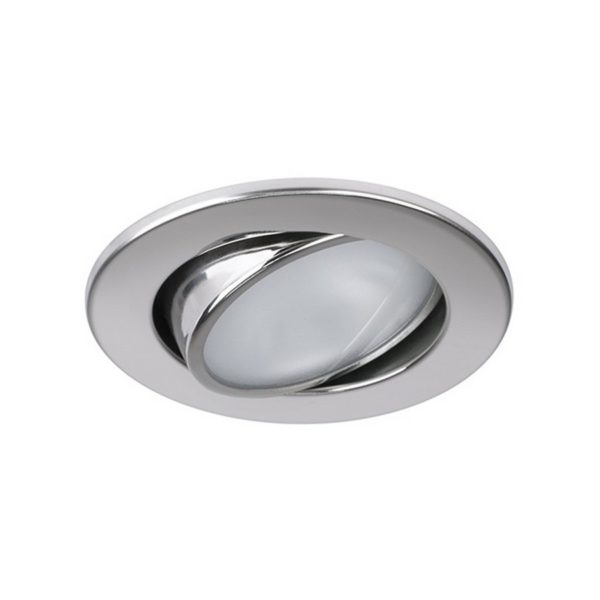

The Nikita is an IP40 recessed Power LED adjustable downlight. It has an 85mm round trim composed of AISI 316 stainless steel and a frosted lens. It is available with either the daylight or warm led bulb.
Specifications
Specifications
| Power type |
Constant Voltage |
| Light source |
0 x POWER LED |
| Supply |
10 ÷ 30 V |
| Power consumption |
9 W |
| Current consumption |
0.38 A @ 24V |
| Dimmable |
Yes |
| IP security degree |
40 |
Dimensions
| Frame |
Ø 3 11/32″ |
| Recess |
2 51/64” |
| Hole |
Ø 2 3/4″ |
Design
| Frame material |
AISI 316 S/STEEL |
| Finish |
MIRROR POLISHED / SATIN / WHITE 9010 |
| Light colors |
DAYLIGHT / WARM WHITE |
| Mounting |
SPRINGS |
| Adjustable |
23° |
Photometric data
| DAYLIGHT |
3800-4100 °K |
| Angle |
45° |
| Light flow |
388 lm |
| Efficiency |
43 lm/W |
| Light Beam- distance 1 m |
Ø 0.79 m |
413.9 lux |
| Light Beam- distance 2 m |
Ø 1.58 m |
103.5 lux |
| Light Beam – distance 3 m |
Ø 2.37 m |
46 lux |
| WARM WHITE |
2800-3100 °K |
| Angle |
45° |
| Light flow |
359 lm |
| Efficiency |
40 lm/W |
| Light Beam – distance 1 m |
Ø 0.79 m |
383.2 lux |
| Light Beam – distance 2 m |
Ø 1.58 m |
95.8 lux |
| Light Beam – distance 3 m |
Ø 2.37 m |
42.6 lux |
Certifications
Dimensions in mm (inches)
DIMMERS
LDIM BUS 2CH
LDIM BUS 2CH
Basic item, for power and functionality alternatives, consult section ACCESSORIES
LED Protection: Spike protected ± 500V Polarity sensitive: YES
