Erica 2

Name: Erica 2
SKU: ERICA 2 -

Bulb Color

Trim Finish

Clear

Dear Customer,

To place an order or request information, please contact us.
We will put you in touch with the distributor nearest you.

SKU: ERICA 2 - Categories: LED Lighting, Lighting, Recessed Downlights

Description

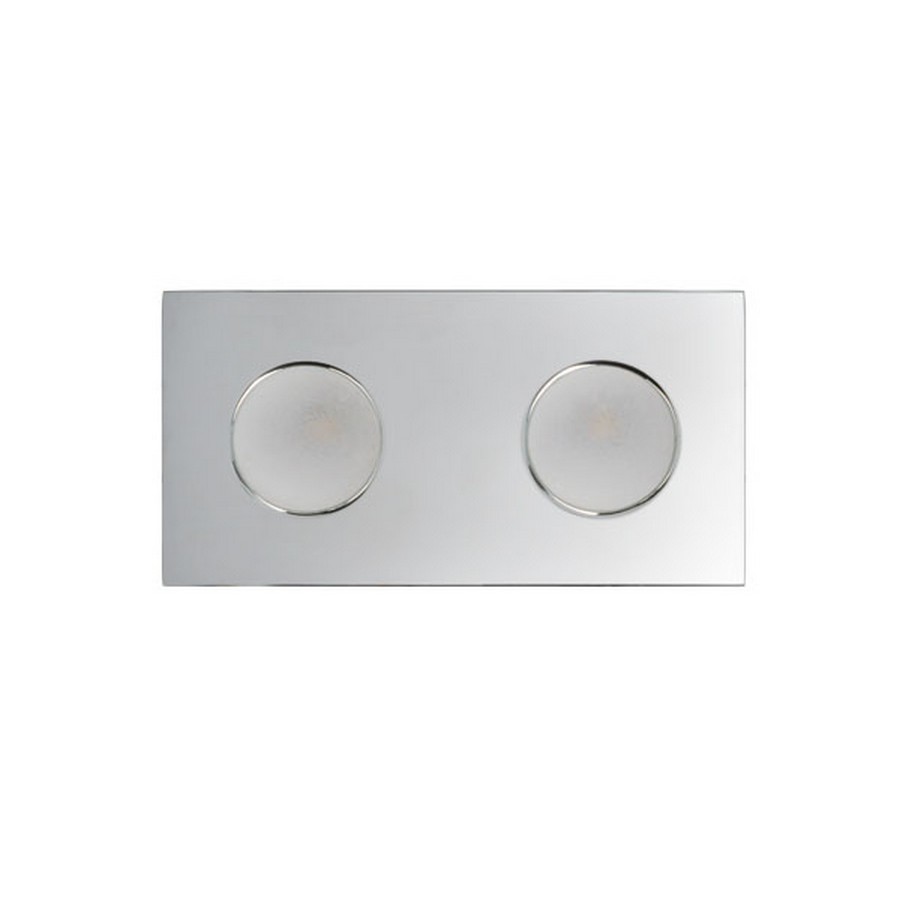

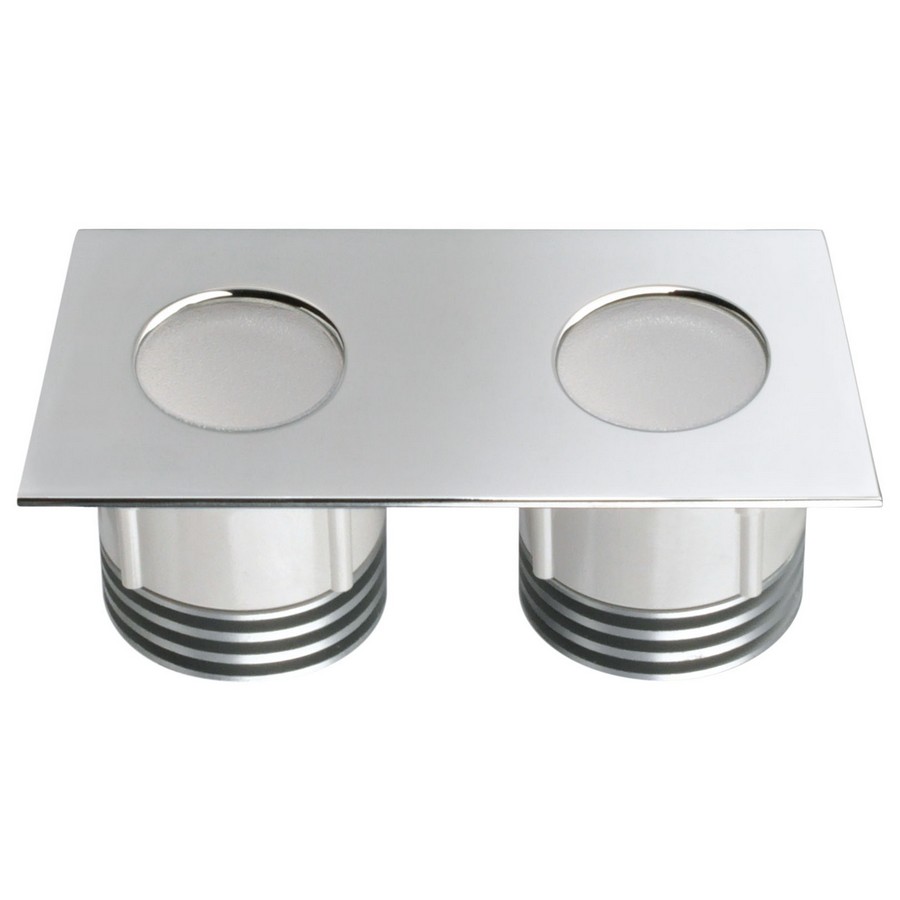

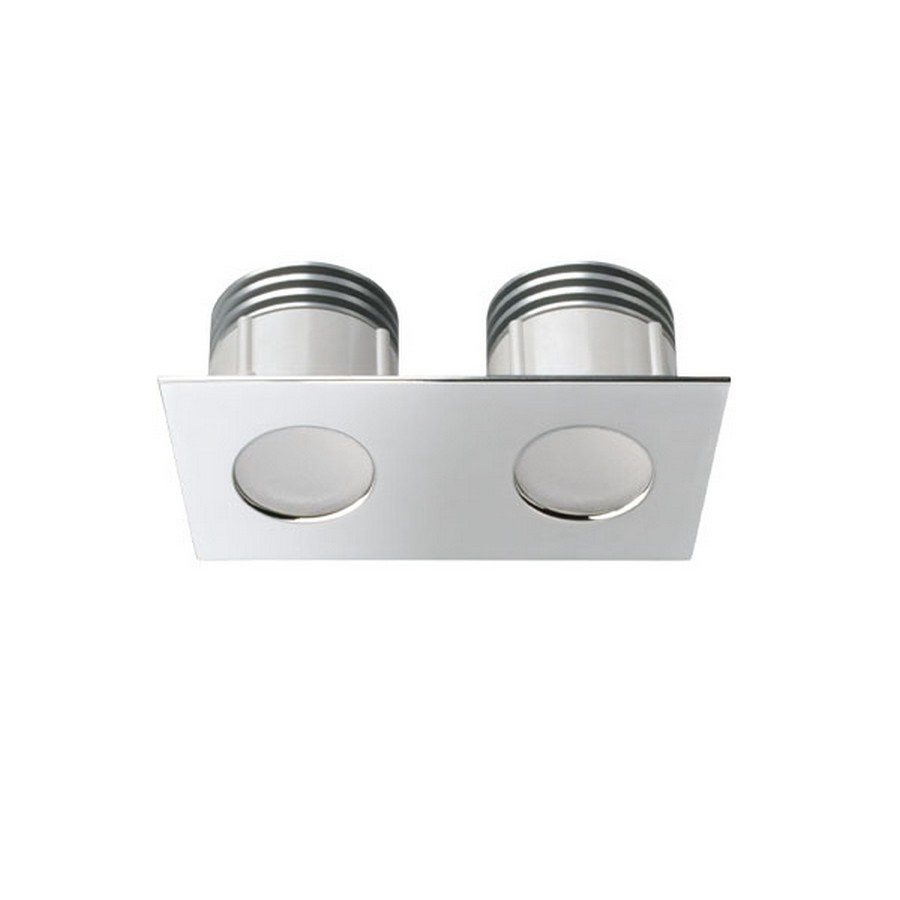

The Erica is an IP65 Power LED downlight. It has a 100mm x 50mm rectangular trim composed of AISI 316 stainless steel and frosted lens. It is available in daylight and warm led bulb colors. It has a 1, 2 and 3 light option.

Additional information

Weight	N/A
Dimensions	0.25 × 0.25 × 0.25 in
Bulb Color	Day, Warm
Trim Finish	Satin, Stainless Steel

Specifications

Power type	Constant Voltage
Light source	2 x POWER LED
Supply	10 ÷ 30 V
Power consumption	4 W
Current consumption	0.17 A @ 24V
Average lifetime	50,000 h
Dimmable	Yes
IP security degree	65

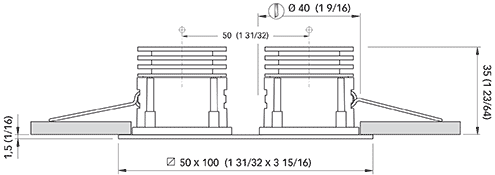

Dimensions

Frame	RECT. 1 31/32″ X 3 15/16″
Recess	1 3/8″
Hole	Ø 1 9/16″

Design

Frame material	AISI 316 S/STEEL
Finish	CHROMED / SATIN
Light colors	DAYLIGHT / WARM WHITE
Mounting	SPRINGS

Photometric data

DAYLIGHT	3800-4200 °K
Angle	40°
Light flow	161 lm
Light Beam- distance 1 m	Ø 0.7 m	236.4 lux
Light Beam- distance 2 m	Ø 1.4 m	59.1 lux
Light Beam- distance 3 m	Ø 2.1 m	26.3 lux

WARM WHITE	2800-3100 °K
Angle	40°
Light flow	141 lm
Light Beam – distance 1 m	Ø 0.7 m	207.4 lux
Light Beam- distance 2 m	Ø 1.4 m	51.8 lux
Light Beam- distance 3 m	Ø 2.1 m	23 lux
