Description

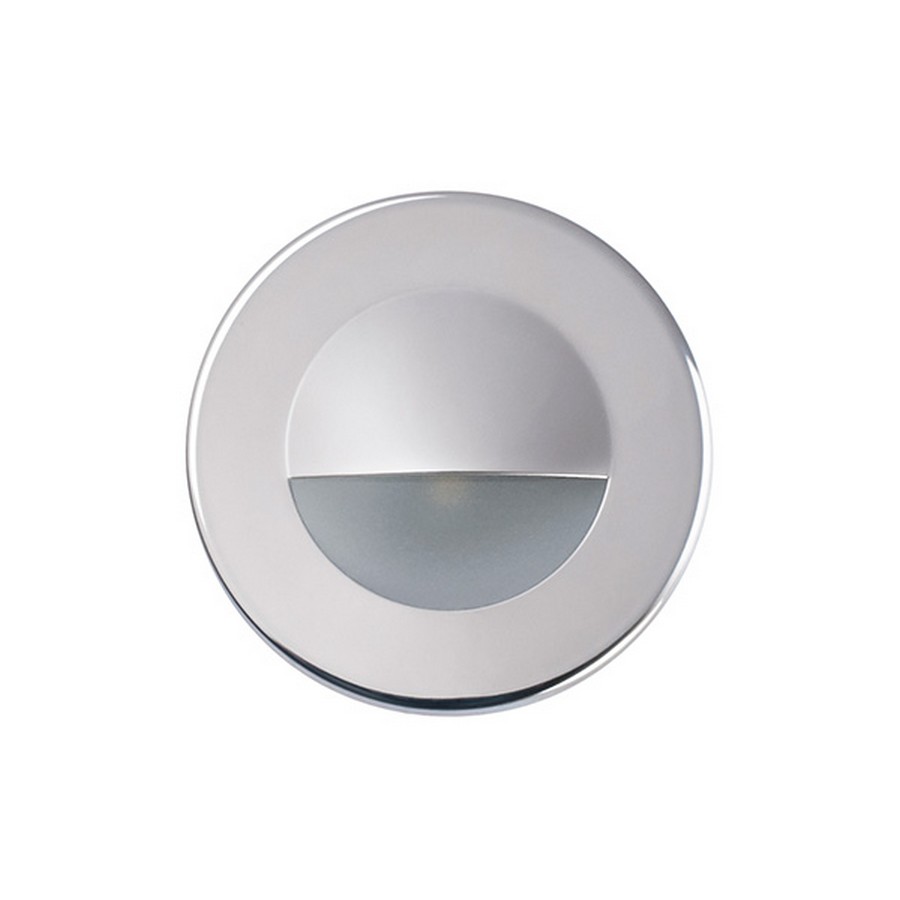

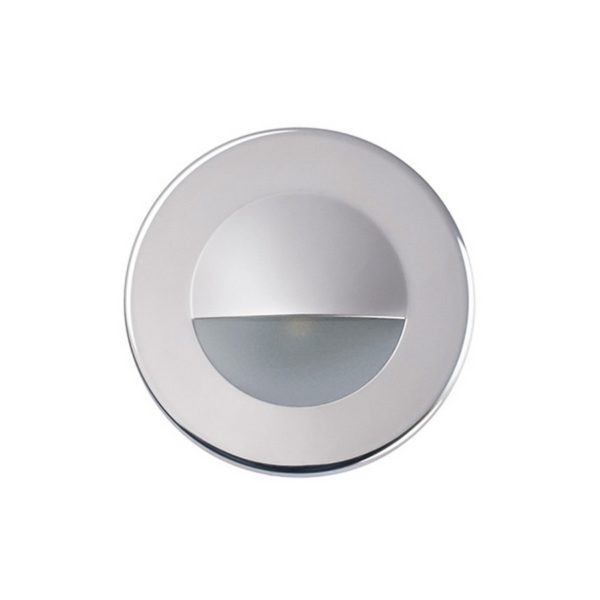

The Venus 72 4W is an IP66 led courtesy light. It has a 88mm round trim composed of AISI stainless steel.
Specifications
Specifications
| Power type |
Constant Voltage |
| Light source |
HIGH LUMINOSITY |
| Supply |
10 ÷ 30 V |
| Power consumption |
4 W |
| Current consumption |
0.16 A @ 24V |
| Average lifetime |
50,000 h |
| Dimmable |
Yes |
| IP security degree |
66 |
Dimensions
| Frame |
Ø 2 53/74″ |
| Recess |
51/64″ |
| Hole |
Ø 2 1/8″ |
Design
| Frame material |
AISI 316 S/STEEL |
| Finish |
MIRROR POLISHED / SATIN / WHITE 9010 |
| Light colors |
DAYLIGHT / WARM WHITE / BLU |
| Mounting |
SCREWS |
Photometric Data
| DAYLIGHT |
3800-4100 °K |
| Light flow |
125 lm |
| Efficiency |
31 lm/W |
| WARM WHITE |
2900-3100 °K |
| Light flow |
115 lm |
| Efficiency |
28 lm/W |
Certifications
Dimensions in mm (inches)
LED Protection: Spike protected ± 500V Polarity sensitive: YES
