Description

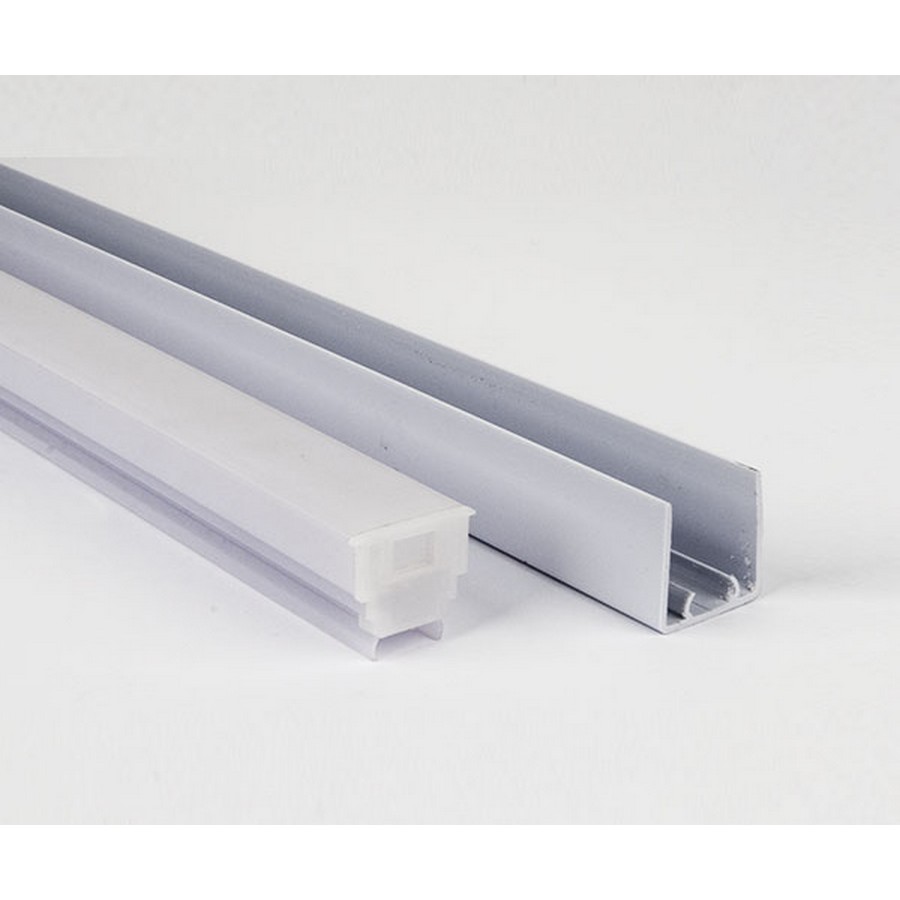

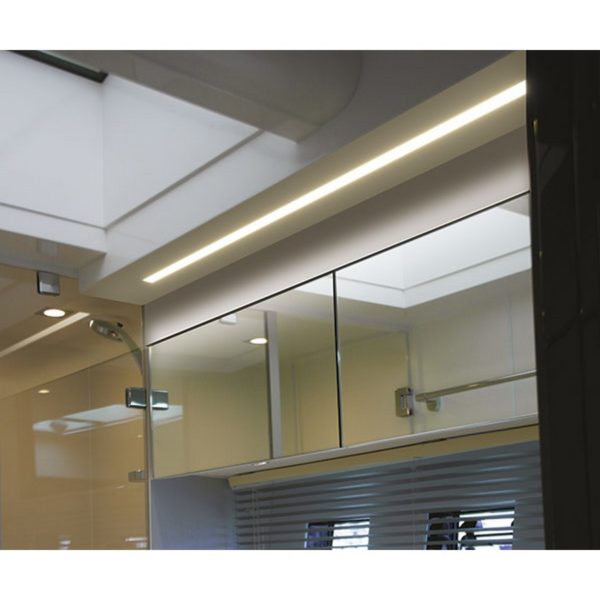

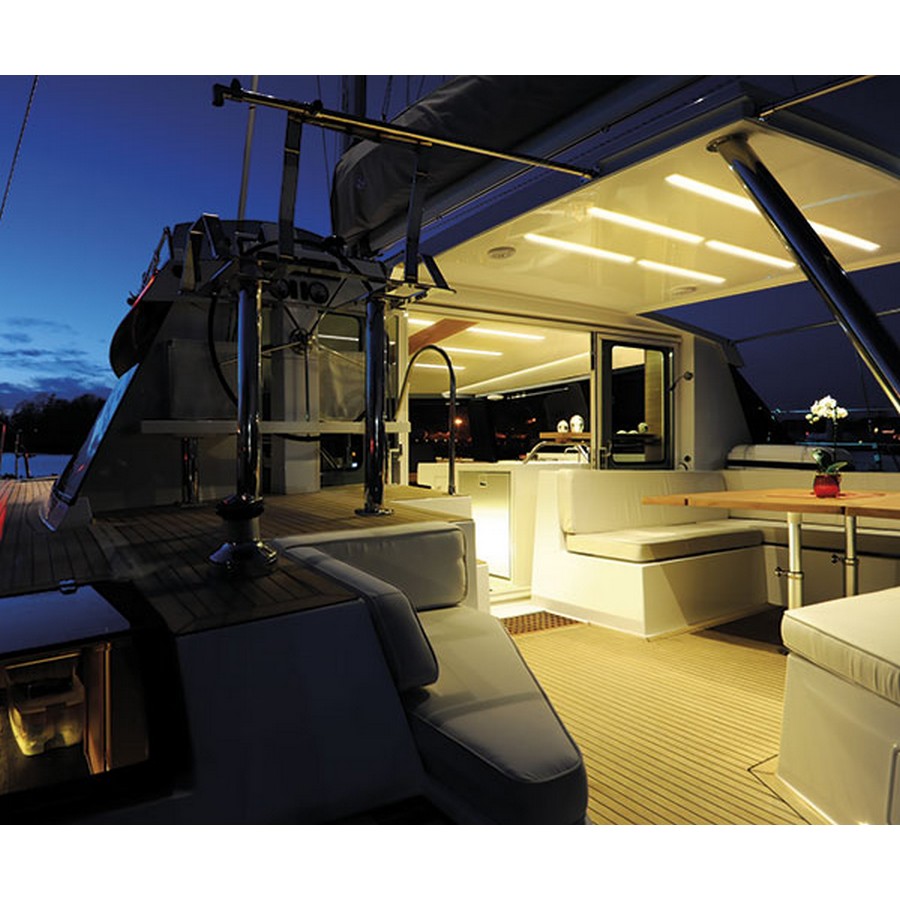

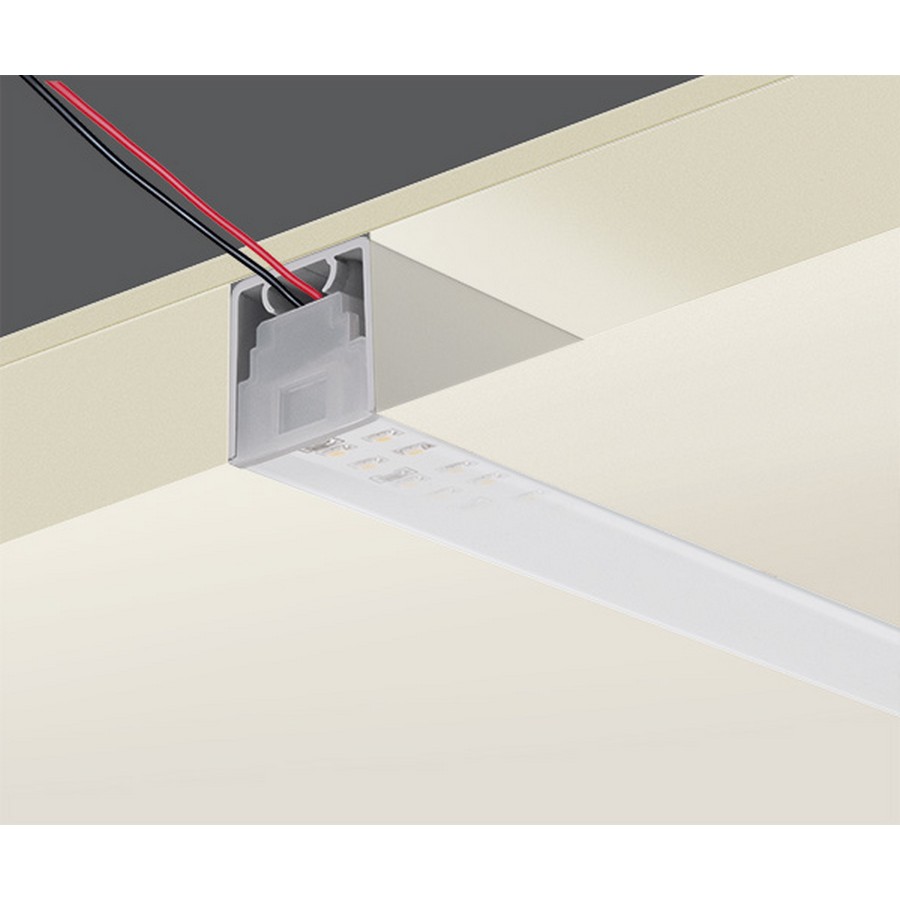

Maxibar is a LED device whose installation is completely built-in by means of a suitable support supplied with cable outlets.The bar, including a powerful strip LED is a high-thickness Plexiglas block.The surface which diffuses the light is opaque.The installation is easy and quick, in fact the bar just clicks into place inside the support. Maxibar is a very impressing solution, which effectively lights up both interior and exterior environments. Maxibar is given with a syandard length of 1m, on request we can produce it in different lengths._x000D_
_x000D_
_x000D_
_x000D_
Specifications
Specifications
| Power type |
Constant Voltage |
| Light source |
LED |
| Supply |
20 ÷ 30 V |
| Power consumption |
18 W/m |
| Current consumption |
0.11 A/m @ 24V |
| Average lifetime |
50,000 h |
| Dimmable |
Yes |
| IP security degree |
66 |
Design
| Frame material |
POLYCARBONATE |
| Finish |
OPAQUE |
| Light colors |
DAYLIGHT / WARM WHITE |
| Mounting |
SCREWS |
| DAYLIGHT |
3800-4200 °K |
| CRI |
|
| Light flow |
633 lm |
| Efficiency |
49 lm/W |
| WARM WHITE |
2800-3100 °K |
| Angle |
≥ 80 |
| Light flow |
580 lm |
Certifications
Dimensions in mm (inches)
DIMMERS
LDIM BUS 2CH
LDIM BUS 2CH
Basic item, for power and functionality alternatives, consult section ACCESSORIES
LED Protection: Spike protected ± 500V Polarity sensitive: YES
