Tab CPA3

$52.00

Clear

Description

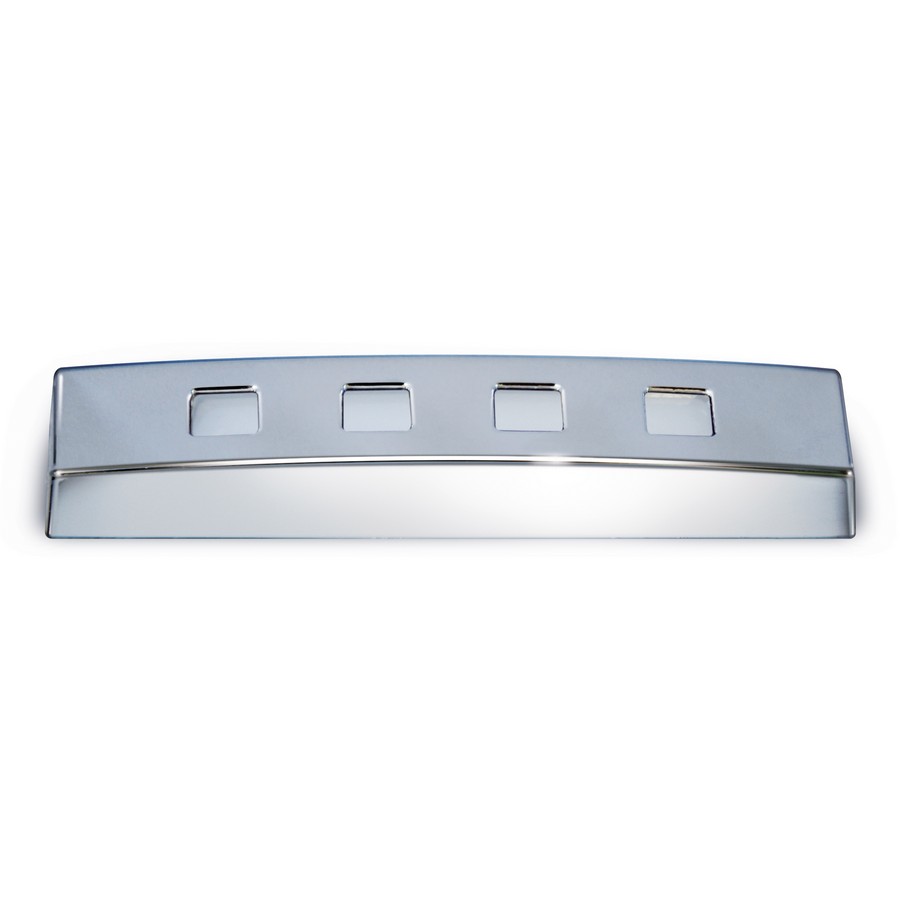

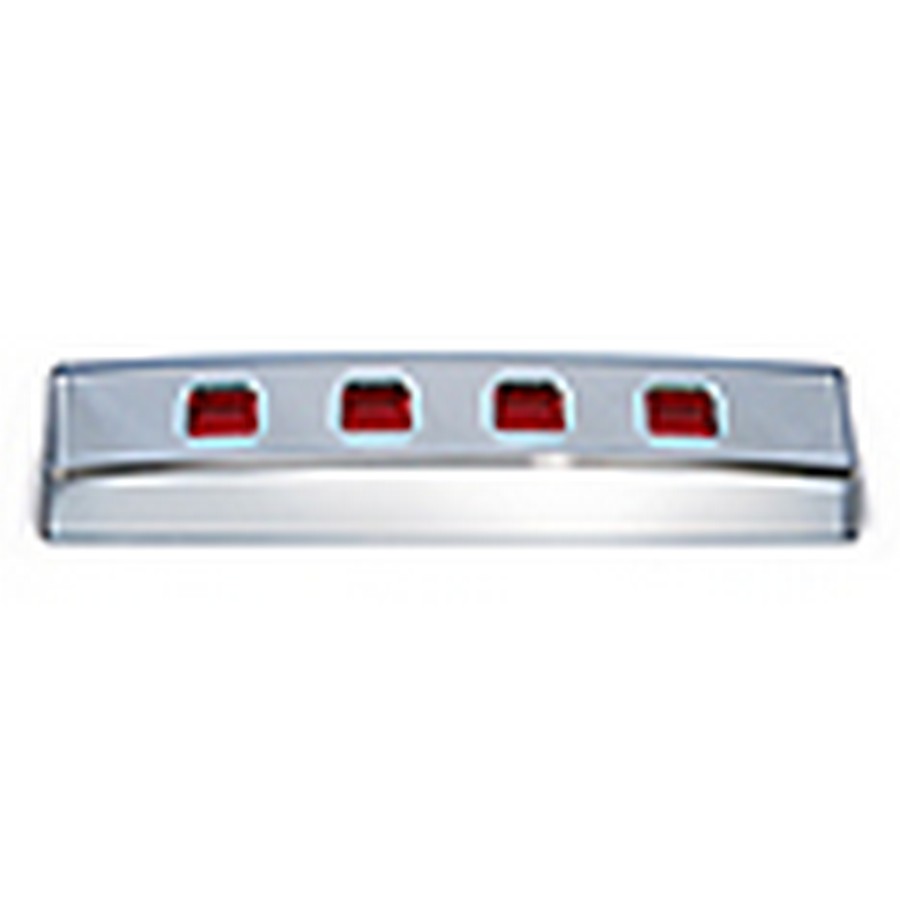

The Tab is an IP65 LED courtesy light. It has a 68mm x14mm rectangular cover composed of AISI stainless steel and UV stabilized techno-polymer. This unit is available in daylight, blue, and red led bulb colors.

Additional information

Weight N/A
Dimensions 0.25 × 0.25 × 0.25 in
Light Color

Daylight, Blue, Red

Trim

Chrome

Specifications

Specifications


Power type Constant Voltage
Light source 4 x LED
Supply 10 ÷ 30 V
Power consumption 1 W @ 24 V
Current consumption      0.04 A
Average lifetime 50,000 h
IP security degree 65

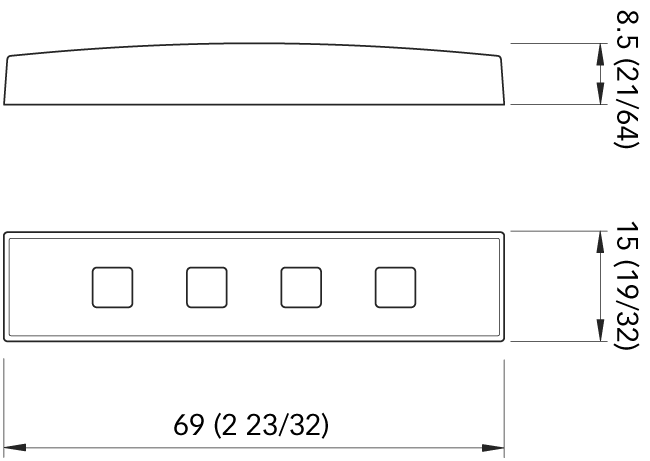

Dimensions


Frame RECT. 2 23/32″ x 19/32″
Recess      21/64″ (Thickness)


Design


Frame material      PLASTIC
Finish MIRROR POLISHED
Light colors DAYLIGHT / RED / BLU
Mounting SCREWS


Certifications



LED Protection: Spike protected ± 500V Polarity sensitive: YES
