Description
The Ely is an IP65 built in led courtesy light. It has a 39.5mm round trim composed of AISI stainless steel. This unit is available in warm and daylight led bulb colors. It is suitable for ceiling and wall installation with an effective illumination and optimal chromatic yield.
Specifications
Specifications
| Power type |
Constant Voltage |
| Light source |
1 x POWER LED |
| Supply |
10 ÷ 30 V |
| Power consumption |
3 W |
| Current consumption |
0.125 A @ 24 V |
| Average lifetime |
50,000 h |
| Dimmable |
Yes |
| IP security degree |
65 |
Dimensions
| Frame |
Ø 1 9/19″ |
| Recess |
1 23/64″ |
| Hole |
Ø 1 3/16″ |
Design
| Frame material |
AISI 316 S/STEEL |
| Finish |
CHROMED / SATIN |
| Light colors |
DAYLIGHT / WARM WHITE |
| Mounting |
SPRINGS |
Photometric data
| DAYLIGHT |
3800-4200 °K |
| Angle |
40° |
| Light flow |
84 lm |
| Light Beam- distance 1 m |
Ø 0.74 m |
115 lux |
| Light Beam- distance 2 m |
Ø 1.47 m |
28.8 lux |
| Light Beam – distance 3 m |
Ø 2.21 m |
12.8 lux |
| WARM WHITE |
2800-3100 °K |
| Angle |
40° |
| Light flow |
75 lm |
| Light Beam- distance 1 m |
Ø 0.74 m |
102.7 lux |
| Light Beam- distance 2 m |
Ø 1.47 m |
25.7 lux |
| Light Beam – distance 3 m |
Ø 2.21 m |
11.4 lux |
Certifications

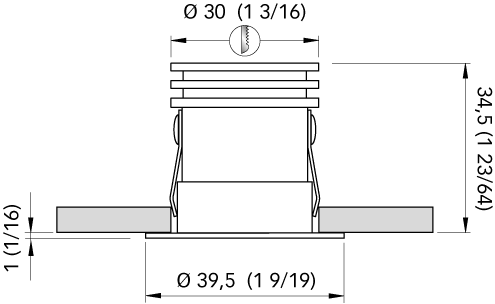

Dimensions in mm (inches)
LED Protection: Spike protected ± 500V
