Modular 2D

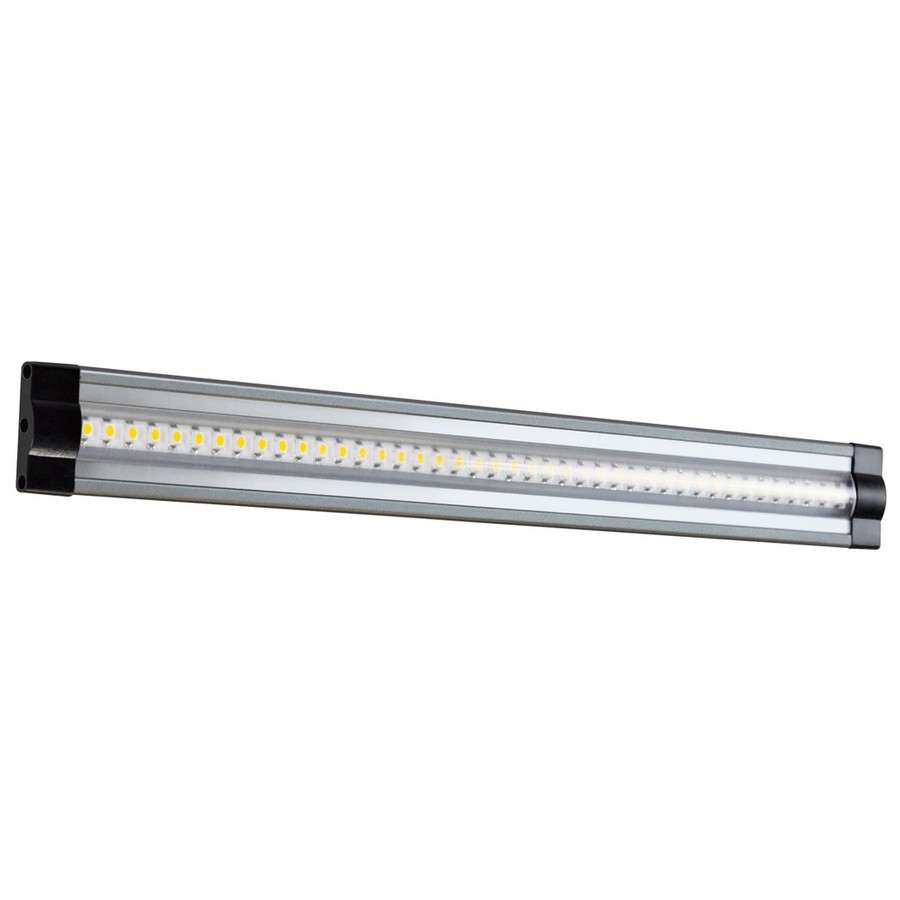

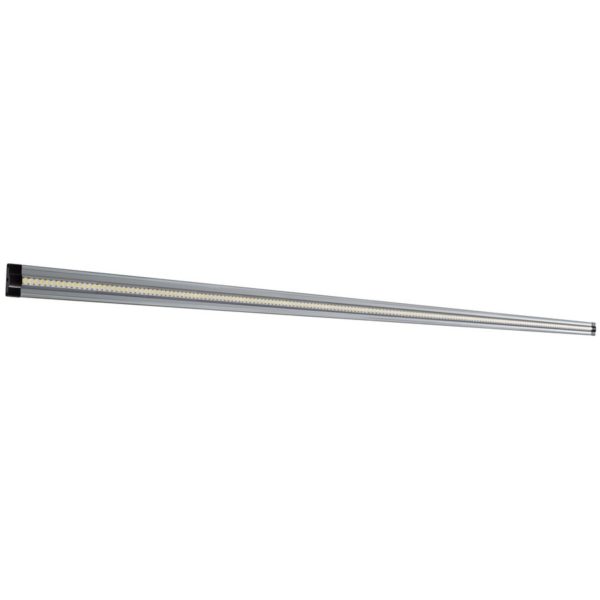

The Modular is an IP40 ultra flat LED bar light. It is available in 3 different lengths and composed of aluminum. It is available in warm led bulb color.

Additional information

Weight N/A
Dimensions 1 × 1 × 1 in

Modular 2D 100 LED Warm 10-15V 1P, Modular 2D 50 LED Warm 10-15V



Power type Constant Voltage
Light source 42 x LED
Supply 10 ÷ 15 V/20 ÷ 30 V
Power consumption 3 W
Current consumption      0.25 @ 12V A/ 0.13A @ 24V
Average lifetime 50,000 h
Dimmable Yes
IP security degree 40


Frame material      ALLUMINIUM
Finish SATIN
Light colors  WARM WHITE

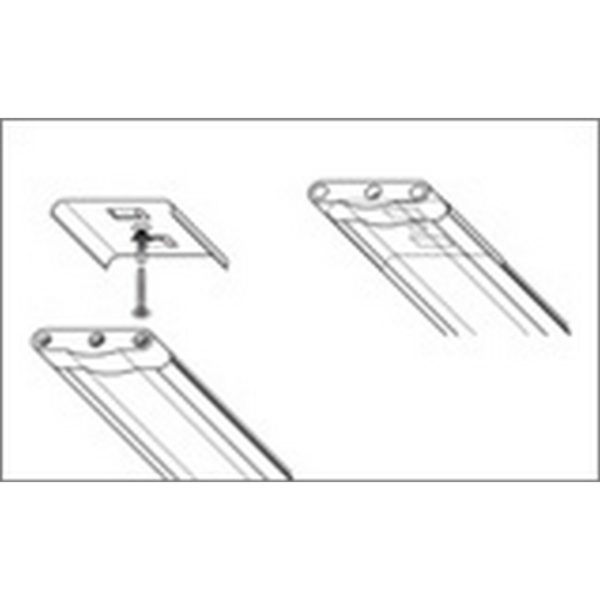

Mounting SCREWS



 WARM WHITE 2900-3100 °K
Light flow 200 lm
Efficiency 73 lm/W
LED Protection: Spike protected ± 500V Polarity sensitive: YES
