Blake 80 4W


SKU: FAMP1982X12CA00-FAMP1982X02CF00-FAMP1982X02CE00 Categories: , ,

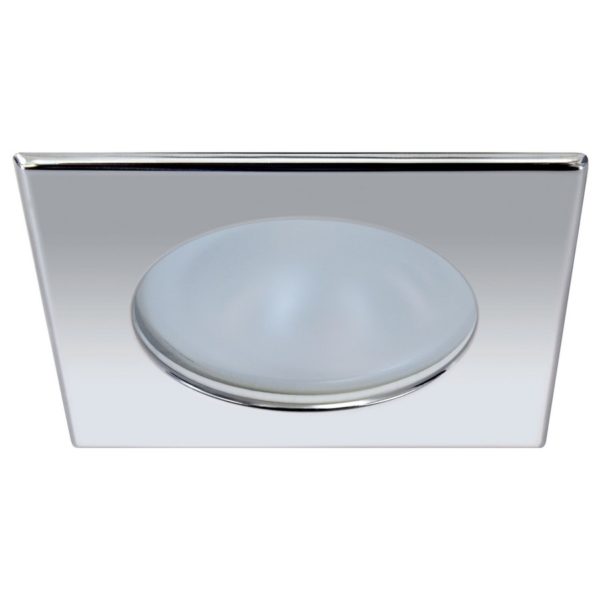

The Blake 80 is a recessed Power LED downlight. It has an 80mm square trim composed of AISI 316 stainless steel and a frosted lens. It is available with a warm led bulb. This version of Blake is not dimmable. For a dimmable version please see our Blake XP series of lighting.

Additional information

Weight 0.3 lbs
Dimensions 0.5 × 0.5 × 0.5 in

Blake Day S-Steel 4W 1030V, Blake Day Satin 4W 1030V, Blake Warm S-Steel 4W 1030V, Blake Red S.Steel 4W 1030V


Power type Constant Voltage
Light source LED
Supply 10 ÷ 30 V
Power consumption 4 W
Current consumption 0.17 A @ 24V
Average lifetime 50,000 h
IP security degree 66
Frame SQ; 3 5/32″
Recess 1 27/64″
Hole Ø 2 5/8″
Frame material AISI 316 S/STEEL
Light colors WARM WHITE
Mounting SPRINGS
 WARM WHITE 2800-3100 °K
Angle 70°
Light flow 240 lm
Light Beam – distance 1 m Ø1.48 m 187.4 lux
Light Beam- distance 2 m Ø 2.97 m 46.9 lux
Light Beam- distance 3 m Ø 4.45 m 20.8 lux
