BTQ 300 DC Bow Thruster
$9,965.00 – $11,240.00
Description

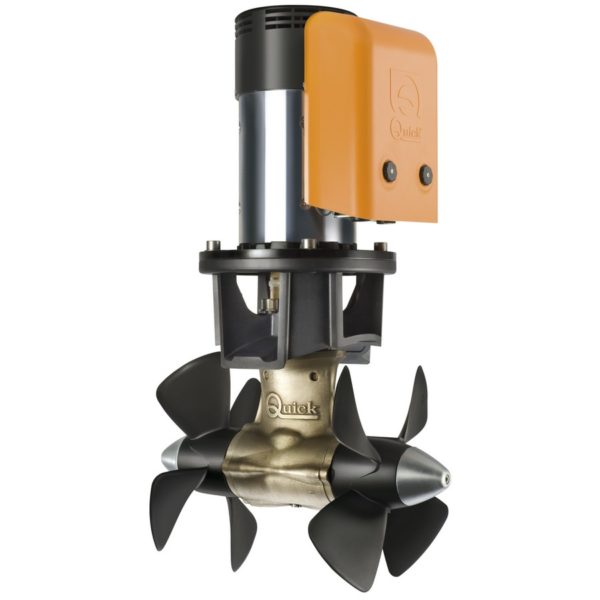

The Quick BTQ 300 is a double counter rotating propeller bow thruster composed of a sturdy composite material. Some additional features of this unit are the solenoid is protected by a sturdy composite material, the gearbox is composed of bronze, the zinc anode is independent from the gearbox which allows an easy replacement and it is also equipped with an elastic coupling. This unit is sold complete with the bow thruster and users manual.
Additional information
| Weight | N/A |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Kilogram-Force | 250 KFG, 270 KGF |
| Voltage | 24V |
Specifications
|
Model
|
BTQ 300-250 | BTQ 300-270 |
| Propulsion system | Double propeller | Double propeller |

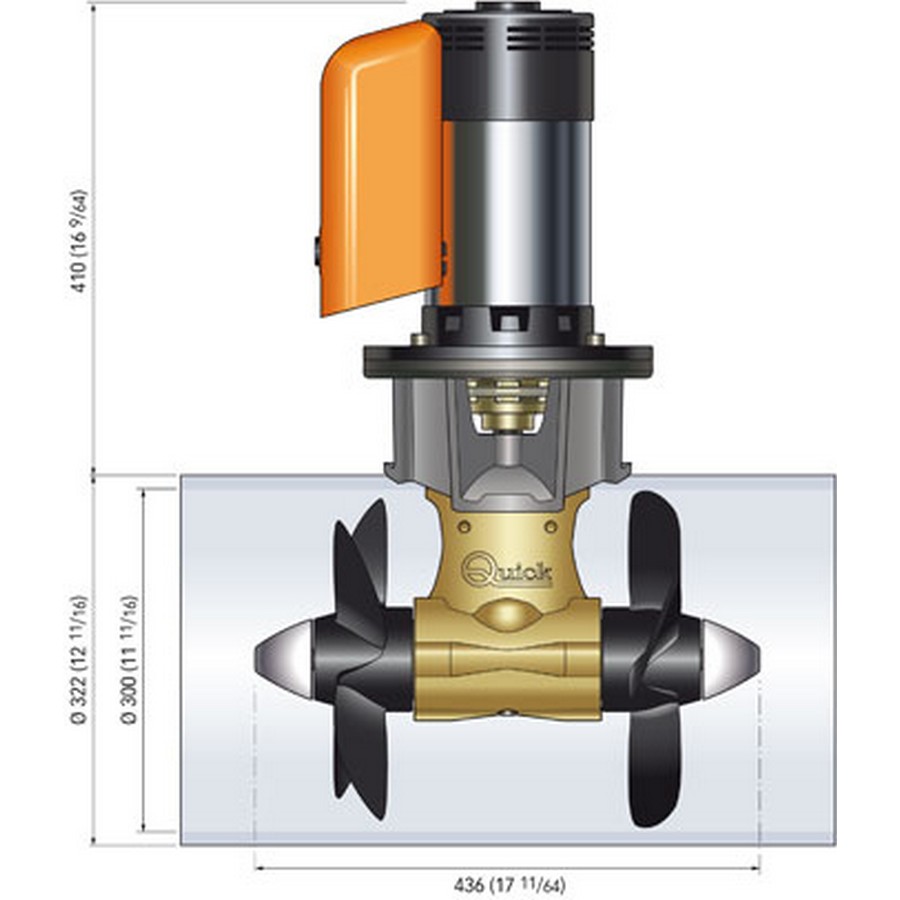

| Tunnel Diameter | 11,8″ | 11,8″ |
| Motor power | 10 Kw | 12 Kw |
| Voltage | 24 V | 24 V |
| Section of wire | 185 mm2 (AWG 350MCM) | 2×95 mm2 (2xAWG 3/0) |
| Fuse | 2×275 A | 2×325 A |
| Thrust | 250 Kgf (551 lb) | 270 Kgf (595 lb) |
| Weight | 77.2 lb | 77.2 lb |
| Limit thickness values of the tubes | min. 5/16″ – max 1/2″ | min. 5/16″ – max 1/2″ |
| Boat size | 65 – 85 ft |
75 – 99 ft
|
