BTQ 250 DC Bow Thruster

$7,345.00$9,130.00

Clear
SKU: FGBT250 Categories: , Tag:

Description

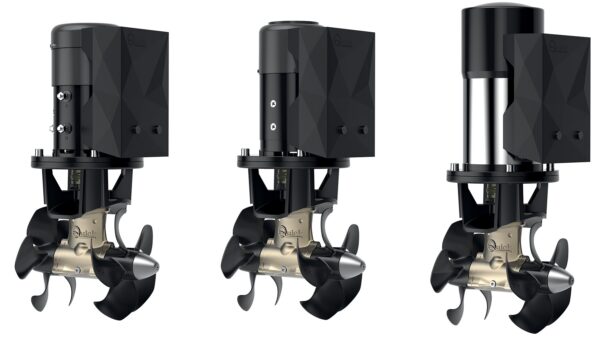

The Quick BTQ 250 is a double counter rotating propeller bow thruster composed of a sturdy composite material. Some additional features of this unit are the solenoid is protected by a sturdy composite material, the gearbox is composed of bronze, the zinc anode is independent from the gearbox which allows an easy replacement and it is also equipped with an elastic coupling. This unit is sold complete with the bow thruster and users manual.

Additional information

Weight N/A
Dimensions 5 × 5 × 5 in
Kilogram-Force

120 KGF, 140 KGF, 240 KGF

Voltage

12V, 24V

Specifications

Model
BTQ 250-120 BTQ 250-140 BTQ 250-240
Propulsion system Double propeller Double propeller Double propeller
Tunnel Diameter 9,85″ 9,85″ 9,85″
Motor power 6,5 Kw 8 Kw 10 Kw
Voltage 12/24 V 24 V 24 V
Section of wire 2 x 95 mm2  (2 x AWG 3/0) / 120 mm2 (AWG 4/0) 120 mm2 (AWG 4/0) 185 mm2 (AWG 350MCM)
Fuse 2 x 355 A / 400 A 400 A 2×300 A
Thrust 120 Kgf (308/ lb) 140 Kgf (309 lb) 240 Kgf (529 lb)
Weight 87 lb 80,4 lb 77.2 lb
Limit   thickness values of the tubes min. 9/32″ – max   15/32″ min. 9/32″ – max   15/32″ min. 9/32″ – max   15/32″
Boat size 42 – 55 ft 45 – 59 ft 52 – 69 ft
