QB-Fixed 1L

$381.00

Description

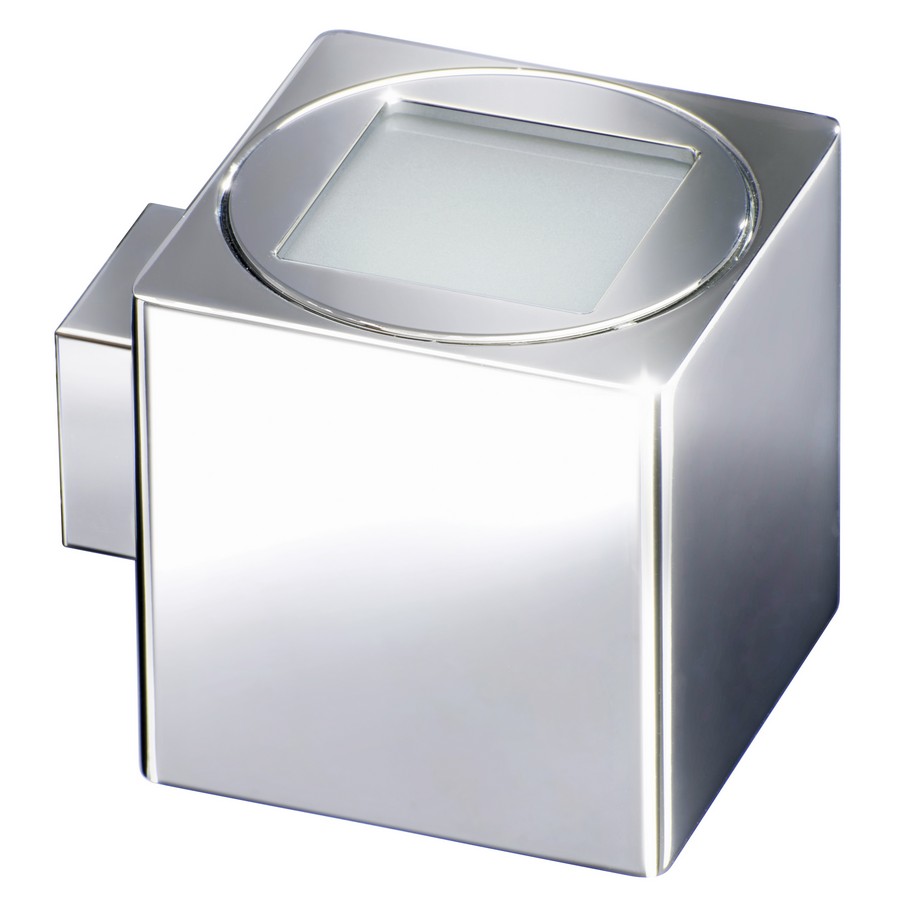

The QB-Fixed is an IP40 fixed wall light. It is available with 1 or 2 lights in warm or daylight bulbs colors. It is composed of chromed aluminum for a nice polished finish.

Additional information

Weight N/A
Dimensions 2 × 2 × 2 in
Light Color

2W Daylight, 2W Warm, 4W Warm, 4W Daylight

Trim

Chrome

Specifications

Specifications 2W


Power type Constant Voltage
Light source 22 x LED
Supply 10 ÷ 30 V
Power consumption 2 W
Current consumption      0.08 A @ 24V
Average lifetime 50,000 h
Dimmable Yes
IP security degree 40


Design


Frame material      ALUMINUM
Finish CHROMED
Light colors DAYLIGHT / WARM WHITE
Mounting SCREWS


Photometric data


 DAYLIGHT 2W 3800-4200 °K
Angle 40°
Light flow 95 lm
Light Beam – distance 1 m Ø 0.73 m 134.7 lux
Light Beam- distance 2 m Ø 1.45 m 33.7 lux
Light Beam- distance 3 m Ø 2.18 m 15 lux


 WARM WHITE 2W 2800-3100 °K
Angle 40°
Light flow 85 lm
Light Beam- distance 1 m Ø 0.73 m 122.5 lux
Light Beam- distance 2 m      Ø 1.45 m 30.6 lux
Light Beam- distance 3 m Ø 2.18 m 13.6 lux





Specifications 4W


Power type Constant Voltage
Light source 1 x POWER LED
Supply 10 ÷ 30 V
Power consumption 4 W
Current consumption      0.17 A @ 24V
Average lifetime 50,000 h
Dimmable Yes
IP security degree 40


Design


Frame material      ALUMINUM
Finish CHROMED
Light colors DAYLIGHT / WARM WHITE
Mounting SCREWS


Photometric data


DAYLIGHT 4W 3800-4200 °K
Angle 40°
Light flow 186 lm
Efficiency 47 lm/W
Light Beam- distance 1 m Ø 0.7 m 212 lux
Light Beam- distance 2 m      Ø 1.41 m 53 lux
Light Beam- distance 3 m Ø 2.11 m 23.6 lux


 WARM WHITE 4W 2800-3100 °K
Angle 40°
Light flow 179 lm
Efficiency 45 lm/W
Light Beam- distance 1 m Ø 0.7 m 212 lux
Light Beam- distance 2 m      Ø 1.41 m 53 lux
Light Beam- distance 3 m Ø 2.11 m 23.6 lux


Certifications

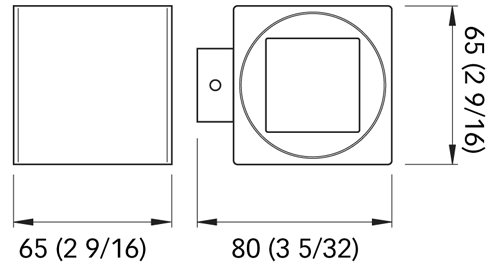

Dimensions in mm (inches)

LED Protection: Spike protected ± 500V Polarity sensitive: YES
