Challenger 30
$1,683.00 – $1,815.00
Description

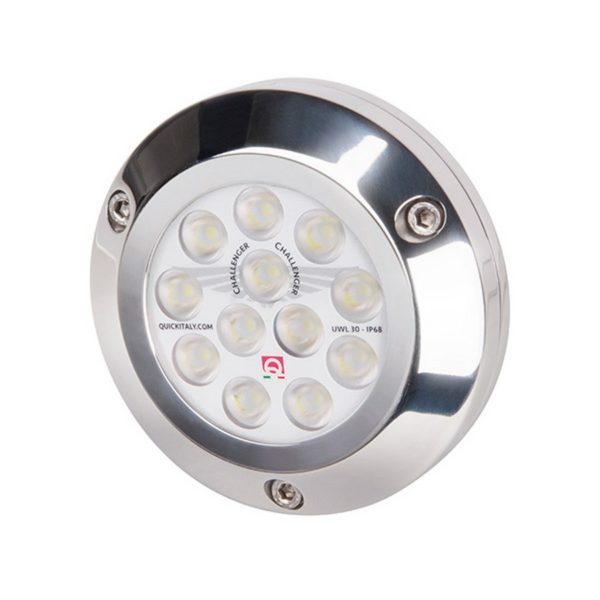

The Challenger 30 is an IP68 led light for underwater installations.
Additional information
| Weight | N/A |
|---|---|
| Dimensions | 1 × 1 × 1 in |
| Bulb Color | Blue |
| Voltage | 10-15V, 20-30V |
| Trim | Satinless |
Specifications
Specifications
| Power type | Constant Voltage |
| Light source | LED |
| Supply | 10 ÷ 30 V |
| Power consumption | 30 W |
| Current consumption | 1.24 A @ 24V |
| Average lifetime | 50,000 h |
| IP security degree | 68 |
Dimensions
| Frame | Ø 4 1/4″ |
Design
| Frame material | AISI 316 S/STEEL |
| Finish | CHROMED |
| Light colors | COOL WHITE/BLUE/RGBW |
| Mounting | Surface |
Photometric data
| COOL WHITE | 5000-6000 °K | |
| Light flow | 3100 lm | |
| Efficiency | 107 lm/W | |
Dimensions in mm (inches)
DIMMERS
LDIM BUS 2CH
LDIM BUS 2CH
Basic item, for power and functionality alternatives, consult section ACCESSORIES
LED Protection: Spike protected ± 500V Polarity sensitive: YES
