Ted V 4W IP66
$0.00 – $183.70
Description

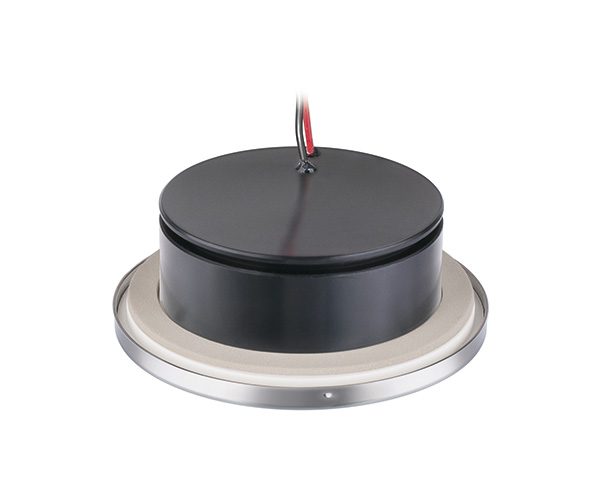

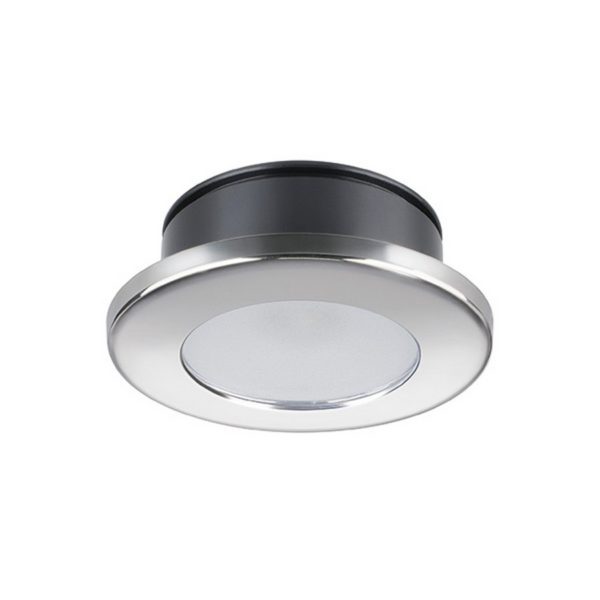

The Ted V is an IP66 recessed Power LED downlight. It has an 72mm round trim composed of AISI 316 stainless steel and a frosted lens.
Additional information
| Weight | 0.25 lbs |
|---|---|
| Dimensions | 0.25 × 0.25 × 0.25 in |
| Bulb Color | Daylight, Warm, Warm/Red, Warm/Blue, Red, Blue, Daylight/Blue |
| Trim Finish | White, Satin, Stainless Steel |
Specifications
Specifications
| Power type | Constant Voltage |
| Light source | HIGH LUMINOSITY |
| Supply | 10 ÷ 30 V |
| Power consumption | 4 W |
| Current consumption | 0.16 A @ 24V |
| Average lifetime | 50,000 h |
| IP security degree | 66 |
Dimensions
| Frame | Ø 2 53/74″ |
| Recess | 51/64″ |
| Hole | Ø 2 1/8″ |
Design
| Frame material | AISI 316 S/STEEL |
| Finish | MIRROR POLISHED / SATIN / WHITE 9010 |
| Light colors | DAYLIGHT / WARM WHITE |
| Mounting | SCREWS |
Photometric data
| DAYLIGHT | 3800-4200 °K | |
| Angle | 95° | |
| Light flow | 190 lm | |
| Efficiency | 48 lm/W | |
| Light Beam – distance 1 m | Ø 2.11 m | 87.2 lux |
| Light Beam- distance 2 m | Ø 4.21 m | 21.8 lux |
| Light Beam- distance 3 m | Ø6.32 m | 9.7 lux |
| WARM WHITE | 2800-3100 °K | |
| Angle | 95° | |
| Light flow | 180 lm | |
| Efficiency | 45 lm/W | |
| Light Beam – distance 1 m | Ø 2.11 m | 80.7 lux |
| Light Beam- distance 2 m | Ø 4.21 m | 20.2 lux |
| Light Beam- distance 3 m | Ø 6.32 m | 9 lux |
Certifications
   |
Dimensions in mm (inches)
DIMMERS
LDIM BUS 2CH
LDIM BUS 2CH
Basic item, for power and functionality alternatives, consult section ACCESSORIES
LED Protection: Spike protected ± 500V Polarity sensitive: YES
