Ted CT IP

Ted C IP Dimensions

Ted CT 2W IP66

Bulb Color

Trim Finishes

Clear

Dear Customer,

To place an order or request information, please contact us.
We will put you in touch with the distributor nearest you.

SKU: Ted CT IP Categories: LED Lighting, Lighting, Recessed Downlights

Description

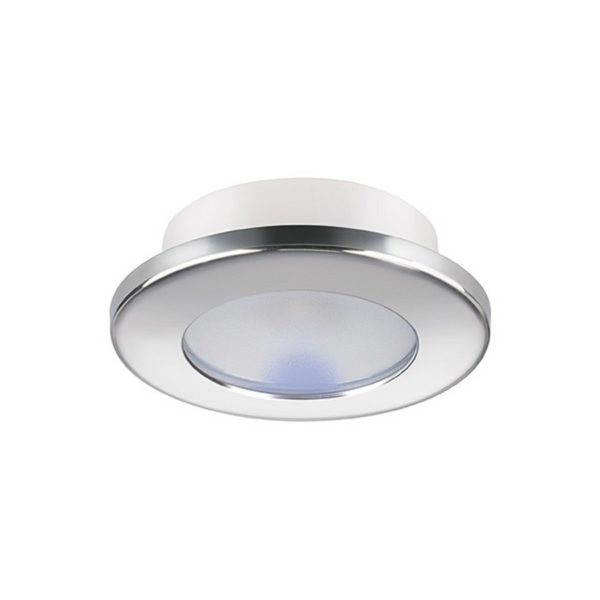

The Ted Club Dual is an IP66 recessed Power LED downlight. It has an 72mm round trim composed of AISI 316 stainless steel and a frosted lens.

Additional information

Weight	N/A
Dimensions	0.25 × 0.25 × 0.25 in
Bulb Color	Warm, Daylight, Red
Trim Finishes	White, Satin, Stainless Steel

Specifications

Specifications

Power type	Constant Voltage
Light source	HIGH LUMINOSITY
Supply	10 ÷ 30 V
Power consumption	2 W
Current consumption	0.09 A @ 24V
Average lifetime	50,000 h
IP security degree	66

Dimensions

Frame	Ø 2 53/74″
Recess	35/64″
Hole	Ø 2 1/8″

Design

Frame material	AISI 316 S/STEEL
Finish	MIRROR POLISHED / SATIN / WHITE 9010
Light colors	DAYLIGHT / WARM WHITE
Mounting	SCREWS

Photometric data

DAYLIGHT	3800-4200 °K
Angle	100°
Light flow	115 lm
Efficiency	58 lm/W
Light Beam – distance 1 m	Ø 2.43 m	44.4 lux
Light Beam- distance 2 m	Ø 4.85 m	11.1 lux
Light Beam- distance 3 m	Ø7.28 m	4.9 lux

WARM WHITE	2800-3100 °K
Angle	100°
Light flow	105 lm
Efficiency	58 lm/W
Light Beam – distance 1 m	Ø 2.43 m	40.8 lux
Light Beam- distance 2 m	Ø 4.85 m	10.2 lux
Light Beam- distance 3 m	Ø 7.28 m	4.5 lux

Certifications

LED Protection: Spike protected ± 500V Polarity sensitive: YES
