Description

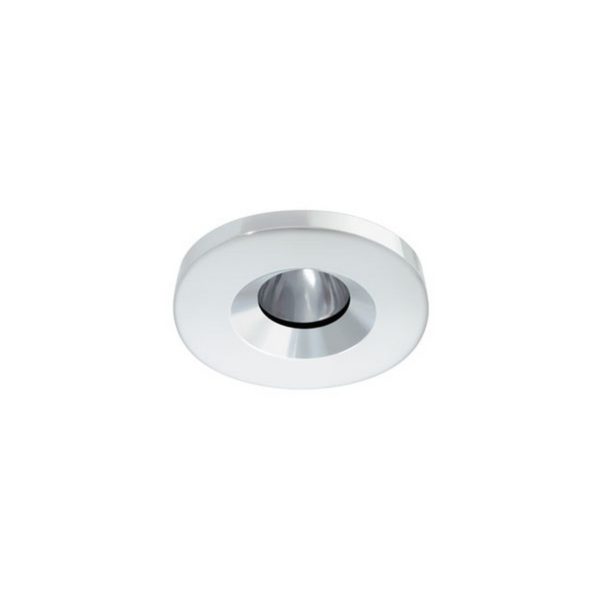

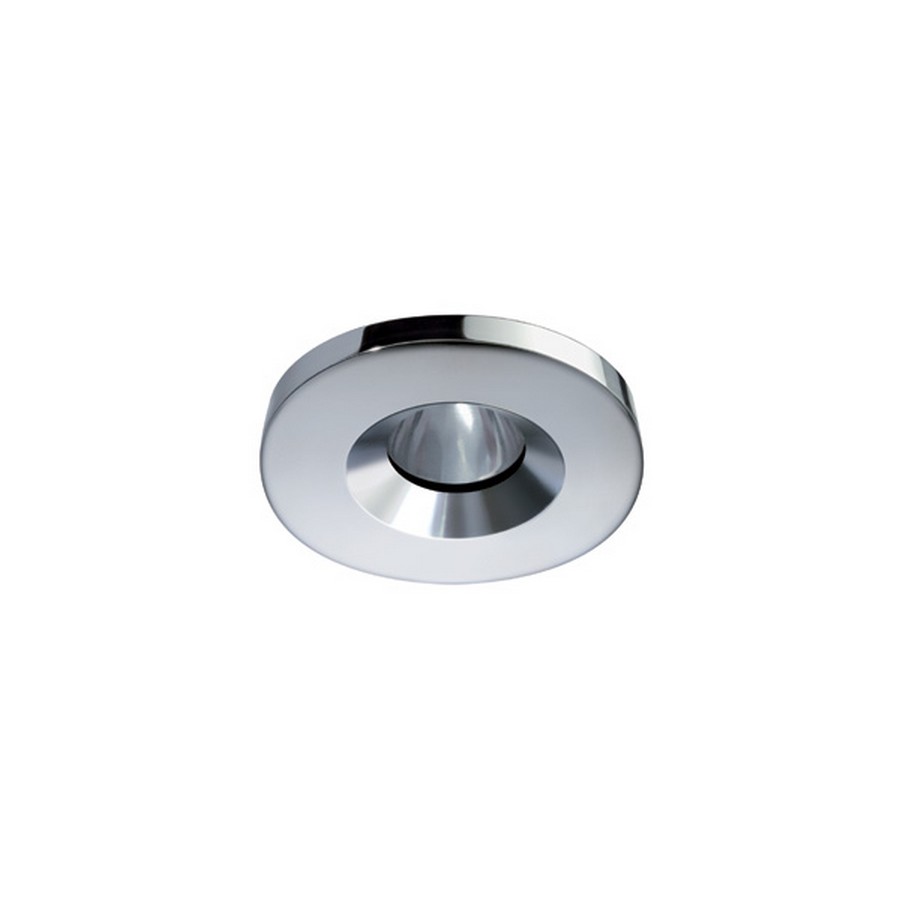

The Jo is an IP65 recessed Power LED downlight. It has a 42mm round trim composed of AISI stainless steel and a frosted lens. It is available in warm and daylight led bulb colors.
Specifications
Specifications
| Power type |
Constant Voltage |
| Light source |
1 x POWER LED |
| Supply |
10 ÷ 30 V |
| Power consumption |
1,5 W |
| Current consumption |
0.06 A @ 24V |
| Average lifetime |
50,000 h |
| IP security degree |
65 |
Dimensions
| Frame |
Ø 1 21/32″ |
| Recess |
3/4″ |
| Hole |
Ø 63/64″ |
Design
| Frame material |
AISI 316 S/STEEL |
| Finish |
MIRROR POLISHED / SATIN / WHITE 9010 |
| Light colors |
DAYLIGHT / WARM WHITE |
| Mounting |
SCREWS |
Photometric data
| DAYLIGHT |
3800-4200 °K |
| Angle |
15° |
| Light flow |
62 lm |
| Efficiency |
41.3 lm/W |
| Light Beam – distance 1 m |
Ø 0.20 m |
692.4 lux |
| Light Beam- distance 2 m |
Ø 0.41 m |
173.1 lux |
| Light Beam- distance 3 m |
Ø 0.61 m |
76.9 lux |
| WARM WHITE |
2800-3100 °K |
| Angle |
15° |
| Light flow |
57 lm |
| Efficiency |
38 lm/W |
| Light Beam- distance 1 m |
Ø 0.20 m |
637 lux |
| Light Beam- distance 2 m |
Ø 0.41 m |
159 lux |
| Light Beam – distance 3 m |
Ø 0.61 m |
71 lux |
Certifications

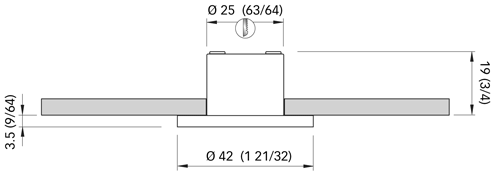

Dimensions in mm (inches)
LED Protection: Spike protected ± 500V Polarity sensitive: NO
