Tina
Dear Customer,
To place an order or request information, please contact us.
We will put you in touch with the distributor nearest you.
Description

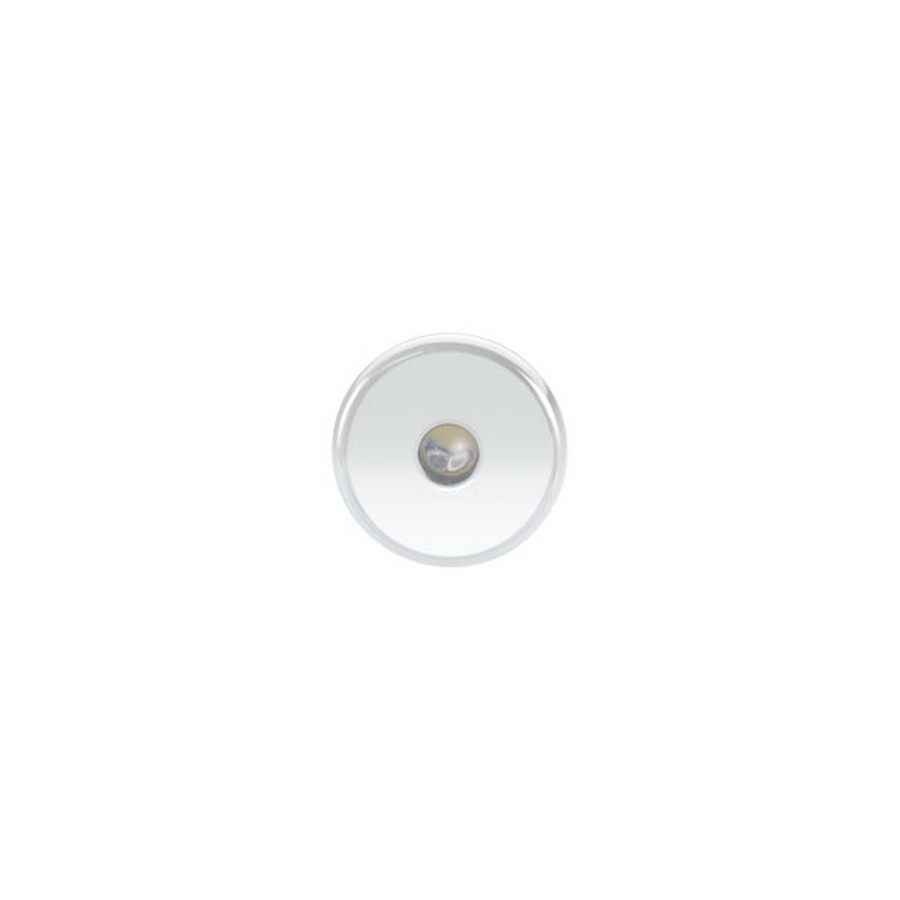

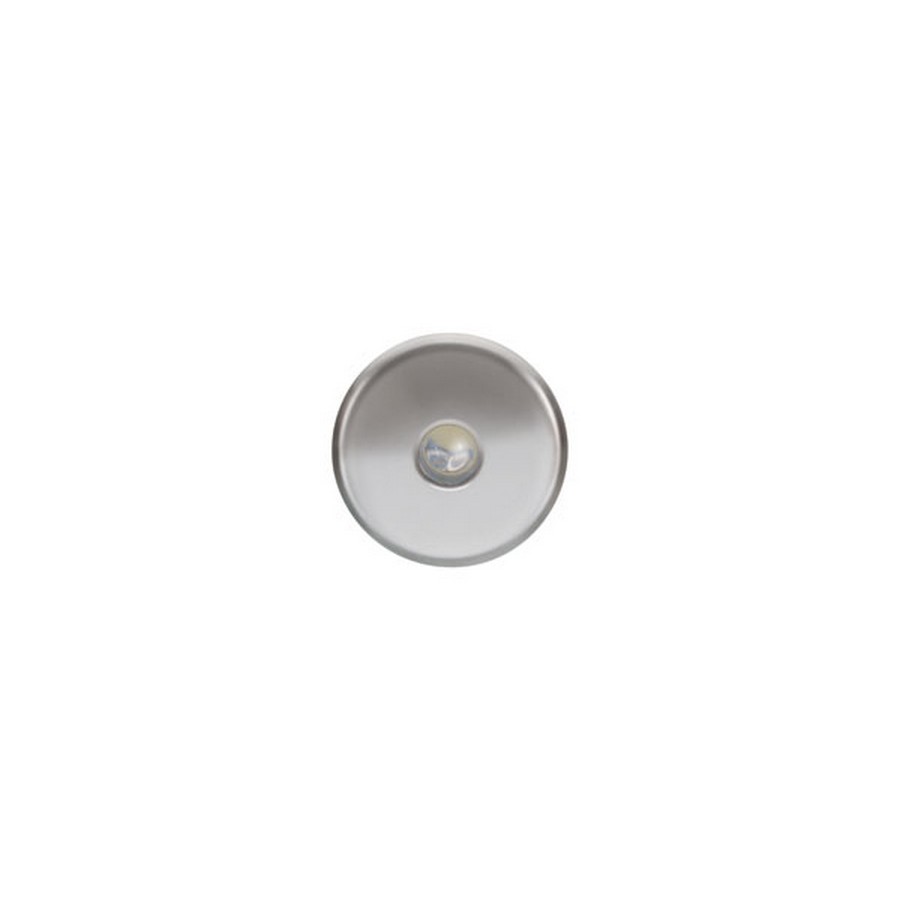

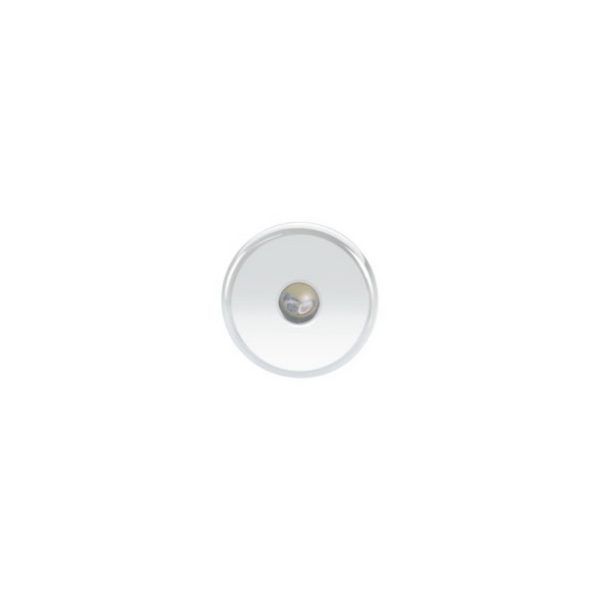

The Tina is an IP65 LED courtesy light. It has a 20mm round trim composed of AISI stainless steel. This unit is available in warm, daylight, blue and red LED bulb colors.
Additional information
| Weight | N/A |
|---|---|
| Dimensions | 0.25 × 0.25 × 0.25 in |
| Light Color | Blue, Daylight, Red, Warm |
| Trim | Stainless Steel, Satin, White |
Specifications
Specifications
| Power type | Constant Voltage |
| Light source | 1 x LED |
| Supply | 10 ÷ 30 V |
| Power consumption | 0.48 W @ 24 V |
| Current consumption | 0.02 A @ 12 V / 24 V |
| Average lifetime | 50,000 h |
| IP security degree | 65 |

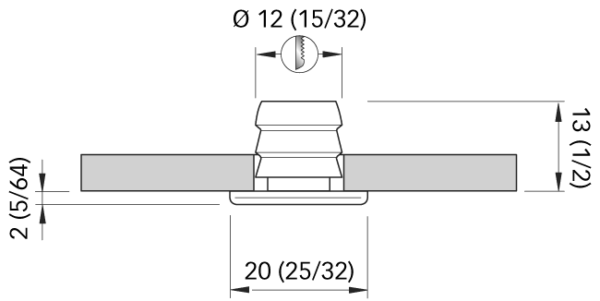

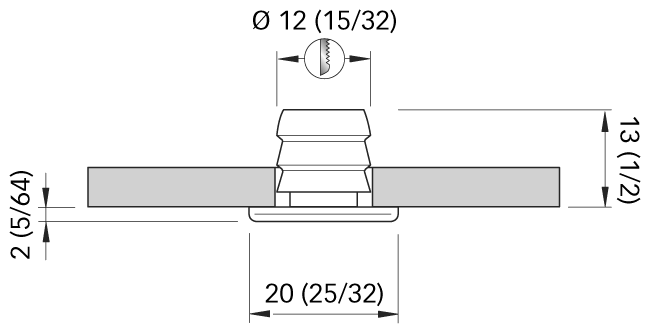

Dimensions
| Frame | Ø 25/32″ |
| Recess | 1/2″ |
| Hole | Ø 15/32″ |
Design
| Frame material | AISI 316 S/STEEL |
| Finish | MIRROR POLISHED / SATIN / WHITE 9010 |
| Light colors | DAYLIGHT / WARM WHITE / RED / BLU |
| Mounting | ADHESIVE |
Certifications
   |
LED Protection: Spike protected ± 500V Polarity sensitive: NO
