Description

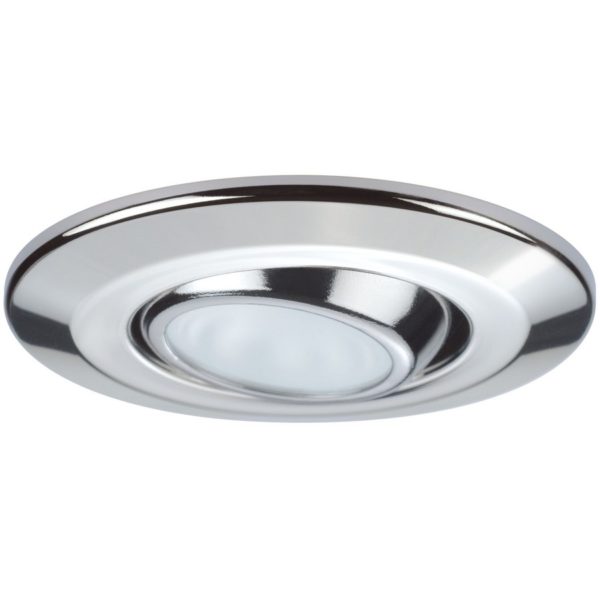

The Lucille is an IP40 recessed Power LED adjustable downlight. It has a 65mm trim composed of AISI stainless steel and a frosted lens. It is available in warm and daylight led bulb colors.
Specifications
Specifications
| Power type |
Constant Voltage |
| Light source |
1 x POWER LED |
| Supply |
10 ÷ 30 V |
| Power consumption |
1,5 W |
| Current consumption |
0.06 A @ 24V |
| Average lifetime |
50,000 h |
| IP security degree |
40 |
Dimensions
| Frame |
Ø 2 9/16″ |
| Recess |
1 19/32″ |
| Hole |
Ø 2 1/16″ |
Design
| Frame material |
AISI 316 S/STEEL |
| Finish |
MIRROR POLISHED / SATIN / WHITE 9010 |
| Light colors |
DAYLIGHT / WARM WHITE |
| Mounting |
SPRINGS |
| Adjustable |
Yes |
Photometric data
| DAYLIGHT |
3800-4200 °K |
| Angle |
30° |
| Light flow |
42 lm |
| Efficiency |
28 lm/W |
| Light Beam – distance 1 m |
Ø 0.57 m |
78.1 lux |
| Light Beam- distance 2 m |
Ø 1.15 m |
19.5 lux |
| Light Beam- distance 3 m |
Ø 1.72 m |
8.7 lux |
| WARM WHITE |
2800-3100 °K |
| Angle |
30° |
| Light flow |
40 lm |
| Efficiency |
26.6 lm/W |
| Light Beam – distance 1 m |
Ø 0.57 m |
73.7 lux |
| LLight Beam – distance 2 m |
Ø 1.15 m |
18.4 lux |
| Light Beam- distance 3 m |
Ø 1.72 m |
8.2 lux |
Certifications

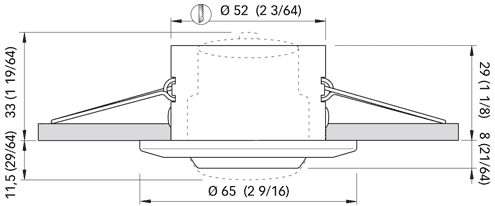

Dimensions in mm (inches)
DIMMERS
Basic item, for power and functionality alternatives, consult section ACCESSORIES
LED Protection: Spike protected ± 500V Polarity sensitive: NO
