Till
Dear Customer,
To place an order or request information, please contact us.
We will put you in touch with the distributor nearest you.
Description

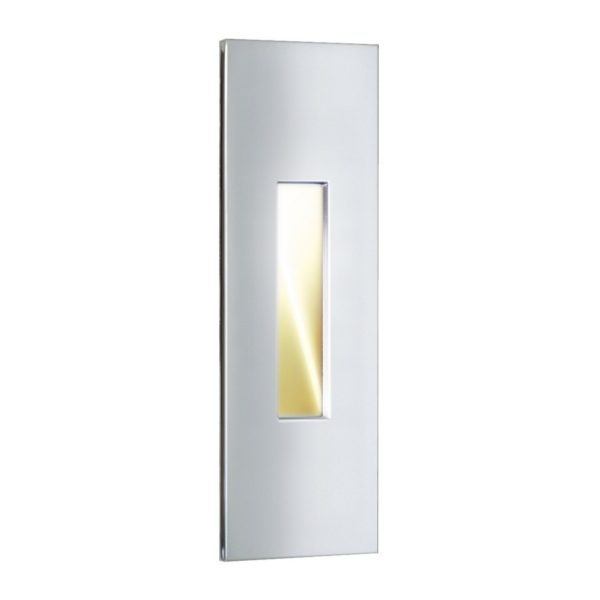

The Till is an IP40 LED courtesy light. It has a 60mm x21mm rectangular cover composed of AISI stainless steel. This unit is available in daylight, blue, and red LED bulb colors.
Additional information
| Weight | N/A |
|---|---|
| Dimensions | 0.25 × 0.25 × 0.25 in |
| Light Color | Blue, Daylight, Red |
| Trim | Stainless Steel |
Specifications
Specifications
| Power type | Constant Voltage |
| Light source | 2 x LED |
| Supply | 10 ÷ 30 V |
| Power consumption | 0.50 W @ 24 V |
| Current consumption | 0.02 A |
| Average lifetime | 50,000 h |
| IP security degree | 40 |

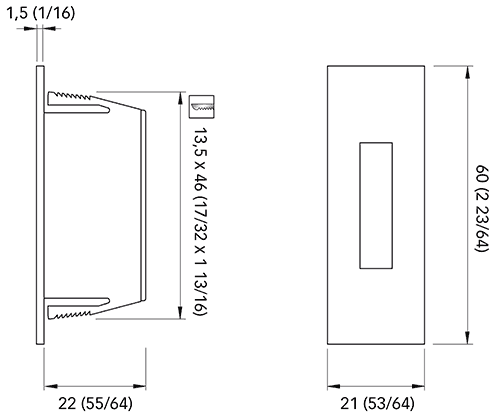

Dimensions
| Frame | RECT. 53/64″ x 2 23/64″ |
| Recess | 55/64″ |
| Hole | RECT. 1 13/16″ x 17/32″ |
Design
| Frame material | AISI 316 S/STEEL |
| Finish | MIRROR POLISHED |
| Light colors | DAYLIGHT / RED / BLU |
| Mounting | SCREWS |
Certifications
   |
LED Protection: Spike protected ± 500V Polarity sensitive: YES
